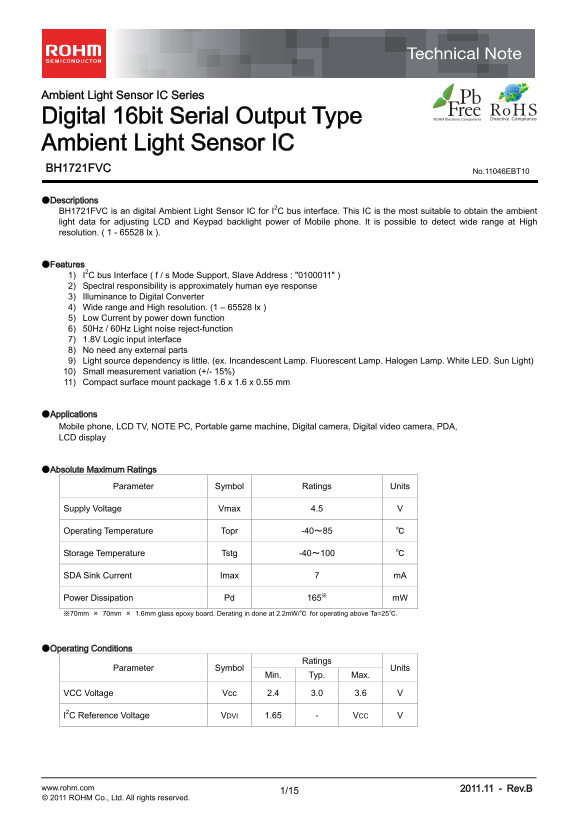

Page 1 Text Content
Ambient Light Sensor IC Series
Digital 16bit Serial Output Type Ambient Light Sensor IC BH1721FVC
No.11046EBT10
●Descriptions BH1721FVC is an digital Ambient Light Sensor IC for I2C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. It is possible to detect wide range at High resolution. ( 1 - 65528 lx ).
●Features 1) I2C bus Interface ( f / s Mode Support, Slave Address : "0100011" ) 2) Spectral responsibility is approximately human eye response 3) Illuminance to Digital Converter 4) Wide range and High resolution. (1 – 65528 lx ) 5) Low Current by power down function 6) 50Hz / 60Hz Light noise reject-function 7) 1.8V Logic input interface 8) No need any external parts 9) Light source dependency is little. (ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light) 10) Small measurement variation (+/- 15%) 11) Compact surface mount package 1.6 x 1.6 x 0.55 mm
●Applications Mobile phone, LCD TV, NOTE PC, Portable game machine, Digital camera, Digital video camera, PDA, LCD display
●Absolute Maximum Ratings
Parameter Symbol Ratings Units
Supply Voltage Vmax 4.5 V
Operating Temperature Topr -40～85 ℃
Storage Temperature Tstg -40～100 ℃
SDA Sink Current Imax 7 m A
Power Dissipation Pd 165※ m W ※70mm × 70mm × 1.6mm glass epoxy board. Derating in done at 2.2m W/℃ for operating above Ta=25℃.
●Operating Conditions
Ratings
Parameter Symbol Units
Min. Typ. Max.
VCC Voltage Vcc 2.4 3.0 3.6 V
I2C Reference Voltage VDVI 1.65 - VCC V
