ROHM Schottky Barrier Diode RB751V-40 Data Sheet
Summary
The RB751V-40 is a high-reliability Schottky barrier diode designed for efficient low current rectification in ultra-small UMD2 packages. This comprehensive technical manual provides electrical specifications, absolute maximum ratings, and detailed performance curves covering voltage drop ($V_F$), forward/reverse current limits, and thermal impedance ($R_{th}$). It is essential resource for electronics engineers and circuit designers needing a compact, high-performance diode solution for miniature applications.
Page 1 Text Content
查询RB751V-40供应商

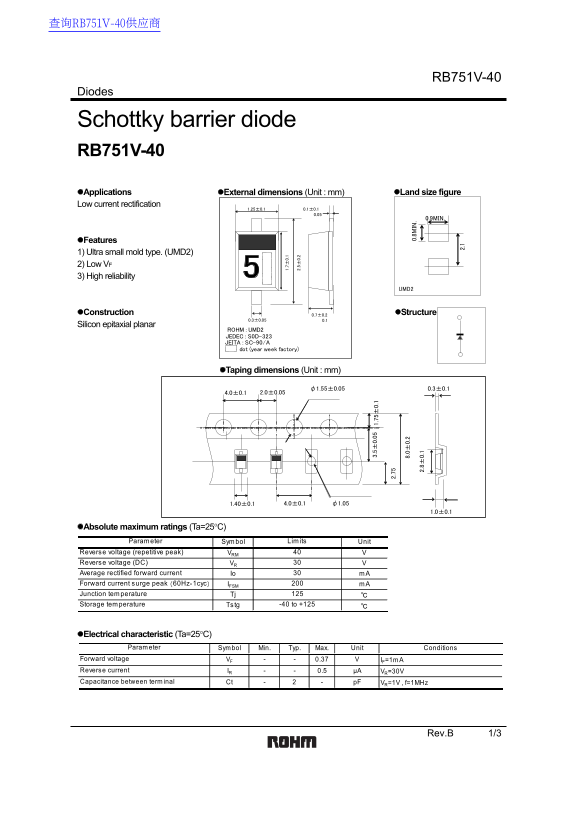

RB751V-40
Diodes
Schottky barrier diode RB751V-40
Applications External dimensions (Unit : mm) Land size figure
Low current rectification
0.9MIN.
Features 1) Ultra small mold type. (UMD2) 2) Low VF 3) High reliability
Construction 0.7±0.2 Structure
Silicon epitaxial planar
ROHM : UMD2 JEDEC : S0D-323 JEITA : SC-90/A dot (year week factory)
Taping dimensions (Unit : mm)
.8 IN
Absolute maximum ratings (Ta=25°C)
Param eter Sym bol Lim its Unit
everse voltage (repetitive peak) VRM Reverse voltage (DC) VR verage rectified forward current Io orward current surge peak （60Hz・1cyc） IFSM unction tem perature Tj torage tem perature Tstg -40 to +125
Electrical characteristic (Ta=25°C)
Param eter Sym bol Min. Typ. Max. Unit Conditions
orward voltage F VF 0.37 IF=1m Reverse current IR 0.5 µA VR=30V
een term inal Ct p F VR=1V , f=1MHz Capacitance betw
