The EM6K6 is a high-performance N-channel MOSFET transistor engineered for reliable switching applications in portable electronic equipment. Featuring low on-resistance and optimized 1.8V drive capability, this device facilitates miniaturization while maintaining efficiency. This technical summary detailing the EM6K6 provides engineers with comprehensive specifications, including absolute maximum ratings, detailed electrical characteristics, and crucial dynamic performance curves (switching time) needed for precise circuit design.

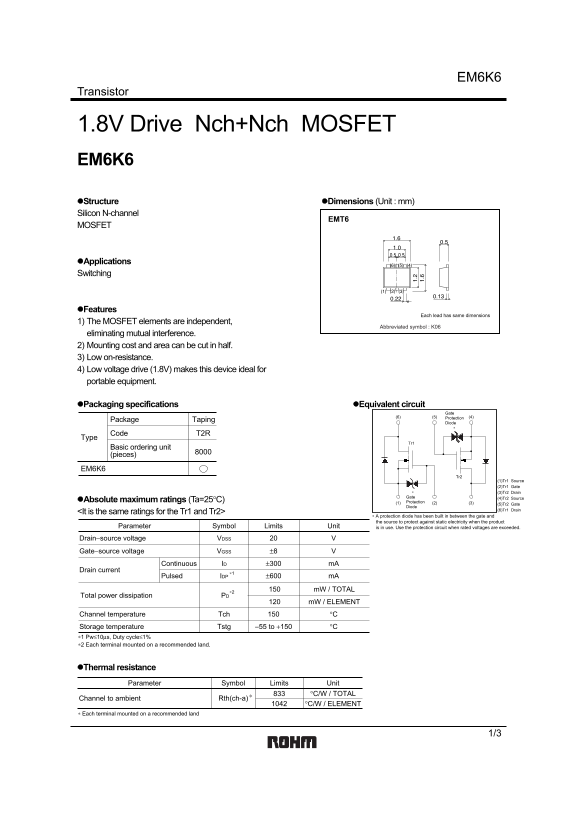

Page 1 Text Content
EM6K6
Transistor
1.8V Drive Nch+Nch MOSFET EM6K6 Structure Dimensions (Unit : mm) Silicon N-channel
MOSFET
Applications Switching
Features
Each lead has same dimensions
1) The MOSFET elements are independent,
Abbreviated symbol : K06
eliminating mutual interference. 2) Mounting cost and area can be cut in half. 3) Low on-resistance. 4) Low voltage drive (1.8V) makes this device ideal for portable equipment.
Packaging specifications Equivalent circuit
Protection (4)(5)(6)
Package Taping
Diode
Code T2R
Basic ordering unit (pieces)
EM6K6
(1)Tr1 Source (2)Tr1 Gate (3)Tr2 Drain
Gate (4)Tr2 Source
Absolute maximum ratings (Ta=25°C) Protection
(1) (2) (3) (5)Tr2 Gate Diode
(6)Tr1 Drain
<It is the same ratings for the Tr1 and Tr2>
∗ A protection diode has been built in between the gate and the source to protect against static electricity when the product
Parameter Symbol Limits Unit is in use. Use the protection circuit when rated voltages are exceeded.
Drain−source voltage VDSS Gate−source voltage VGSS ±8
Continuous ID ±300 m A
Drain current
Pulsed IDP ±600 m A
m W / TOTAL
Total power dissipation PD
m W / ELEMENT120
Channel temperature Tch °C
Storage temperature Tstg −55 to +150 °C ∗1 Pw≤10µs, Duty cycle≤1% ∗2 Each terminal mounted on a recommended land.
Thermal resistance
Parameter Symbol Limits Unit
°C/W / TOTAL
Channel to ambient Rth(ch-a)
°C/W / ELEMENT1042
∗ Each terminal mounted on a recommended land
Page Summary Contents For ROHM EM6K6 Data Sheet Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 4 |
| File Size | 103.25 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I reduce mounting costs and area when using this MOSFET?
The device allows for methods that can cut both the mounting cost and required area in half.
What is the recommended protection measure for static electricity?
Use the built-in protection circuit, which protects against static electricity when rated voltages are exceeded.
What safety precautions must I take during circuit design?
Designers must carefully consider derating characteristics and allow for sufficient safety features like extra margin or anti-flammability.
