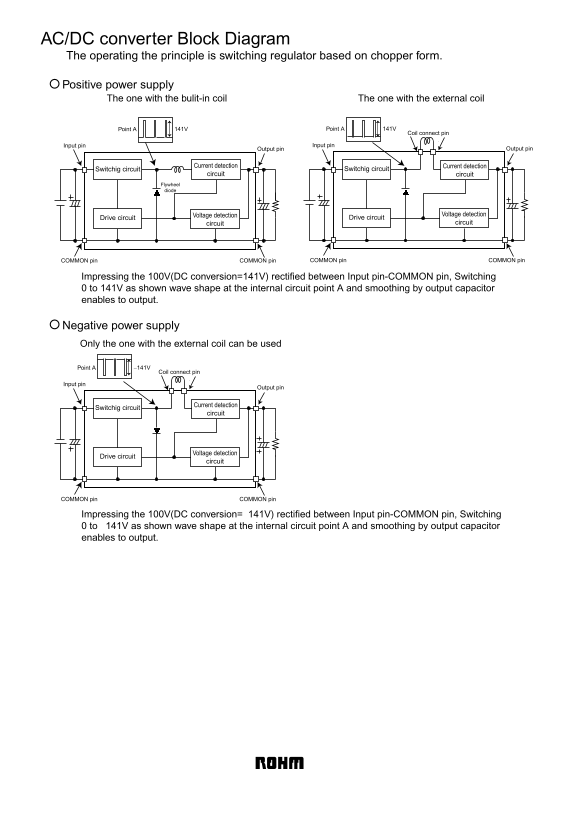

AC/DC converter Block Diagram The operating the principle is switching regulator based on chopper form.
Positive power supply
The one with the bulit-in coil The one with the external coil
Point A 141V Point A 141V
Coil connect pin
Input pin Input pin
Output pin Output pin
Current detection Current detection
Switchig circuit Switchig circuit
circuit circuit
Flywheel diode
Voltage detection Voltage detection
Drive circuit Drive circuit
circuit circuit
COMMON pin COMMON pin COMMON pin COMMON pin
Impressing the 100V(DC conversion=141V) rectified between Input pin-COMMON pin, Switching 0 to 141V as shown wave shape at the internal circuit point A and smoothing by output capacitor enables to output.
Negative power supply Only the one with the external coil can be used
Point A −141V
Coil connect pin
Input pin
Output pin
Current detection
Switchig circuit
circuit
Voltage detection
Drive circuit
circuit
COMMON pin COMMON pin
Impressing the 100V(DC conversion= 141V) rectified between Input pin-COMMON pin, Switching 0 to 141V as shown wave shape at the internal circuit point A and smoothing by output capacitor enables to output.
