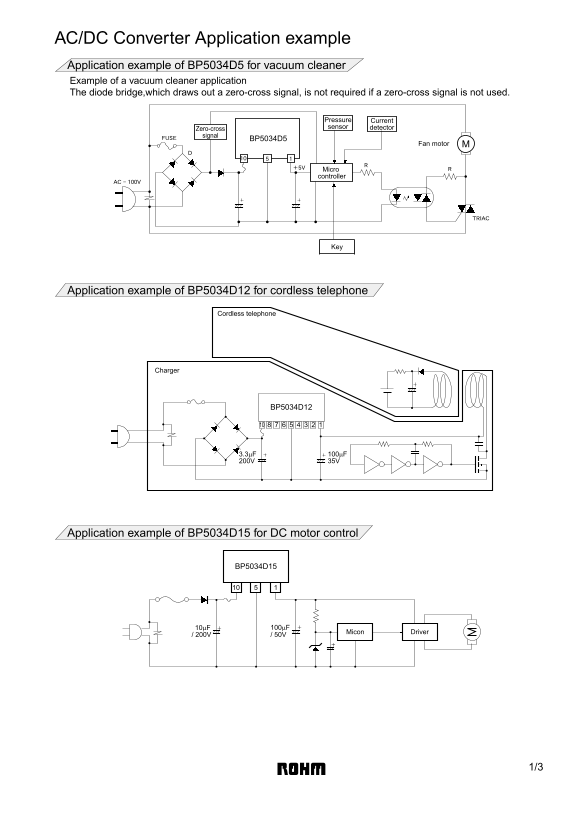

AC/DC Converter Application example Application example of BP5034D5 for vacuum cleaner Example of a vacuum cleaner application The diode bridge,which draws out a zero-cross signal, is not required if a zero-cross signal is not used.
Pressure Current sensor detector
Zero-cross signal
BP5034D5
Fan motor
Micro controller
Application example of BP5034D12 for cordless telephone
Cordless telephone
Charger
BP5034D12
Application example of BP5034D15 for DC motor control
BP5034D15
Driver Micon
