ROHM 2SA1036K 2SA1577 2SA854S Data Sheet manual
Summary
This essential datasheet provides comprehensive technical specifications for a series of medium power PNP silicon transistors. Designed for electronic engineers and circuit designers, this manual covers detailed electrical characteristics, absolute maximum ratings, and structural details (e.g., low VCE(sat) performance). It ensures precise selection and safe integration of these components into low-voltage switching and amplification circuits within professional applications.

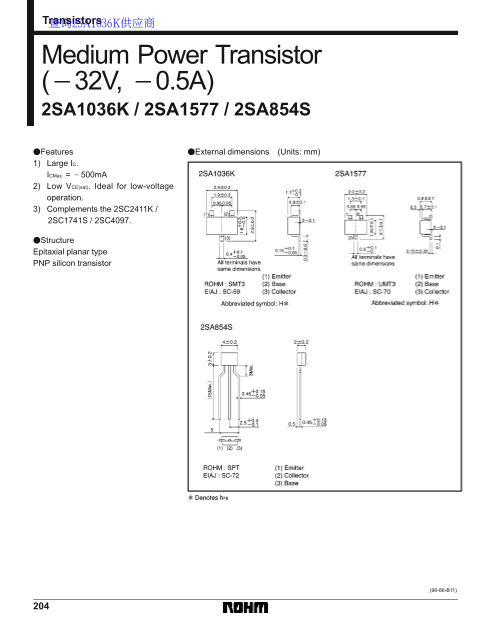

Page 1 Text Content
Transistors 查询2SA1036K供应商
Medium Power Transistor (32V, 0.5A) 2SA1036K 2SA1577 2SA854S Features External dimensions (Units: mm) 1) Large IC. ICMax. = 500m A 2) Low VCE(sat). Ideal for low-voltage operation. 3) Complements the 2SC2411K 2SC1741S 2SC4097. Structure Epitaxial planar type PNP silicon transistor
Page Summary Contents For ROHM 2SA1036K 2SA1577 2SA854S Data Sheet manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 95.24 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum current rating for this transistor?
The large IC has a maximum rating of 500mA, suitable for low-voltage operation.
Which transistors can be complemented by the 2SA1036K?
It complements parts including 2SC2411K, 2SC1741S, and 2SC4097.
What physical structure defines this PNP silicon transistor?
The component uses an Epitaxial planar type construction.
Is this medium-power transistor suitable for low-voltage circuits?
Yes, its low VCE(sat) makes it ideal for low-voltage operation.
