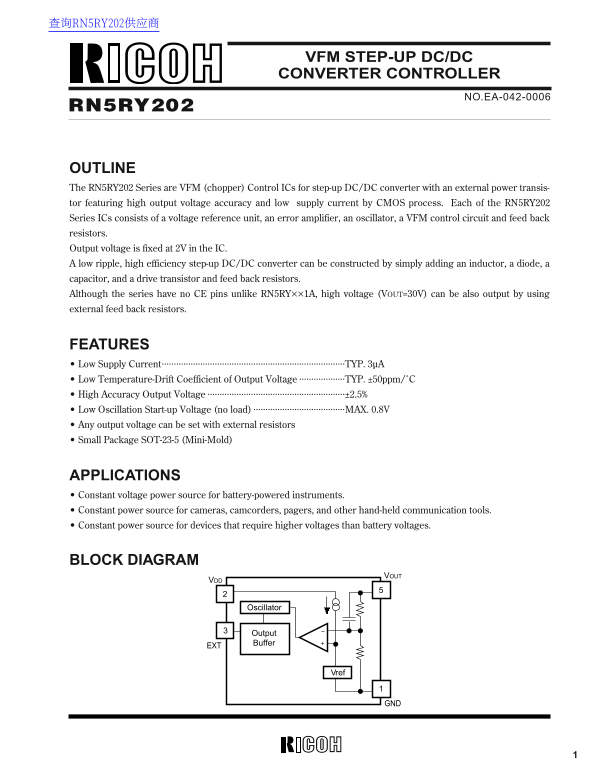

Page 1 Text Content
查询RN5RY202供应商
VFM STEP-UP DC/DC CONVERTER CONTROLLER
NO.EA-042-0006
RN5RY202
OUTLINE The RN5RY202 Series are VFM (chopper) Control ICs for step-up DC/DC converter with an external power transis- tor featuring high output voltage accuracy and low supply current by CMOS process. Each of the RN5RY202 Series ICs consists of a voltage reference unit, an error amplifier, an oscillator, a VFM control circuit and feed back resistors. Output voltage is fixed at 2V in the IC. A low ripple, high efficiency step-up DC/DC converter can be constructed by simply adding an inductor, a diode, a capacitor, and a drive transistor and feed back resistors. Although the series have no CE pins unlike RN5RY××1A, high voltage (VOUT=30V) can be also output by using external feed back resistors.
FEATURES • Low Supply Current............................................................................TYP. 3µA
...................TYP. ±50ppm/˚C
• Low Temperature-Drift Coefficient of Output Voltage
• High Accuracy Output Voltage
......................................MAX. 0.8V
• Low Oscillation Start-up Voltage (no load) • Any output voltage can be set with external resistors • Small Package SOT-23-5 (Mini-Mold)
APPLICATIONS • Constant voltage power source for battery-powered instruments. • Constant power source for cameras, camcorders, pagers, and other hand-held communication tools. • Constant power source for devices that require higher voltages than battery voltages.
BLOCK DIAGRAM
VOUTVDD
Oscillator
Output Buffer
Page Summary Contents For RICOH RN5RY202 Data Sheet
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 9 |
| File Size | 53.29 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the fixed output voltage of the RN5RY202 series?
The internal output voltage is fixed at 2V.
How can I change the output voltage to a higher level (e.g., 30V)?
High voltages (up to VOUT=30V) can be achieved by using external feedback resistors.
What are the recommended components for constructing the DC/DC converter?
You need an inductor, diode, capacitor, a drive transistor, and feedback resistors.
What operating temperature range does this IC support?
It supports operation from -40 to +85 °C.
