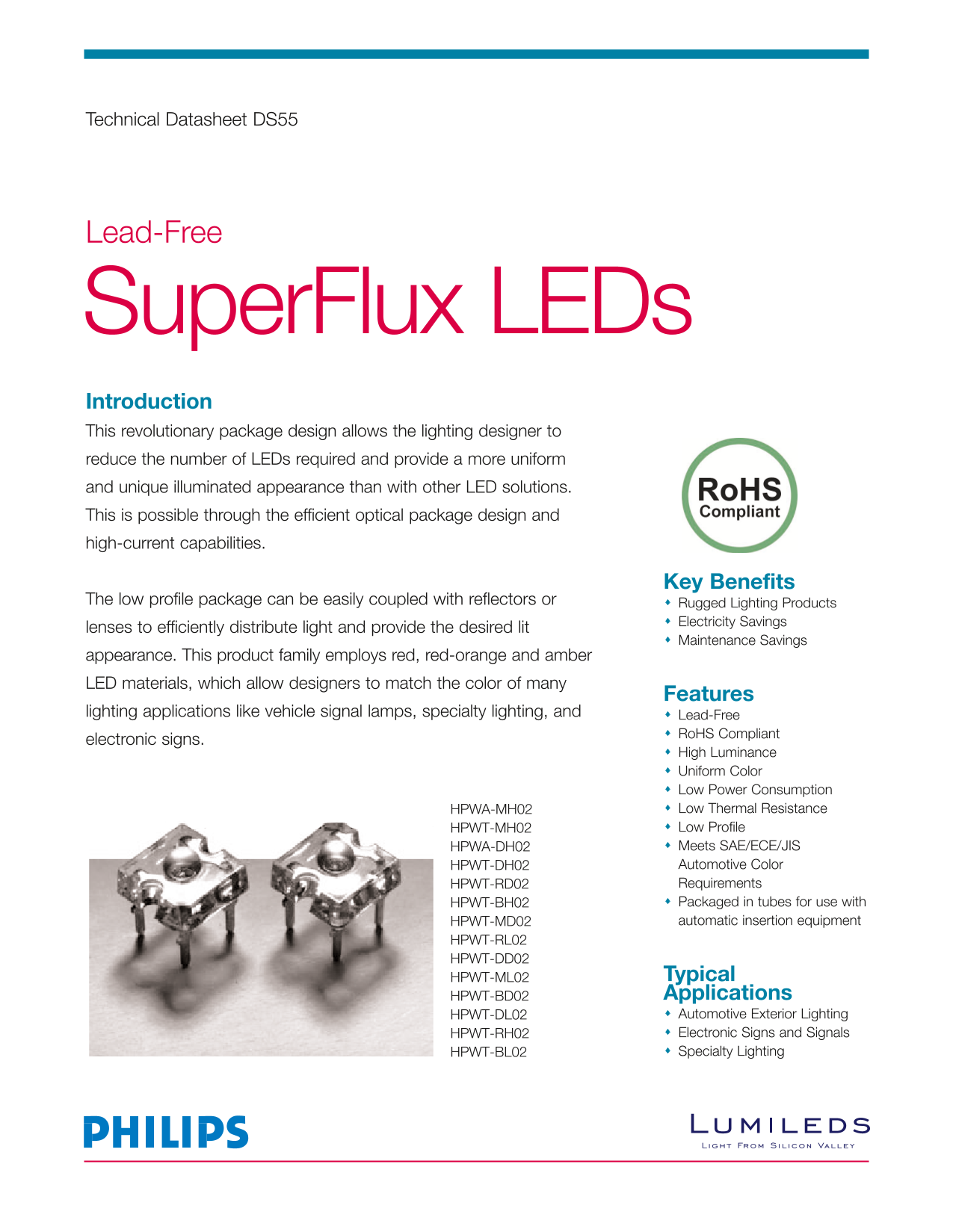

Technical Datasheet DS55
LeadFree
Super Flux LEDs Introduction This revolutionary package design allows the lighting designer to reduce the number of LEDs required and provide a more uniform and unique illuminated appearance than with other LED solutions. This is possible through the efficient optical package design and highcurrent capabilities.
Key Benefits
The low profile package can be easily coupled with reflectors or Rugged Lighting Products
Electricity Savings
lenses to efficiently distribute light and provide the desired lit
Maintenance Savings
appearance. This product family employs red, redorange and amber LED materials, which allow designers to match the color of many
Features
lighting applications like vehicle signal lamps, specialty lighting, and LeadFree
Ro HS Compliant
electronic signs.
High Luminance Uniform Color Low Power Consumption HPWAMH02 Low Thermal Resistance HPWTMH02 Low Profile HPWADH02 Meets SAE/ECE/JIS HPWTDH02 Automotive Color HPWTRD02 Requirements HPWTBH02 Packaged in tubes for use with HPWTMD02 automatic insertion equipment
HPWTRL02 HPWTDD02
HPWTML02 Typical HPWTBD02 Applications HPWTDL02 Automotive Exterior Lighting HPWTRH02 Electronic Signs and Signals HPWTBL02 Specialty Lighting
