Philips TDA1510AQ Data Manual
Summary
The TDA1510AQ is a high-output class-B integrated circuit amplifier, primarily designed for robust stereo car radio applications but also suitable for driving low impedance loads (down to 1.6 Ω). This technical manual provides comprehensive product specifications detailing the device's performance, including operating power in both Bridge Tied Load (BTL) and stereo configurations (up to 24W BTL or 2x12W stereo). It is essential reference material for audio engineers and electronics designers integrating reliable, high-power output into automotive or specialized low-frequency sound systems.

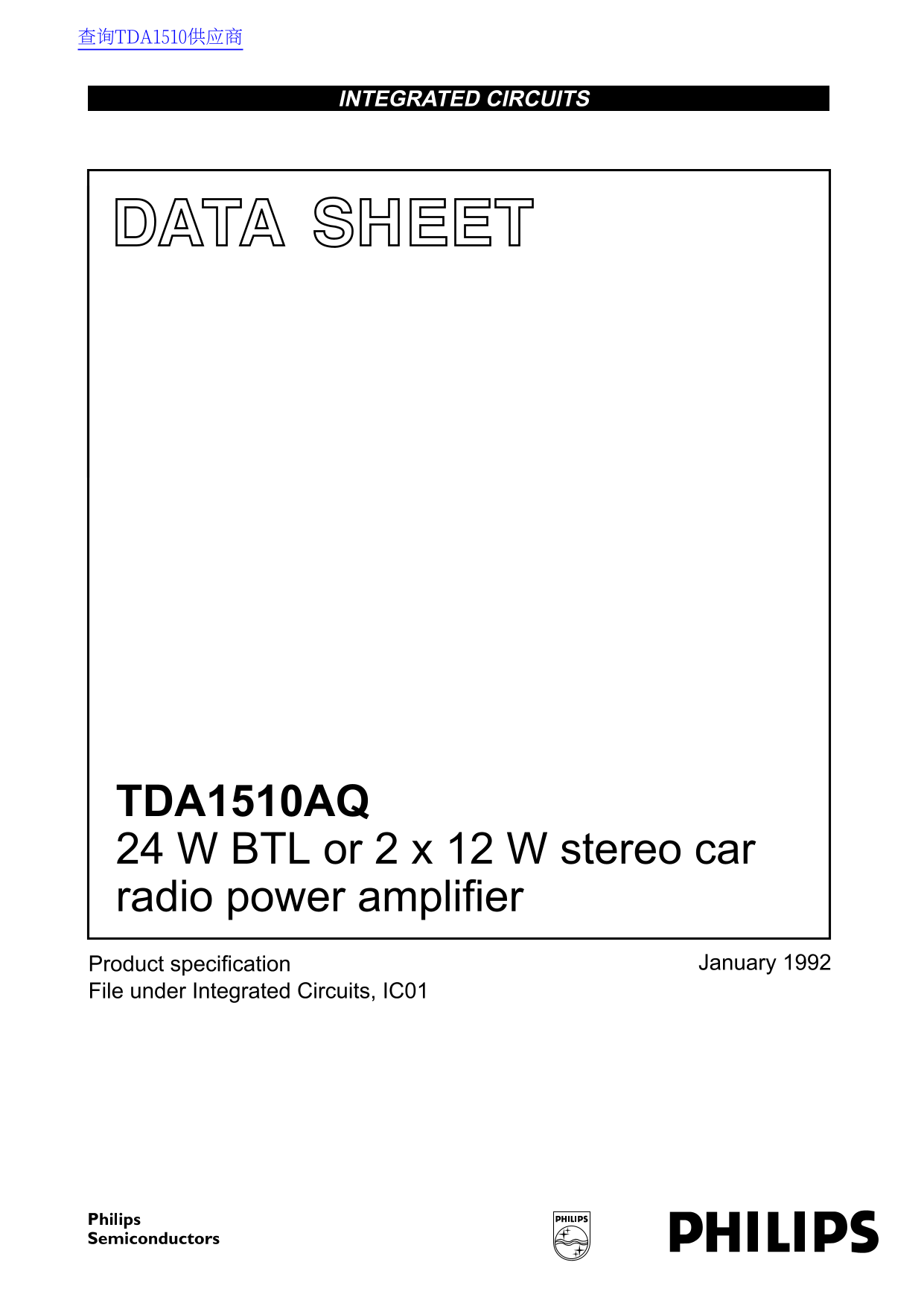

Page 1 Text Content
查询TDA1510供应商
INTEGRATED CIRCUITS
DATA SHEET
TDA1510AQ 24 W BTL or 2 x 12 W stereo car radio power amplifier
Product specification January
File under Integrated Circuits, IC01
Page Summary Contents For Philips TDA1510AQ Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 11 |
| File Size | 88.73 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum output power for the TDA1510AQ in stereo mode?
It can deliver up to 2 × 12 W into a 2 Ω load, or 2 × 7 W into a 4 Ω load.
Can this amplifier handle low impedance loads?
Yes, it can drive low impedance loads down to 1.6 Ω and features load dump protection.
What kind of heatsink design is required for proper operation?
For the maximum stereo output (2 × 12 W into 2 Ω), the external heatsink resistance should be less than 3.5 K/W for adequate heat dumping.
What are the current consumption specifications?
The typical total quiescent current is stated as 75 mA to 120 mA, and the typical stand-by current is 2mA.
