This miniature module combines a high-performance PNP transistor and a low-voltage Schottky barrier rectifier into a compact SOT353 package. Designed for demanding power applications, it delivers robust performance up to 300 mW total dissipation and handles high currents while minimizing circuit board space and cost. The PMEM1505PG is primarily used in DC-to-DC converters, inductive load drivers, and reverse polarity protection circuits. This datasheet provides comprehensive details on its electrical characteristics, thermal limits, pin configurations, and absolute maximum ratings for reliable component integration.

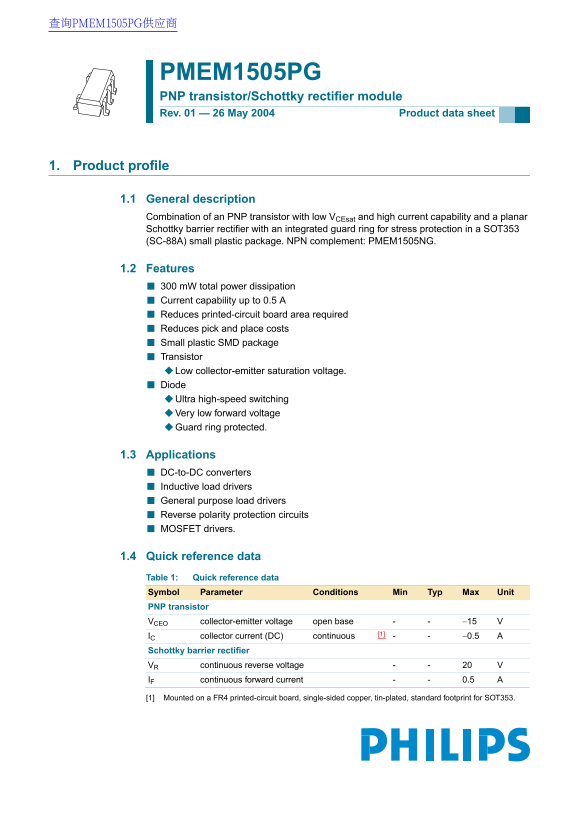

Page 1 Text Content
查询PMEM1505PG供应商
PMEM1505PG PNP transistor/Schottky rectifier module Rev. 01 — 26 May 2004 Product data sheet
1. Product profile
1.1 General description Combination of an PNP transistor with low VCEsat and high current capability and planar Schottky barrier rectifier with an integrated guard ring for stress protection in a SOT353 (SC-88A) small plastic package. NPN complement: PMEM1505NG.
1.2 Features
m W total power dissipation Current capability up to 0.5 Reduces printed-circuit board area required Reduces pick and place costs Small plastic SMD package Transistor Low collector-emitter saturation voltage. Diode Ultra high-speed switching Very low forward voltage Guard ring protected.
1.3 Applications DC-to-DC converters Inductive load drivers General purpose load drivers Reverse polarity protection circuits MOSFET drivers.
1.4 Quick reference data Table 1: Quick reference data Symbol Parameter Conditions Min Typ Max Unit PNP transistor
VCEO collector-emitter voltage open base −15
IC collector current (DC) continuous −0.5
Schottky barrier rectifier
VR continuous reverse voltage IF continuous forward current 0.5
[1] Mounted on a FR4 printed-circuit board, single-sided copper, tin-plated, standard footprint for SOT353.
Page Summary Contents For PHILIPS PMEM1505PG PNP Transistor Schottky Rectifier Module Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 11 |
| File Size | 49.00 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What applications is the PMEM1505PG suitable for?
DC-DC converters, inductive load drivers, reverse polarity protection circuits, MOSFET drivers.
How do I connect to the emitter pin?
Pin 4 is the emitter; base is Pin 3, collector is Pin 1.
Is there an NPN complement to this module?
Yes, PMEM1505NG is the NPN complement component.
What is the max operating temperature?
Operates up to 150°C ambient temperature.
Is power dissipation different for combined devices?
Yes, combined devices support 300 mW vs 250 mW for individual components.
