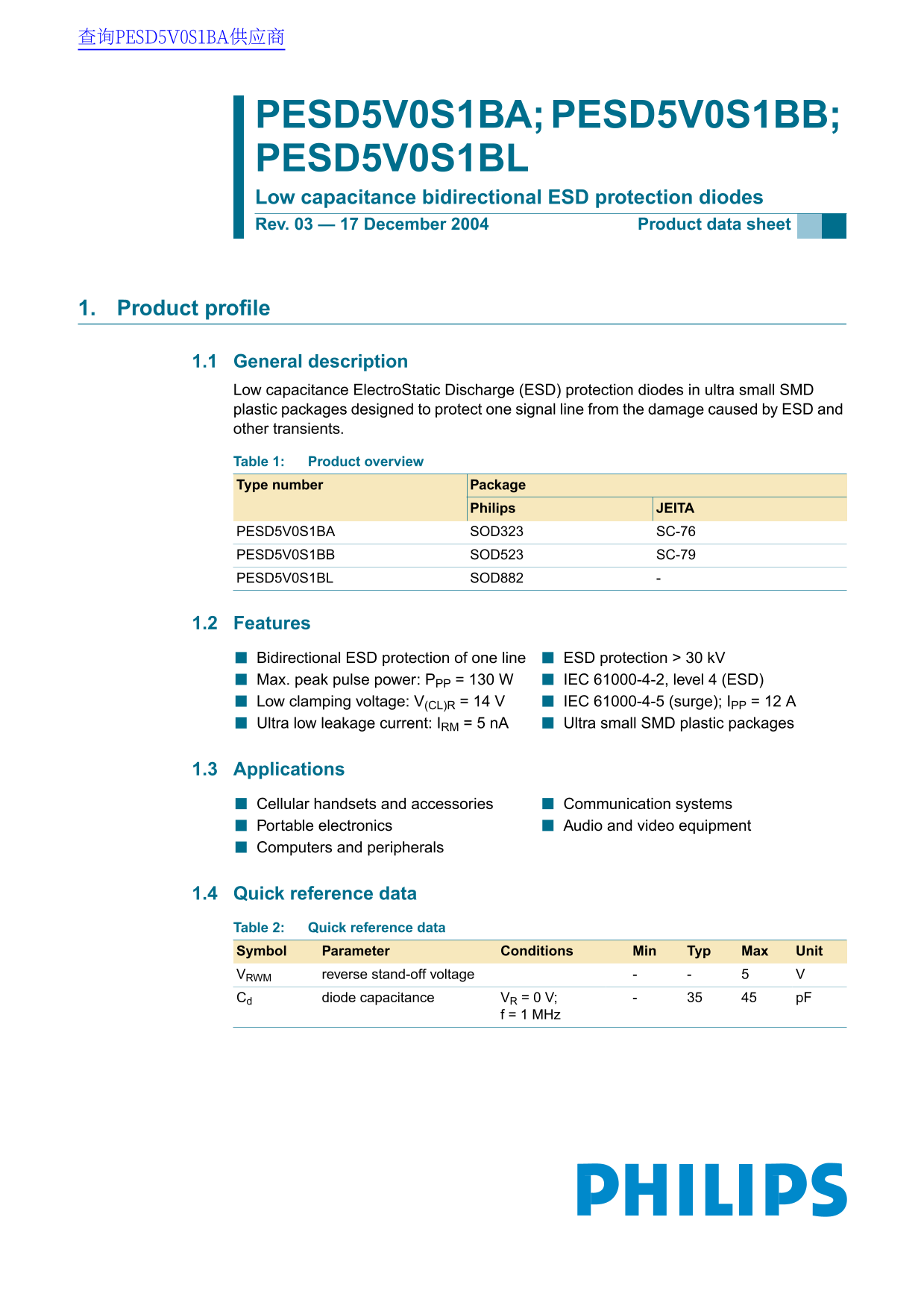

PESD5V0S1BA;PESD5V0S1BB; PESD5V0S1BL Low capacitance bidirectional ESD protection diodes Rev. 03 — 17 December 2004 Product data sheet
1. Product profile
1.1 General description Low capacitance Electro Static Discharge (ESD) protection diodes in ultra small SMD plastic packages designed to protect one signal line from the damage caused by ESD and other transients.
Table 1: Product overview Type number Package
Philips JEITA
PESD5V0S1BA SOD323 SC-76 PESD5V0S1BB SOD523 SC-79 PESD5V0S1BL SOD882
1.2 Features Bidirectional ESD protection of one line ESD protection > 30 k V Max. peak pulse power: PPP = 130 W IEC 61000-4-2, level 4 (ESD) Low clamping voltage: V(CL)R = 14 V IEC 61000-4-5 (surge); IPP = 12 A Ultra low leakage current: IRM = 5 n A Ultra small SMD plastic packages
1.3 Applications Cellular handsets and accessories Communication systems Portable electronics Audio and video equipment Computers and peripherals
1.4 Quick reference data Table 2: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VRWM reverse stand-off voltage Cd diode capacitance VR = 0 V; p F
f = 1 MHz
