Summary
Product specification datasheet (October 1998) for the Philips 74ABT16244A and 74ABTH16244A 16-bit buffer/line driver with 3-State outputs, featuring high-performance BiCMOS technology. Key specifications: 1.7 ns typical propagation delay (74ABT16244A) at VCC=5V/CL=50pF, output capability of +64 mA/-32 mA, and multiple VCC/GND pins to minimize switching noise. Four Output Enable pins (1OE-4OE) each control four outputs independently. 74ABTH16244A variant integrates bus-hold data inputs eliminati
Page 1 Text Content

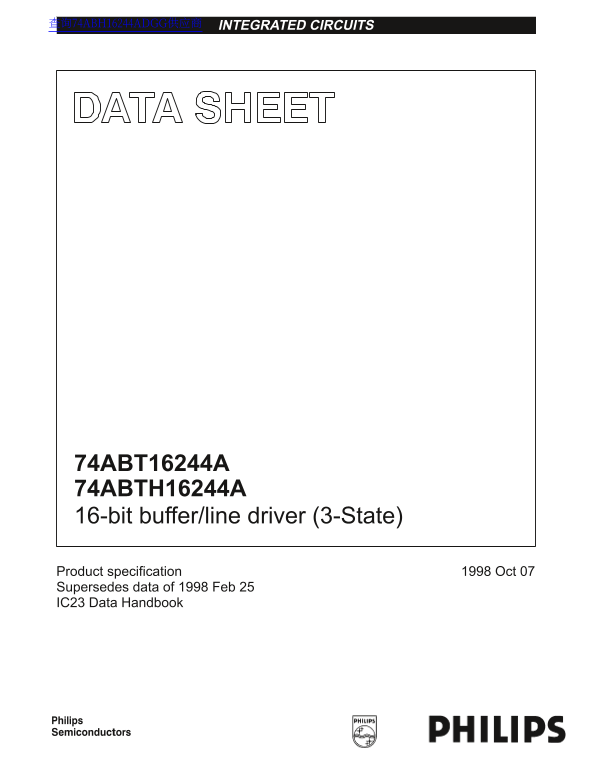

INTEGRATED CIRCUITS查询74ABH16244ADGG供应商
74ABT16244A 74ABTH16244A 16-bit buffer/line driver (3-State)
Product specification 1998 Oct 07 Supersedes data of 1998 Feb 25 IC23 Data Handbook
Page Summary Contents For PHILIPS DATA MANUAL / OWNER'S MANUAL - 74ABT16244A 74ABTH16244A
Manual Details
| Brand | Philips |
|---|---|
| Pages | 10 |
| File Size | 78.53 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the key difference between the ABT and ABTH models?
The 74ABTH16244A incorporates bus hold data inputs, eliminating the need for external pull-up resistors.
Can this device be used in life support systems?
No; these products are not designed for use in life support appliances where malfunction could cause personal injury.
What is the maximum output current capability of the buffer?
The device has an output capability of +64 mA / –32 mA.
How does the bus-hold feature simplify setup?
Bus-hold data inputs eliminate the necessity for external pull-up resistors to hold unused input lines.
