PHILIPS 74F804, 74F1804 Data Manual
Summary
Hex 2-input NAND driver ICs in two configurations with different VCC/GND pin placements. These FAST devices offer high capacitive drive with 2.5ns propagation delay and 48mA output current. Includes pin configurations, logic diagrams, absolute maximum ratings, electrical characteristics, test circuits, and package drawings. For digital system designers requiring high-speed logic buffers.
Page 1 Text Content
INTEGRATED CIRCUITS查询74F1804供应商
74F804, 74F1804 Hex 2-input NAND drivers
Product specification 1990 Sep 14
IC15 Data Handbook
Page Summary Contents For PHILIPS 74F804, 74F1804 Data Manual

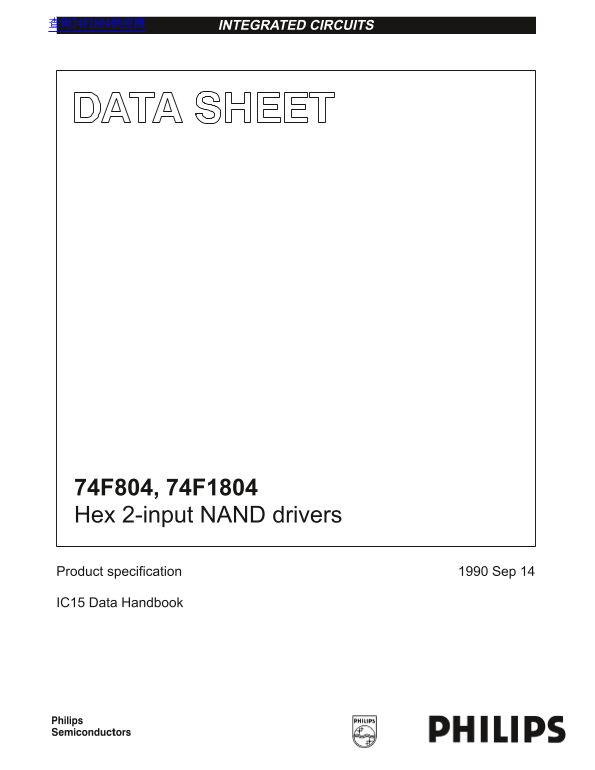

Page 1
INTEGRATED CIRCUITS查询74F1804供应商 74F804, 74F1804 Hex 2-input NAND drivers Product specification 1990 Sep 14 IC15 Data Handbook
Page 2
Philips Semiconductors Product specification 74F804/1804Hex 2-input NAND drivers FEATURES INPUT AND OUTPUT High capacitive drive capability LOADING AND FAN OUT TABLE PINS DESCRIPTION 74F (U.L.) LOAD V...
Page 3
Philips Semiconductors Product specification 74F804/1804Hex 2-input NAND drivers LOGIC SYMBOL LOGIC DIAGRAM QO QO Dob Dob VCC = Pin 5 Q5 Q5 GND = Pin 15 D5b D5b SF00452 VCC = Pin 20 VCC = Pin 5 GND = ...
Page 4
Philips Semiconductors Product specification 74F804/1804Hex 2-input NAND drivers RECOMMENDED OPERATING CONDITIONS SYMBOL PARAMETER LIMITS TA = –40 to UNIT MIN NOM MAX VCC Supply voltage 4.5 5.0 5.5 VI...
Page 5
Philips Semiconductors Product specification 74F804/1804Hex 2-input NAND drivers AC WAVEFORMS Dna, Dnb Qn VM tsk(0) t PHL t PLH Qn VM SF00005 SF00455 Waveform 1. Propagation delay for inverting output...
Page 6
Philips Semiconductors Product specification 74F804, 74F1804Hex 2-input NAND drivers DIP20: plastic dual in-line package; 20 leads (300 mil) SOT146-1 1990 Sep 14
Page 7
Philips Semiconductors Product specification 74F804, 74F1804Hex 2-input NAND drivers SO20: plastic small outline package; 20 leads; body width 7.5 mm SOT163-1 1990 Sep 14
Page 8
Philips Semiconductors Product specification 74F804, 74F1804Hex 2-input NAND drivers Data sheet status Data sheet Product Definition [1] status status Objective Development This data sheet contains th...
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 81.85 KB |
| Published | June 18, 2026 |
4 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical propagation delay of the 74F804/1804?
2.5ns (typ) at Vcc=5V, 25°C.
What is the recommended supply voltage range?
4.5V to 5.5V (Vcc).
What is the operating temperature range?
0°C to +70°C (commercial range).
How many inputs does each NAND gate have?
Two inputs per gate (hex 2-input NAND).
What is the difference between 74F804 and 74F1804?
74F804 has corner Vcc and GND pins; 74F1804 has center Vcc and GND pins.
