This operating manual covers the Panasonic WJ-PB65E01E Network Board, designed for connection expansion of Matrix Switcher WJ-SX650 Series. The manual provides installation instructions, precautions for static electricity, and system integration guidance with Central Processing Unit WJ-MPU955A. Includes 10/100 BASE-T networking capabilities and alarm output configurations. Targeted at qualified service personnel and system integrators working with security and surveillance systems.
Page 1 Text Content
Video Output Board 1 Only Nework OUT X-1
ALARM OUT 1 Network Board ALARM OUT 2
10/100 BASE-T

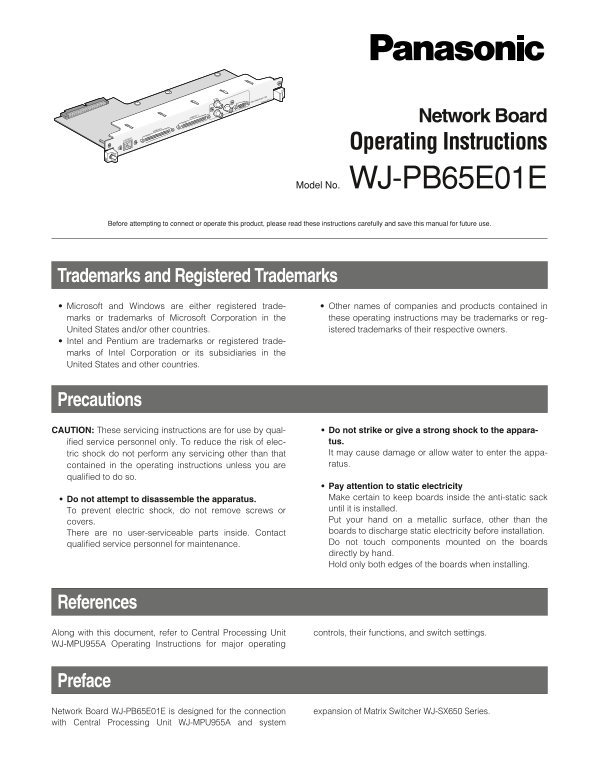

Operating Instructions Model No. WJ-PB65E01E
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Trademarks and Registered Trademarks
Microsoft and Windows are either registered trade- Other names of companies and products contained in marks or trademarks of Microsoft Corporation in the these operating instructions may be trademarks or reg- United States and/or other countries. istered trademarks of their respective owners.
Intel and Pentium are trademarks or registered trade- marks of Intel Corporation or its subsidiaries in the United States and other countries.
Precautions CAUTION: These servicing instructions are for use by qual- Do not strike or give a strong shock to the appara-
ified service personnel only. To reduce the risk of elec- tus. tric shock do not perform any servicing other than that It may cause damage or allow water to enter the appa- contained in the operating instructions unless you are ratus.
qualified to do so.
Pay attention to static electricity Do not attempt to disassemble the apparatus. Make certain to keep boards inside the anti-static sack To prevent electric shock, do not remove screws or until it is installed. covers. Put your hand on a metallic surface, other than the There are no user-serviceable parts inside. Contact boards to discharge static electricity before installation. qualified service personnel for maintenance. Do not touch components mounted on the boards directly by hand. Hold only both edges of the boards when installing.
References Along with this document, refer to Central Processing Unit controls, their functions, and switch settings. WJ-MPU955A Operating Instructions for major operating
Preface Network Board WJ-PB65E01E is designed for the connection expansion of Matrix Switcher WJ-SX650 Series. with Central Processing Unit WJ-MPU955A and system
