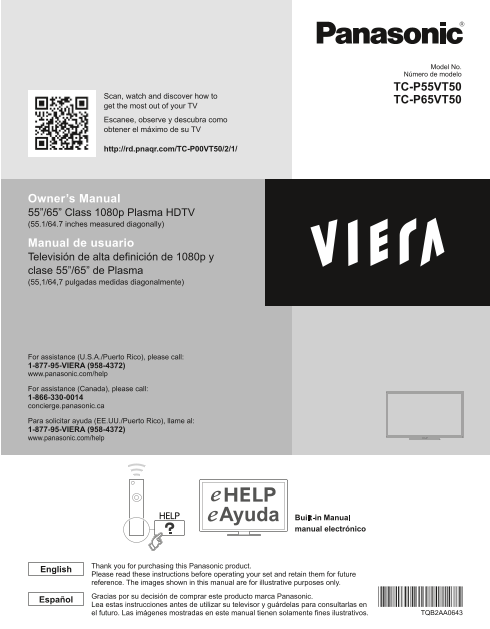

Page 1
Model No. Número de modelo TC-P55VT50 Scan, watch and discover how to TC-P65VT50 get the most out of your TV Escanee, observe y descubra como obtener el máximo de su TV http://rd.pnaqr.com/TC-P00VT50/...
Page 2
This product incorporates the following software or technology: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasoni...
Page 3
VIERA Link™ is a trademark of Panasonic Corporation. HDMI, the HDMI logo and High- Contents Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United ...
Page 4
Safety Precautions The lightning flash with arrowhead within a triangle is CAUTION intended to tell the user that parts inside the product are a risk RISK OF ELECTRIC SHOCK of electric shock to person...
Page 5
Do not place any objects on top of the Plasma TV. If water or an object gets inside the Plasma TV, if the If water spills onto the Plasma TV or foreign objects get Plasma TV is dropped, or if the encl...
Page 6
WARNING/CAUTION (3D Eyewear) Be careful not to close the hinge section of the 3D WARNING Eyewear on your finger. Doing so may result in injury. ■Accidental Ingestion • Provide supervision when childre...
Page 7
FCC and IC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasona...
Page 8
Accessories/Optional Accessories Accessories Check you have all the items shown. Accessories Remote Control Batteries for the Pedestal Transmitter Remote Control N2QAYB000703 Transmitter / Touch Pad H...
Page 9
Attaching the pedestal to TV ■Assembling the pedestal Insert the protrusion of the Neck Turn the stand over and fix stand neck Accessories into the Base firmly. securely with assembly screws. (4 screw...
Page 10
Power cord connection To attach To remove Keep pushing both Insert it firmly until the sides until they snap tabs on both sides click and pull. into place. Installing the remote’s batteries Close Caut...
Page 11
Connections Connection Panels Back of the TV SD card slot USB1/2/3 terminal Ethernet PC connector terminal ●For , , connections, please refer to p. 12 Antenna or Cable connection Back of the TV VHF/UH...
Page 12
AV cable connection To use HDMI terminals AV Equipment HDMI AV OUT e.g. Blu-ray Disc player DVI OUT AV Equipment HDMI-DVI Conversion cable (not in use) e.g. Blu-ray Disc Component/AV player white whit...
Page 13
Audio connection Audio equipment Optical cable DIGITAL AUDIO IN e.g. Amplifier PC / Computer connection (VGA) Component/AV adapter Connect cable which matches the (not in audio out terminal on the com...
Page 14
Identifying Controls TV controls/indicators Front of the TV Back of the TV Changes the input mode Chooses Menu and Submenu entries (Press and hold down for MENU function) Selects channels in sequence ...
Page 15
VIERA Touch Pad Controller The Touch Pad Controller is designed to facilitate TV operation, such as when accessing VIERA Connect or the Browser with the Touch Pad and free pointing system. It also cov...
Page 16
■Operating Touch Pad Controller Touch Pad operations Tap: Swipe: Trace the fringe to Tap center of the Slide your finger to scroll. pad to "OK" swipe. ●Some operations differ depending on th...
Page 17
First Time Setup The first time setup screen is displayed only when the TV is turned on for the first time, after the power cord is inserted into a wall outlet and the “Auto power on” is set to “No”. ...
Page 18
Viewing 3D images on TV Precautions for Viewing 3D Images Cautions During Viewing Do not use devices that emit strong electromagnetic waves (such as cellular phones or personal transceivers) near the ...
Page 19
Using e HELP (Built-in Manual) e HELP (built-in manual) helps you understand how to easily operate the TV features by pressing the HELP button. Display e HELP [Top page] When you enter e HELP again af...
Page 20
Frequently Asked Questions (FAQ) Questions Answers Check that the batteries are fresh, are of the same type and are installed with the correct polarity (+ & -). Why doesn’t the Remote To operate o...
Page 21
Specifications TC-P55VT50 TC-P65VT50 Power Source AC 120 V, 60 Hz Power Consumption (Rated power / Standby power) Panel System Plasma Display panel 55 ” class 65 ” class Screen size (55.1 inches measu...
Page 22
Limited Warranty (for U.S.A. and Puerto Rico only) Panasonic Consumer Marketing Company of North America, Division of Panasonic Corporation of North America One Panasonic Way Secaucus, New Jersey 0709...
Page 23
Customer Services Directory (for U.S.A. and Puerto Rico) Customer Services Directory (United States and Puerto Rico) Obtain Product Information and Operating Assistance; locate your nearest Dealer or ...
Page 24
Limited Warranty (for Canada) Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT – LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from def...
Page 25
TC-P55VT50 55" Plasma HDTV SPECIFICATIONS Dimensions (W x H x D) 50.7" (1,286 mm) x 32.3" (819 mm) x 14.1" (357 mm) (Including pedestal) 50.7" (1,286 mm) x 30.4" (771 mm)...
Page 26
TC-P65VT50 65" Plasma HDTV SPECIFICATIONS Dimensions (W x H x D) 59.1" (1,499 mm) x 37.0" (939 mm) x 15.8" (400 mm) (Including pedestal) 59.1" (1,499 mm) x 35.1" (891 mm)...
Page 27
USA Only: Disposal may be regulated in your community due to environmental considerations. For disposal or recycling information, please visit Panasonic website: http://www.panasonic.com/environmental...
