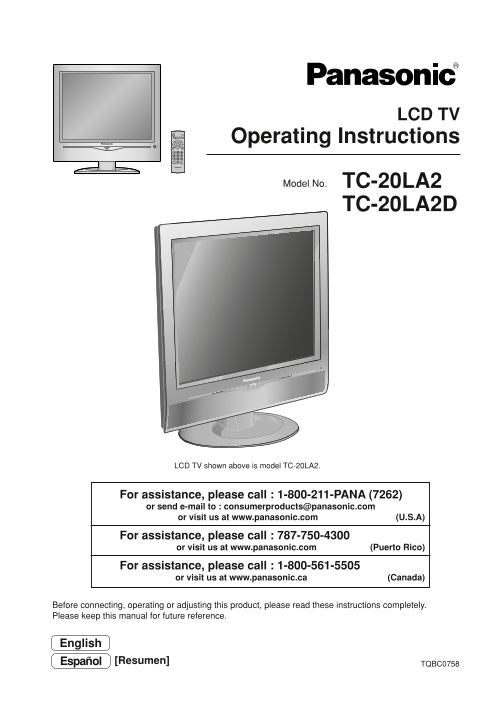

Page 1 Text Content
LCD TV
Operating Instructions
Model No. TC-20LA2 TC-20LA2D
LCD TV shown above is model TC-20LA2.
For assistance, please call : 1-800-211-PANA (7262) or send e-mail to : [email protected]
or visit us at www.panasonic.com (U.S.A)
For assistance, please call : 787-750-4300
or visit us at www.panasonic.com (Puerto Rico)
For assistance, please call : 1-800-561-5505
or visit us at www.panasonic.ca (Canada)
Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.
English
Español [Resumen]
TQBC0758
Page Summary Contents For Panasonic TC-20LA2 TC-20LA2D User Guide and Owner's Manual
Page 1
LCD TV Operating Instructions Model No. TC-20LA2 TC-20LA2D LCD TV shown above is model TC-20LA2. For assistance, please call : 1-800-211-PANA (7262) or send e-mail to : [email protected] ...
Page 2
Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrow The exclamation point within a head within a triangle is intended triangle is intended to tell t...
Page 3
Important Safety Instructions 18) If an outside antenna is connected to the EXAMPLE OF ANTENNA television equipment, be sure the antenna system GROUNDING AS PER (NEC) is grounded so as to provide some...
Page 4
Dear Panasonic Customer Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new LCD TV. To obtain maximum benefit from your set, please read thes...
Page 5
Table of Contents Important Safety Instructions Installation SUPPLIED ACCESSORIES Manual de instrucciones [ Resumen ] Remote control battery installation Maintenance Instalación de las pilas del mando...
Page 6
Installation Receiver Location Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the screen. Use of some types of fluorescent ligh...
Page 7
Installation SUPPLIED ACCESSORIES Check the accessories before installations. • Operating Instruction book • Remote Control Transmitter • Warranty Card (EUR7726020) • Service Center List (For U.S.A.) ...
Page 8
Maintenance To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and detergent water solution or a weak detergent solution. • Use eye...
Page 9
Connections Cable Box Connection • For reception of cable channels (01 - 125), connect the cable supplied by your local cable company. The antenna mode must be set to CABLE (see page 16, MODE). • Cert...
Page 10
Connections Connecting Other Equipment COMPONENT VIDEO OUTAudio Pr Pb YLR DVD/STB AUDIO COMPONENT VIDEO cable VIDEO cable AUDIO VIDEO S-VIDEO PB AUDIO PR COMPORNENT VIDEO INPUTINPUT VIDEO AUDIO PB VID...
Page 11
Connections To bundle the cables with the clamper [TC-20LA2] 1. Pull upward. 2. Put the cables and close. AUDIO VIDEO VIDEO S-VIDEO PB AUDIO PR COMPORNENT VIDEO INPUTINPUT VHF UHF Note: • Do not put t...
Page 12
Power ON / OFF Connecting the Plug to the Wall Outlet AC120V, 60Hz AUDIO VIDEO S-VIDEO VIDEO PB AUDIO PR VHF / UHF COMPORNENT VIDEO INPUTINPUT Power cord Note: • The TV consumes some power as long as ...
Page 13
Basic Controls <Top Side Controls> TV/VIDEO VOLUME CHANNEL POWER TV/VIDEO button Volume Up/Down Channel Up/Down Main POWER switch Press to turn the TV’s main power on/off. (see page 12) Remote c...
Page 14
Menu Operations Press to display MENU MENU ADJUST SET UP screen. PICTURE PICTURE ADJUST MENU AUDIO ADJUST SET UP AUDIO ADJUST PICTURE PICTURE ADJUST or AUDIO MENU ADJUST SET UP AUDIO ADJUST LANGUAGE P...
Page 15
Menu Operations Press to select the MENU screen (ADJUST or SET UP). Press to select the sub-menu feature. Press to display the sub-menu screen. • To return to the previous screen : • To exit the MENU ...
Page 16
Menu Operations Tuning Channels Press the TV/VIDEO button to display the TV channel.1 Press to select PROGRAM CH. MENU ADJUST SET UP Press to display the PROGRAM CHANNELS screen. LANGUAGE PROGRAM CH L...
Page 17
Menu operations Manual channel programming Add or delete a channel manually. Press to select MANUAL PROGRAM. PROGRAM CHANNELS MODE TV CABLE AUTO PROGRAM MANUAL PROGRAM Press to display the MANUAL MANU...
Page 18
Menu Operations LOCK In the United States, the V-CHIP consists of two rating systems, which are MPAA (MOTION PICTURE) and TV PARENTAL GUIDELINES. Its function is to block programs by the rating data i...
Page 19
Menu Operations U.S. TV PROGRAM U. S. TV PROGRAMS Press to select VIEW NR PROGRAMS?. VIEW NR PROGRAMS? NO YES Press to select NO or YES. SETTING BASIC NO : Cannot view programs with NR signals. YES : ...
Page 20
Menu Operations U.S. MOVIES Press to select VIEW NR PROGRAMS?. U. S. MOVIES VIEW NR PROGRAMS? NO YES Press to select NO or YES. NO : Cannot view programs with NR signals. YES : Can view programs with ...
Page 21
Menu Operations CANADIAN ENGLISH RATINGS CHART Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. P...
Page 22
Menu Operations CLOSED CAPTION This unit has a built in decoder that provides a visual depiction of the audio portion of a television program in the form of written words across the screen (white or c...
Page 23
Menu Operations INPUT LABEL You can change the label of the video inputs to match with the connected device (VCR, DVD player etc.). Press to select INPUT LABEL. MENU ADJUST SET UP Press to display the...
Page 24
Menu Operations PICTURE ADJUST Press to select PICTURE ADJUST. ADJUST SET UP PICTURE PICTURE ADJUST AUDIO AUDIO ADJUST Press to display the PICTURE ADJUST screen. PICTURE ADJUST NORMAL Press to select...
Page 25
Menu Operations AUDIO ADJUST Press to select AUDIO ADJUST. ADJUST SET UP PICTURE PICTURE ADJUST AUDIO AUDIO ADJUST Press to display the AUDIO ADJUST screen. AUDIO ADJUST Press to select the sub-menu. ...
Page 26
ASPECT Controls (For Video input only) This feature allows you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture. Each time you press the button: Notes: • T...
Page 27
Manual de instrucciones [ Resumen ] Estimado cliente de Panasonic Bienvenido a la familia de clientes de Panasonic. Esperamos sinceramente que disfrute durante muchos años de su nuevo Esperamos sincer...
Page 28
Ajuste el soporte con el ángulo deseado • TC-20LA2 El ángulo del soporte se puede ajustar entre 5° hacia delante y 15° hacia atrás, y se puede girar 30° hacia la derecha/izquierda. Frente Frente • TC-...
Page 29
Conexión Nota: Con este aparato no se suministran cables ni adaptadores. Conexión de antena Para recibir correctamente los canales de VHF/UHF se requiere una antena externa. Para obtener la mejor rece...
Page 30
Conexión Conexión del receptor de TV por cable • Para recibir los canales de televisión por cable (01 - 125) conecte el cable suministrado por su compañía de televisión por cable. El modo de antena de...
Page 31
Conexión Para unir y atar los cables con la abrazadera [TC-20LA2] 1. Tire hacia arriba. 2. Ponga juntos los cables y cierre la abrazadera. AUDIO VIDEO VIDEO S-VIDEO PB AUDIO PR COMPORNENT VIDEO INPUTI...
Page 32
Conexión/desconexión de la alimentación Conexión de la clavija a la toma de corriente CA 120 V, 60 Hz AUDIO VIDEO S-VIDEO VIDEO PB AUDIO PR VHF / UHF COMPORNENT VIDEO INPUTINPUT Cable de alimentación ...
Page 33
Controles básicos <Controles del lado superior> TV/VIDEO VOLUME CHANNEL POWER Botón TV/VIDEO Subida/bajada del volumen Canal superior/inferior Interruptor POWER principal Púlselo para conectar/d...
Page 34
Operaciones con menús Púlselo para visualizar la MENU Ajuste Configu. pantalla MENU. Imagen Ajuste Imagen MENU Sonido Ajuste Configu. Ajuste Sonido Imagen Ajuste Imagen Sonido MENU Ajuste Configu. Aju...
Page 35
Operaciones con menús Púlselo para seleccionar la pantalla MENU (Ajuste o Configu.). Púlselo para seleccionar la función de menú secundario. Púlselo para visualizar la pantalla de menú secundario. • P...
Page 36
Operaciones con menús Sintonización de canales Pulse el botón TV/VIDEO para visualizar el canal de TV.1 Pulse para seleccionar Prog. Canales. MENU Ajuste Configu. Pulse para visualizar la pantalla Pro...
Page 37
Operaciones con menús Programación automática de canales Añada o borre un canal manualmente. Pulse para seleccionar PROGRAMA Prog. Canales MANUAL. MODO TV CABLE PROGRAMA AUTO PROGRAMA MANUAL Pulse par...
Page 38
Troubleshooting If there is a problem with your TV please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact you...
Page 39
Specifications TC-20LA2 TC-20LA2D Power Source AC 120 V, 60 Hz Average use : 65 W Power Consumption Stand-by condition : 0.11 W Power off : 0.08 W 20-inch (510 mm), 4:3 aspect ratio LCD panel 16.06 ″ ...
Page 40
Customer’ Record The model number and serial number of this product can be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purch...
