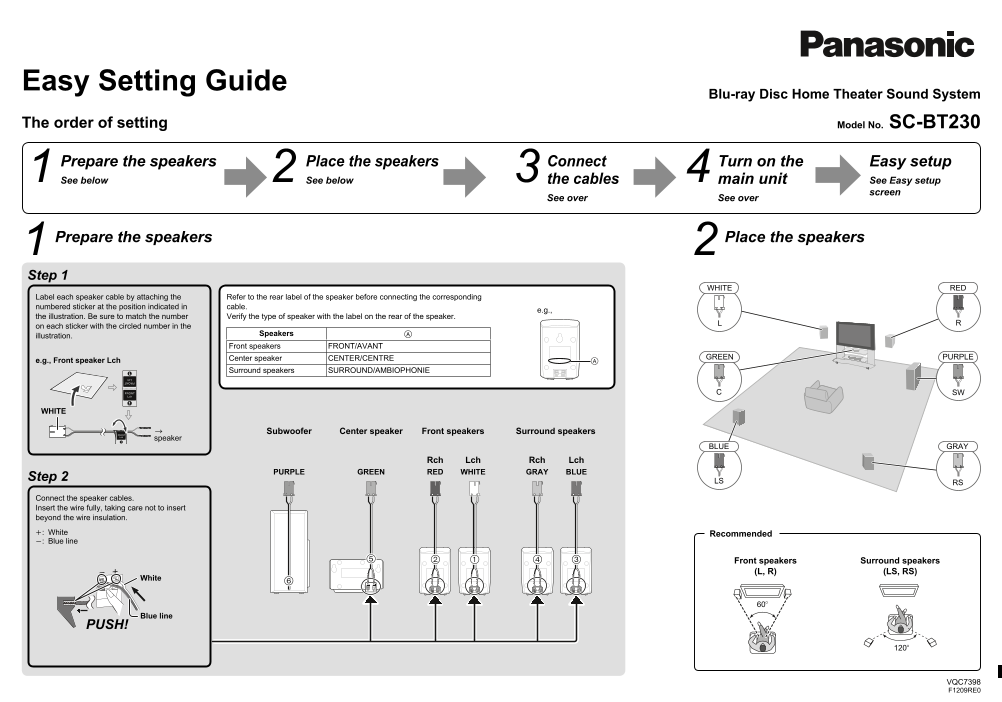

Easy Setting Guide
Blu-ray Disc Home Theater Sound System
The order of setting Model No. SC-BT230
Prepare the speakers Place the speakers Connect Turn on the Easy setup See below See below the cables main unit See Easy setup
screen
See over See over
Prepare the speakers Place the speakers
Step 1
WHITE RED
Label each speaker cable by attaching the Refer to the rear label of the speaker before connecting the corresponding numbered sticker at the position indicated in cable.
the illustration. Be sure to match the number Verify the type of speaker with the label on the rear of the speaker.
on each sticker with the circled number in the
Speakers
illustration.
Front speakers FRONT/AVANT
Center speaker CENTER/CENTRE GREEN PURPLE
e.g., Front speaker Lch
Surround speakers SURROUND/AMBIOPHONIE
WHITE
Front speakers Surround speakers Center speaker Subwoofer
speaker
BLUE GRAY
Rch Lch Rch Lch
PURPLE GREEN RED WHITE GRAY BLUE
Step 2
LS RS
Connect the speaker cables. Insert the wire fully, taking care not to insert beyond the wire insulation. : White Recommended : Blue line
Front speakers Surround speakers (L, R) (LS, RS)
White
Blue line
PUSH!
VQC7398 F1209RE0
VQC7398_eng.indd 2-3 2009/12/08 11:03:50
