Panasonic CQ-C9800 9700U User's Manual
Summary
Discover comprehensive operation guides for the Removable Full Front MP3 WMA CD Player/Receiver. This unit provides modern car audio functionality, featuring built-in MP3/WMA capabilities and a detailed display. The manual covers everything needed for successful installation and use, including critical safety warnings regarding moisture exposure, controls operation, extensive technical specifications (EQ settings, inputs), and authorized service guidelines. Perfect for car owners looking to upgrade or maintain a reliable, high-quality audio system in their vehicle.
Page 1 Text Content

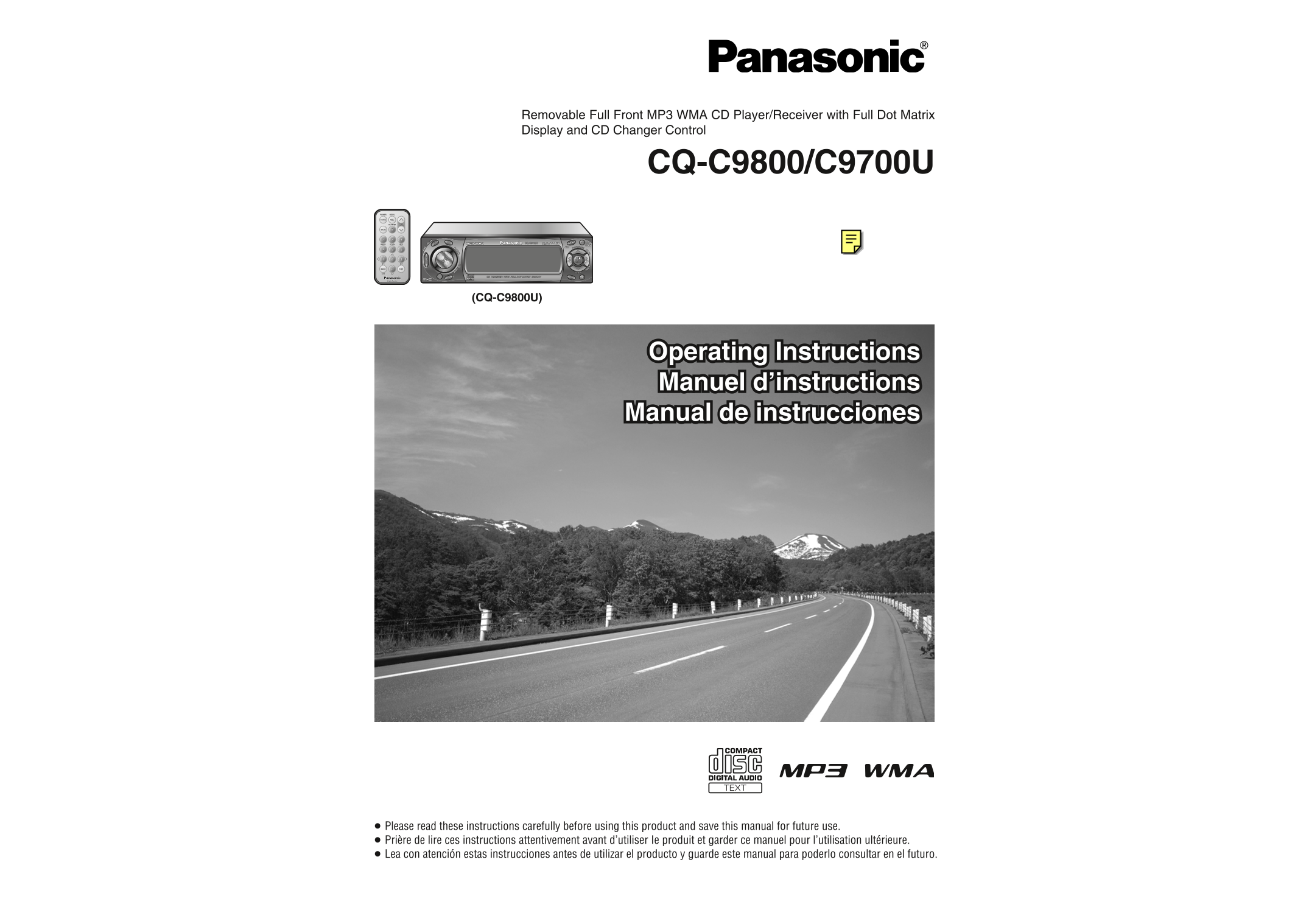

Removable Full Front MP3 WMA CD Player/Receiver with Full Dot Matrix Display and CD Changer Control
CQ-C9800/C9700U
(CQ-C9800U)
Operating Instructions Manuel d’instructions Manual de instrucciones
≥ Please read these instructions carefully before using this product and save this manual for future use. ≥ Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure. ≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
Page Summary Contents For Panasonic CQ-C9800 9700U User's Manual
Page 1
Removable Full Front MP3 WMA CD Player/Receiver with Full Dot Matrix Display and CD Changer Control CQ-C9800/C9700U (CQ-C9800U) Operating Instructions Manuel d’instructions Manual de instrucciones ≥ P...
Page 2
Safety Information Precautions Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built...
Page 3
Features Full Digital CD Receiver SQ (Sound Quality) System Upgrade The CQ-C9800U/CQ-C9700U uses Radio DSP You have 6 preset modes (FLAT, POP, ROCK, CD Changer Control for digital conversion and proce...
Page 4
Preparation Clock Setting The 12-hour system is used for the clock. Remote Control Unit Subwoofer ≥ Turn your car’s ignition key to the ACC or ON Lithium battery Preparation: position. Back side (incl...
Page 5
Contents Safety Information Audio Settings....................................................... Precautions..............................................................................................
Page 6
General [MUTE] (Mute/attenuation) [VOLUME] (SBC-SW) [SOURCE] POWER MENU (Power/source) SOURCE SEL [VOL "] NUMBER VOL [MUTE] MUTE [VOL #] (Mute/attenation) (Volume) (SBC-SW) RAND SCAN REP DISPBAND...
Page 7
General (continued) [SQ] (Sound Quality) [MENU] (DIM) [<: eject] SQ (Sound Quality) Display Change (OPEN/TILT) You have 6 preset modes (FLAT, POP, ROCK, Press [DISP] (display). VOCAL, JAZZ, CLUB). ...
Page 8
Radio Stereo indicator [%] [$] ["] [#] (TUNE) (Preset station) POWER MENU [SOURCE] SOURCE SEL NUMBER VOL [1] to [6] RAND SCAN REP (Preset station) ["] [#] (Preset station) DISPBAND [BAND] SE...
Page 9
Before Disc Playback CD Player Available Discs Disc Insert Do not watch the scroll display while driving. (Track selection/fast forward/fast reverse) ∫ CD-DA [<: eject] (OPEN) 1 Press [<: eject]...
Page 10
CD Player (continued) Random Play/Repeat Play [SEL] (MENU) POWER MENU SOURCE SEL [#] ["] (Submenu) NUMBER VOL [SET][MENU] RAND SCAN REP ["] [#] 1 Menu 2 Submenu 3 Set (Submenu) 1 Press [MENU...
Page 11
MP3/WMA Player E Do not watch the scroll display while driving. [SOURCE] (File selection/fast forward/fast reverse) [0] to [9] POWER MENU SOURCE SEL (File selection/ NUMBER VOL folder number) MUTE [5]...
Page 12
MP3/WMA Player (continued) Random Play/Repeat Play [SEL] (MENU) POWER MENU SOURCE SEL NUMBER VOL ["] [#] (Submenu) MUTE [SET][MENU] RAND SCAN REP ["] [#] (Submenu) 1 Menu 2 Submenu 3 Set [%]...
Page 13
MP3/WMA Player (continued) Notes on MP3/WMA What is MP3/WMA? Display Information Recording MP3/WMA Files Folder Selection Order/File MP3 (MPEG audio layer 3) and WMA (Windows ∫ Displayed Items/display...
Page 14
CD Changer Control E Changer indicator [:]/[9] (6/5) [SOURCE] lights when the changer is connected. (Track selection/ [0] to [9] POWER MENU SOURCE SEL fast forward/fast reverse) (Disc number) NUMBER V...
Page 15
CD Changer Control (continued) Random Play/Repeat Play [SEL] (MENU) POWER MENU SOURCE SEL NUMBER VOL ["] [#] (Submenu) MUTE [SET][MENU] RAND SCAN REP ["] [#] (Submenu) 1 Menu 2 Submenu 3 Set...
Page 16
Audio Settings [SEL] POWER MENU (Select) SOURCE SEL [VOL "] NUMBER VOL MUTE [VOL #] RAND SCAN REP Audio setting by pressing [SEL] button 1 Press [VOLUME] 2 Turn [VOLUME]. ≥ Volume ≥ High pass fi ...
Page 17
Audio Settings (continued) [SEL] POWER MENU (Select) SOURCE SEL [VOL "] NUMBER VOL MUTE [VOL #] RAND SCAN REP 1 Press [VOLUME] 2 Turn [VOLUME]. DISPBAND [DISP] (PUSH SEL: select). Press [VOL &quo...
Page 18
Audio Settings (continued) POWER MENU SOURCE SEL [VOL "] NUMBER VOL MUTE [VOL #] ["] [#] (Submenu) RAND SCAN REP [2] to [6] [%] [$] (SQ preset (Set) buttons) 1 AUDIO MODE 2 Submenu 3 Set DIS...
Page 19
Audio Settings (continued) POWER MENU SOURCE SEL NUMBER VOL RAND SCAN REP 1 AUDIO MODE 2 Submenu 3 Set (Submenu) DISPBAND [DISP] [%] [$] (Display) Press and hold [SQ] for 1 Press ["] or [#]. Pres...
Page 20
Display Settings E [SEL] [MENU] U) POWER MENU ["] [#] (Submenu) SOURCE SEL NUMBER VOL [SET][MENU] MUTE RAND SCAN REP (Submenu) 1 Menu 2 Submenu 3 Set [%] [$] 1 Press [MENU]. 1 Press ["] or [...
Page 21
Function Settings E [SEL] ["] [#] (Submenu) [MENU] U) POWER MENU SOURCE SEL NUMBER VOL [SET][MENU] The Function Settings can be established not only from the radio mode but from RAND SCAN REP [&q...
Page 22
Customize the Display (Customize function) Note: [SOURCE] [SEL] (Select) [%] [$] (Select) POWER MENU ≥ Do not write data on the CD-R/RW disc if, by [SOURCE] SOURCE SEL NUMBER VOL so doing, the maximum...
Page 23
Troubleshooting E Preliminary Steps Problem Possible cause Possible solution Caution: ≥ Do not use the unit if it malfunctions or if Check and take steps as described in the tables below. Noise There ...
Page 24
Troubleshooting (continued) CD/MP3/WMA Remote Control Unit Problem Possible cause Possible solution Problem Possible cause Possible solution No playback or disc The disc is inserted upside down. Inser...
Page 25
Troubleshooting (continued) CD Changer Control Customize Function Display Possible cause Possible solution Display Possible cause Possible solution Disc is dirty, or is upside down. Check the disc. No...
Page 26
Notes on Discs E Anti-Theft System This unit is equipped with a removable face plate. Removing this face plate makes the unit totally inoperable. Notes on CD/CD Media Notes on CD-Rs/RWs (CD-R, CD-RW, ...
Page 27
Installation Guide E ≥ Disconnect the cable from the negative - battery Caution: Overview terminal (see caution below). WARNING ≥ This unit operates with a 12 V DC This product should be installed by ...
Page 28
Installation Guide (continued) Battery Lead Equipment Identify All Leads Connect All Leads If your stereo unit has a yellow lead, you will need Connect any optional equipment such as an The fi rst ste...
Page 29
Installation Guide (continued) Installation Procedures Remove the Unit First complete the electrical connections, and then The included mounting collar 1 is designed Switch off the power of the unit. ...
Page 30
Electrical Connections CD changer input cord Caution: R (red) Antenna CD.C-IN ≥ This product is designed to operate with a 12 V ≥ Be sure to insulate any exposed wires from L (white) DC, negative grou...
Page 31
Electrical Connections (continued) Upgrading the System 1 Note: Example combination ≥ For wiring, carefully read the operating ≥ CD changer (CX-DP880U, option) CD changer instructions for the devices ...
Page 32
Electrical Connections (continued) Specifi cations Speaker System Connection General FM Stereo Radio Power supply: DC 12 V (11 V–16 V), Frequency range: 87.9 MHz–107.9 MHz Note: Example combination te...
Page 33
