The E5CSV series are robust, DIN 48x48mm temperature controllers designed for precise process regulation in industrial applications. These smart controllers feature easy setup via DIP switches and support various inputs, including thermocouples and platinum resistance thermometers. The accompanying manual provides comprehensive details on model selection, rigorous technical specifications, multi-alarm configuration, and operational procedures. Ideal for automation engineers and technicians requiring reliable, accurate temperature monitoring and control systems for demanding environments.

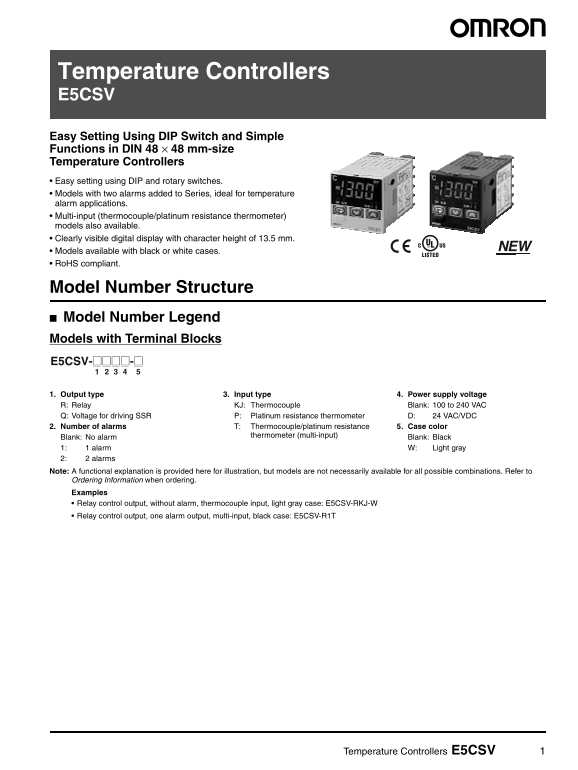

Page 1 Text Content
Temperature Controllers E5CSV Easy Setting Using DIP Switch and Simple Functions in DIN 48 × 48 mm-size Temperature Controllers Easy setting using DIP and rotary switches. Models with two alarms added to Series, ideal for temperature alarm applications. Multi-input (thermocouple/platinum resistance thermometer) models also available. Clearly visible digital display with character height of 13.5 mm. Models available with black or white cases. Ro HS compliant.
Model Number Structure Model Number Legend Models with Terminal Blocks E5CSV-@@@@-@
1. Output type 3. Input type 4. Power supply voltage R: Relay KJ: Thermocouple Blank: 100 to 240 VAC Q: Voltage for driving SSR P: Platinum resistance thermometer D: 24 VAC/VDC 2. Number of alarms T: Thermocouple/platinum resistance 5. Case color
thermometer (multi-input)
Blank: No alarm Blank: Black 1: 1 alarm W: Light gray
2: 2 alarms Note: A functional explanation is provided here for illustration, but models are not necessarily available for all possible combinations. Refer to Ordering Information when ordering. Examples Relay control output, without alarm, thermocouple input, light gray case: E5CSV-RKJ-W Relay control output, one alarm output, multi-input, black case: E5CSV-R1T
Temperature Controllers E5CSV
Page Summary Contents For OMRON Industrial Automation Temperature Controllers E5CSV User's Manual
Manual Details
| Brand | Omron |
|---|---|
| Pages | 20 |
| File Size | 656.30 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of sensors are compatible with the E5CSV controller?
It supports thermocouples (like K, J, L) and Platinum Resistance Thermometers (Pt100, JPt100).
How can I adjust general settings on the unit?
Basic settings use DIP switches and rotary dials; advanced changes utilize digital front panel keys.
What electrical outputs does this controller provide?
It provides SPST-NO Relay control output and a voltage output (12 VDC, 21 mA) for driving SSRs.
Does the controller have an alarm feature?
Yes, it features up to eight modes of alarm output, along with optional single or dual alarms depending on the model.
