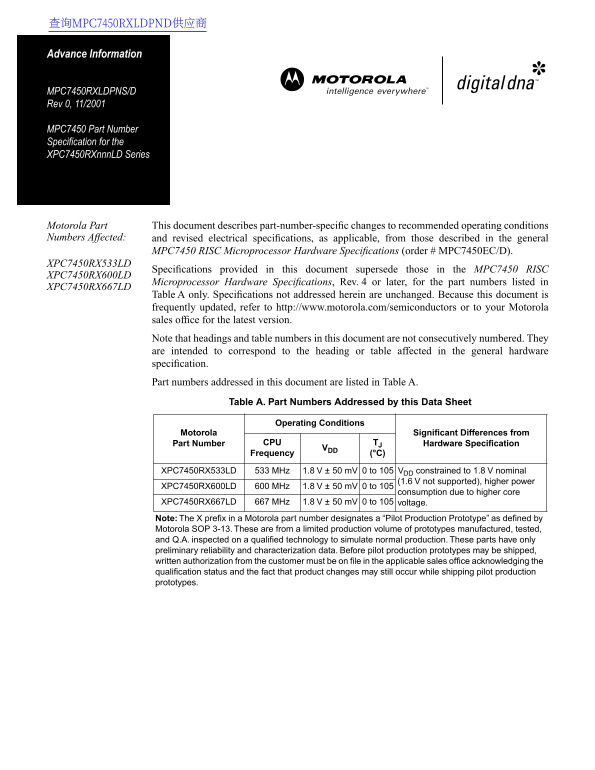

Advance Information

MPC7450RXLDPNS/D Rev 0, 11/2001

MPC7450 Part Number Specification for the XPC7450RXnnn LD Series

Motorola Part This document describes part-number-specific changes to recommended operating conditions Numbers Affected: and revised electrical specifications, as applicable, from those described in the general

MPC7450 RISC Microprocessor Hardware Specifications (order # MPC7450EC/D).

XPC7450RX533LD

Specifications provided in this document supersede those in the MPC7450 RISC

XPC7450RX600LD

Microprocessor Hardware Specifications , Rev. 4 or later, for the part numbers listed in

XPC7450RX667LD

Table A only. Specifications not addressed herein are unchanged. Because this document is frequently updated, refer to http://www.motorola.com/semiconductors or to your Motorola sales office for the latest version. Note that headings and table numbers in this document are not consecutively numbered. They are intended to correspond to the heading or table affected in the general hardware specification. Part numbers addressed in this document are listed in Table A.

Table A. Part Numbers Addressed by this Data Sheet

Operating Conditions

Motorola Significant Differences from Part Number Hardware Specification CPU

Frequency (°C)

XPC7450RX533LD 533 MHz 1.8 V ± 50 m V 0 to 105 constrained to 1.8 V nominal

DD (1.6 V not supported), higher power

XPC7450RX600LD 600 MHz 1.8 V ± 50 m V 0 to 105

consumption due to higher core

XPC7450RX667LD 667 MHz 1.8 V ± 50 m V 0 to 105 voltage. Note: The X prefix in a Motorola part number designates a “Pilot Production Prototype” as defined by Motorola SOP 3-13. These are from a limited production volume of prototypes manufactured, tested, and Q.A. inspected on a qualified technology to simulate normal production. These parts have only preliminary reliability and characterization data. Before pilot production prototypes may be shipped, written authorization from the customer must be on file in the applicable sales office acknowledging the qualification status and the fact that product changes may still occur while shipping pilot production prototypes.
