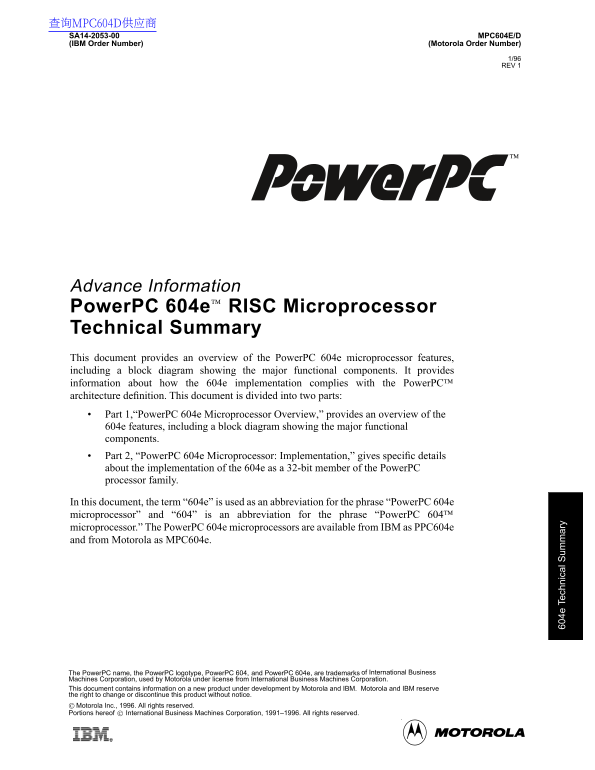

查询MPC604D供应商 SA14-2053-00 MPC604E/D (IBM Order Number) (Motorola Order Number) 1/96 REV 1 Advance Information Power PC 604e RISC Microprocessor Technical Summary This document provides an overview of ...
Page 2
Part 1 Power PC 604e Microprocessor Overview This section describes the features of the 604e, provides a block diagram showing the major functional units, and describes briefly how those units interac...
Page 3
IN IO IT ra ch ro ce ss in ile on di tio et ch er it eg is te I M en am TA Lo gi ca l U ni uf fe rs 8) LR IB rr ay IT LB Ti as In st ru ct io ue ue ou nt er /D ec re en te es er va tio es er va tio (8...
Page 4
1.1.1 New Features of the Power PC 604e Processor Features of the 604e that are not implemented in the 604 are as follows: Additional special-purpose registers HID1 provides four read-only PLL_CFG bit...
Page 5
Support for additional processor/bus clock ratios (5:2 and 4:1). Configuration of the processor/ bus clock ratios is displayed through a new 604e-specific register, HID1. To support the changes in the...
Page 6
Three-stage floating-point unit (FPU) Fully IEEE 754-1985-compliant FPU for both single- and double-precision operations Supports non-IEEE mode for time-critical operations Fully pipelined, single-pas...
Page 7
Caches can be locked Parity checking performed on both caches Data cache coherency (MESI) maintained in hardware Secondary data cache support provided Instruction cache coherency maintained in hardwar...
Page 8
Performance monitor can be used to help in debugging system designs and improving software efficiency, especially in multiprocessor systems. In-system testability and debugging features through JTAG b...
Page 9
1.2.1 Instruction Flow Several units on the 604e ensure the proper flow of instructions and operands and guarantee the correct update of the architectural machine state. These units include the follow...
Page 10
The 512-entry BHT provides two bits per entry, indicating four levels of dynamic prediction—strongly not- taken, not-taken, taken, and strongly taken. The history of a branch’s direction is maintained...
Page 11
The instruction is retired from the reorder buffer when it has finished execution and all instructions ahead of it have been completed. The instruction’s result is written into the appropriate registe...
Page 12
1.2.8.2 Floating-Point Unit (FPU) The FPU, shown in Figure 1 and Figure 2, is a single-pass, double-precision execution unit; that is, most single- and double-precision operations require only a singl...
Page 13
Address translations are enabled by setting bits in the MSR—MSR[IR] enables instruction address translations and MSR[DR] enables data address translations. The 604e’s MMUs support up to 4 Petabytes (2...
Page 14
cache block flush ( dcbf ) instruction, and cache block clean operations resulting from the data cache block store ( dcbst ) instruction. To ensure cache coherency, the 604e data cache supports the fo...
Page 15
1.2.11 System Interface/Bus Interface Unit (BIU) The 604e provides a versatile bus interface that allows a wide variety of system design options. The interface includes a 72-bit data bus (64 bits of d...
Page 16
as three address tenures to be outstanding before a data tenure is initiated. Address tenures for address-only transactions can exceed this limit. Typically, memory accesses are weakly-ordered. Sequen...
Page 17
Data arbitration signals—The 604e uses these signals to arbitrate for data bus mastership. Data transfer signals—These signals, which consist of the data bus, data parity, and data parity error signal...
Page 18
BUS REQUEST DATA BUS GRANT ADDRESS BUS GRANT DATA BUS WRITE ONLY DATAARBITRATION ADDRESS BUS BUSY DATA BUS BUSY ARBITRATION ADDRESS TRANSFER START DATA START EXTENDED TRANSFER START DATA PARITY DATA P...
Page 19
The 604e supports the following processor-to-bus clock frequency ratios—1:1, 3:2, 2:1, 5:2, 3:1, and 4:1, although not all ratios are available for all frequencies. Configuration of the processor/bus ...
Page 20
The Power PC architecture consists of the following layers, and adherence to the Power PC architecture can be measured in terms of which of the following levels of the architecture is implemented: Pow...
Page 21
SUPERVISOR MODEL OEA USER MODEL Configuration Registers UISA Machine State Hardware Implementation PLL Configuration Register Dependent Register1 Register1 General-Purpose Registers MSR SPR 1008HID0 S...
Page 22
Power PC processors have two levels of privilege—supervisor mode of operation (typically used by the operating environment) and one that corresponds to the user mode of operation (used by application ...
Page 23
2.1.1.6 Segment Registers (SRs) For memory management, 32-bit Power PC implementations use sixteen 32-bit segment registers (SRs). 2.1.1.7 Special-Purpose Registers (SPRs) The Power PC operating envir...
Page 24
subdivision of the processor clock frequency. In the 604e. the time base frequency is 1/4th of the bus clock frequency (as is the decrementer frequency). Counting is enabled by the Time Base Enable (T...
Page 25
Logical instructions Integer rotate and shift instructions Floating-point instructions—These include floating-point computational instructions, as well as instructions that affect the FPSCR. Floating-...
Page 26
The TLB Synchronize (tlbsync) instruction ensures that all tlbie instructions previously executed by the processor that issued the tlbsync instruction have completed. Processor control instructions—Th...
Page 27
Effective address computations for both data and instruction accesses use 32-bit unsigned binary arithmetic. A carry from bit 0 is ignored in the 604e. 2.1.3 Exception Model The following subsections ...
Page 28
Asynchronous—The OEA portion of the Power PC architecture defines two types of asynchronous exceptions: Asynchronous, maskable—The Power PC architecture defines the external interrupt and decrementer ...
Page 29
The 604e’s exceptions, and conditions that cause them, are listed in Table 2. Table 2. Exceptions and Conditions Exception Vector Offset Causing Conditions Type (hex) Reserved 00000 System reset A sys...
Page 30
Table 2. Exceptions and Conditions (Continued) Exception Vector Offset Causing Conditions Type (hex) External An external interrupt occurs when the external interrupt signal, INT, is asserted. interru...
Page 31
Table 2. Exceptions and Conditions (Continued) Exception Vector Offset Causing Conditions Type (hex) Reserved 00E10–00EFF Not implemented on the 604e. Performance 00F00 The performance monitoring inte...
Page 32
Fetch (IF) Decode (ID) (Four-instruction dispatch per clock in Dispatch (DS) any combination) Execute Stage SCIU1 SCIU2 FPU BPUCPU LSUMCIU Complete (C) Writeback (W) Figure 7. Pipeline Diagram The com...
Page 33
The execution unit reports any internal exceptions to the completion stage and continues execution, regardless of the exception. Under some circumstances, results can be written directly to the target...
Page 34
Information in this document is provided solely to enable system and software implementers to use Power PC microprocessors. There are no express or implied copyright or patent licenses granted hereund...
