LINEAR LT5515 Data Sheet & Board-Level Design Issues & Considerations

Summary

This essential guide provides detailed board-level design considerations for integrating the high-performance LT5515 Direct Conversion Receiver IC. It is designed for RF and electronics engineers responsible for PCB layout. The document covers crucial signal integrity topics, such as managing local oscillator (LO) leakage to Baseband and RF ports, addressing component placement issues, and optimizing ground planes to maximize receiver performance and minimize parameter degradation.

📄 Preview PAGE OF 3

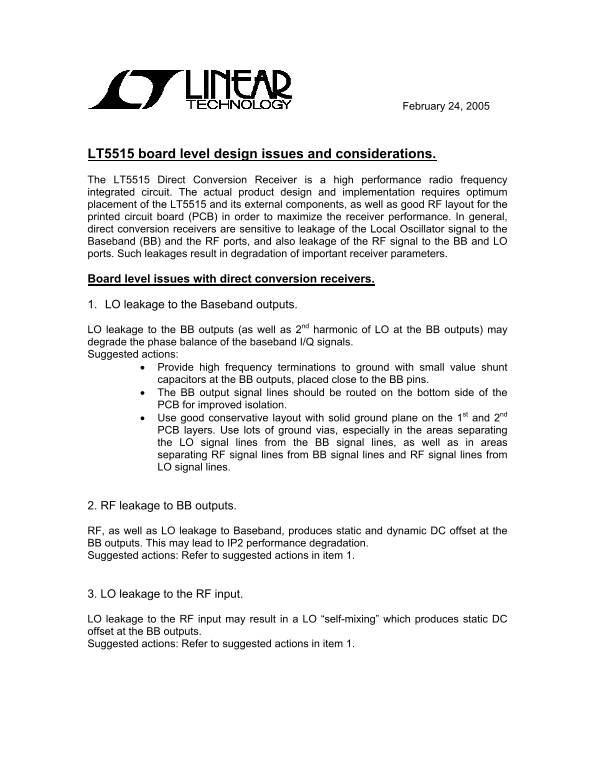

Page 1 Text Content

February 24, 2005

LT5515 board level design issues and considerations. The LT5515 Direct Conversion Receiver is a high performance radio frequency integrated circuit. The actual product design and implementation requires optimum placement of the LT5515 and its external components, as well as good RF layout for the printed circuit board (PCB) in order to maximize the receiver performance. In general, direct conversion receivers are sensitive to leakage of the Local Oscillator signal to the Baseband (BB) and the RF ports, and also leakage of the RF signal to the BB and LO ports. Such leakages result in degradation of important receiver parameters.

Board level issues with direct conversion receivers.

1. LO leakage to the Baseband outputs.

LO leakage to the BB outputs (as well as 2nd harmonic of LO at the BB outputs) may degrade the phase balance of the baseband I/Q signals. Suggested actions:

• Provide high frequency terminations to ground with small value shunt capacitors at the BB outputs, placed close to the BB pins. • The BB output signal lines should be routed on the bottom side of the PCB for improved isolation. • Use good conservative layout with solid ground plane on the 1st and 2nd PCB layers. Use lots of ground vias, especially in the areas separating the LO signal lines from the BB signal lines, as well as in areas separating RF signal lines from BB signal lines and RF signal lines from LO signal lines.

2. RF leakage to BB outputs.

RF, as well as LO leakage to Baseband, produces static and dynamic DC offset at the BB outputs. This may lead to IP2 performance degradation. Suggested actions: Refer to suggested actions in item 1.

3. LO leakage to the RF input.

LO leakage to the RF input may result in a LO “self-mixing” which produces static DC offset at the BB outputs. Suggested actions: Refer to suggested actions in item 1.

Page Summary Contents For LINEAR LT5515 Data Sheet & Board-Level Design Issues & Considerations

Page 1 February 24, 2005 LT5515 board level design issues and considerations. The LT5515 Direct Conversion Receiver is a high performance radio frequency integrated circuit. The actual product design and imp...
Page 2 4. RF leakage to the LO port. RF leakage to the LO port may result in IP2 degradation. If a large signal interferer leaks from the RF input to the LO port, it can thereby mix with itself. This may pro...
Page 3 No ground plane below designated area on layers 2 & 3 Figure 1

Manual Details

Brand Linear
Pages 3
File Size 156.30 KB
Published June 03, 2026
23 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How should I route Baseband signal lines for improved isolation?

The BB output signal lines should be routed on the bottom side of the PCB layer.

What are general guidelines for ground plane usage and vias?

Use a solid ground plane on both layers 1 and 2, incorporating many ground vias, especially where signal types separate.

Where must bypass capacitors relative to the IC pins be placed?

Bypass capacitors (from V to ground) should be placed as closely as possible to the designated V pins of the IC.

What layout modification is required near the RF input section?

The area surrounding the IC’s RF inputs and their connecting traces should not have any ground plane on layers 2 and 3.
