LG Washing Machine - Top Load WD-VH251F5.ACN Product Specifications Chinese
Summary
Essential technical drawing and comprehensive manufacturing specification manual for LG electronic appliance components. This document provides engineers, product developers, and suppliers with precise guidelines covering material standards, dimensions, model configurations, and specialized printing requirements. It details multiple component variations and ensures strict compliance with global environmental regulations concerning restricted substances, making it an indispensable reference tool for high-quality electronics production and quality assurance processes.
Page 1 Text Content

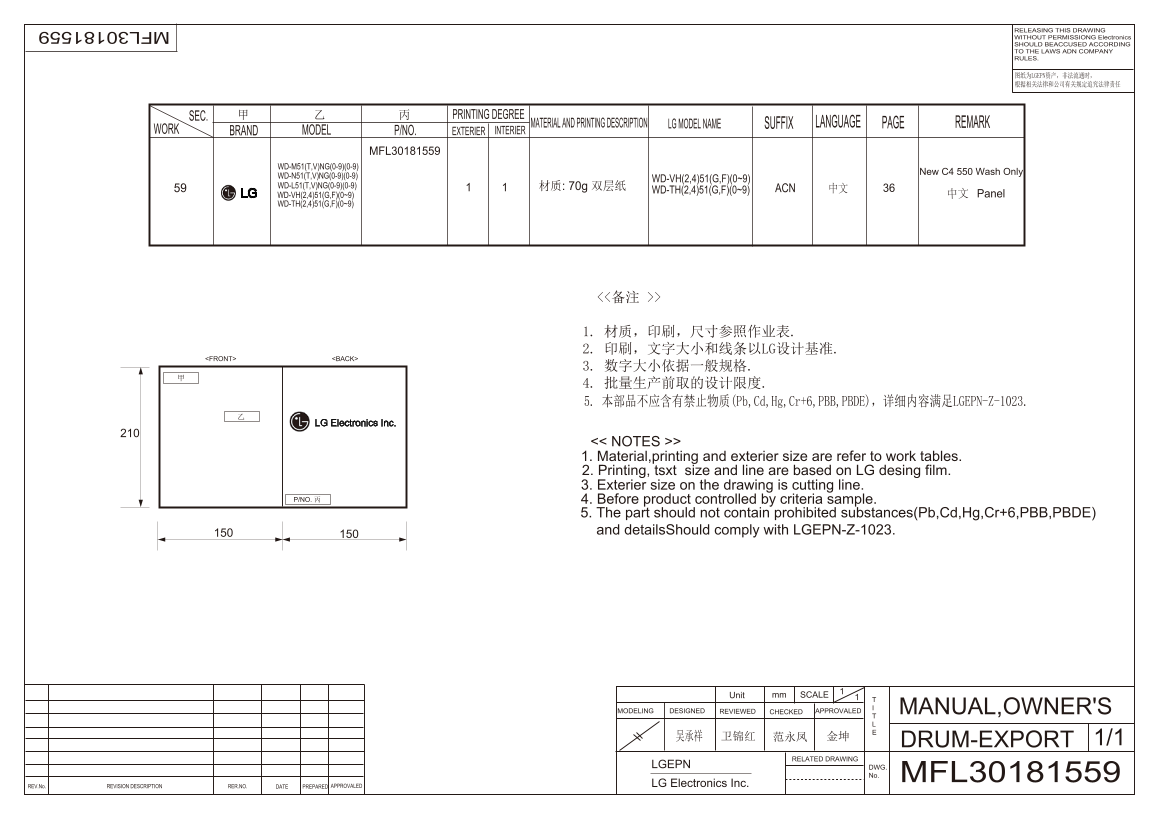

RELEASING THIS DRAWING WITHOUT PERMISSIONG Electronics SHOULD BEACCUSED ACCORDING TO THE LAWS ADN COMPANY RULES.
图纸为LGEPN资产，非法流通时， 根据相关法律和公司有关规定追究法律责任
SEC. PRINTING DEGREE
MATERIAL AND PRINTING DESCRIPTION LG MODEL NAME SUFFIX LANGUAGE PAGE REMARK
BRANDWORK MODEL P/NO. EXTERIER INTERIER
MFL30181559
WD-M51(T,V)NG(0-9)(0-9)
New C4 550 Wash Only
WD-N51(T,V)NG(0-9)(0-9)
WD-VH(2,4)51(G,F)(0~9)
WD-L51(T,V)NG(0-9)(0-9) 材质: 70g 双层纸
WD-TH(2,4)51(G,F)(0~9) 中文 36ACN
LG WD-VH(2,4)51(G,F)(0~9) 中文 Panel WD-TH(2,4)51(G,F)(0~9)
1. 材质，印刷，尺寸参照作业表. 2. 印刷，文字大小和线条以LG设计基准.
<FRONT> <BACK>
3. 数字大小依据一般规格. 4. 批量生产前取的设计限度. 5. 本部品不应含有禁止物质(Pb,Cd,Hg,Cr+6,PBB,PBDE)，详细内容满足LGEPN-Z-1023.
LG Electronics Inc.
<< NOTES >> 1. Material,printing and exterier size are refer to work tables. 2. Printing, tsxt size and line are based on LG desing film. 3. Exterier size on the drawing is cutting line.
P/NO. 丙 4. Before product controlled by criteria sample.
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE) and details Should comply with LGEPN-Z-1023.
Unit mm SCALE
MODELING DESIGNED REVIEWED CHECKED APPROVALED MANUAL,OWNER'S
DRUM-EXPORT
RELATED DRAWING
LGEPN DWG.
No. MFL30181559
REV.No. REVISION DESCRIPTION APPROVALEDRER.NO. LG Electronics Inc. MFL30181559
DATE PREPARED
