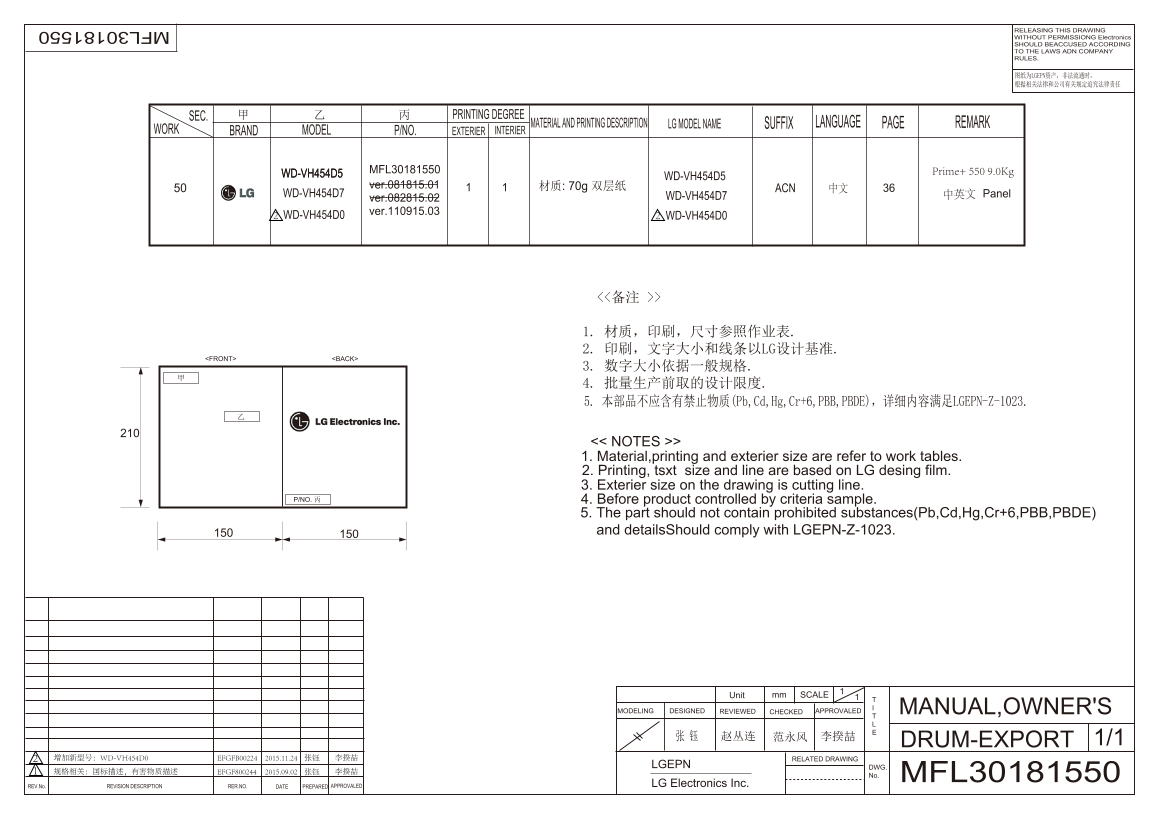

RELEASING THIS DRAWING WITHOUT PERMISSIONG Electronics SHOULD BEACCUSED ACCORDING TO THE LAWS ADN COMPANY RULES.
图纸为LGEPN资产，非法流通时， 根据相关法律和公司有关规定追究法律责任
SEC. PRINTING DEGREE
MATERIAL AND PRINTING DESCRIPTION LG MODEL NAME SUFFIX LANGUAGE PAGE REMARK
BRANDWORK MODEL P/NO. EXTERIER INTERIER
MFL30181550 Prime+ 550 9.0Kg
WD-VH454D5
WD-VH454D5
ver.081815.01 材质: 70g 双层纸
中文 36ACN
WD-VH454D7 中英文 Panel
ver.082815.02 WD-VH454D7
ver.110915.03
WD-VH454D0 WD-VH454D0
1. 材质，印刷，尺寸参照作业表. 2. 印刷，文字大小和线条以LG设计基准.
<FRONT> <BACK>
3. 数字大小依据一般规格. 4. 批量生产前取的设计限度. 5. 本部品不应含有禁止物质(Pb,Cd,Hg,Cr+6,PBB,PBDE)，详细内容满足LGEPN-Z-1023.
<< NOTES >> 1. Material,printing and exterier size are refer to work tables. 2. Printing, tsxt size and line are based on LG desing film. 3. Exterier size on the drawing is cutting line.
P/NO. 丙 4. Before product controlled by criteria sample.
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE) and details Should comply with LGEPN-Z-1023.
Unit mm SCALE
MODELING DESIGNED REVIEWED CHECKED APPROVALED MANUAL,OWNER'S
DRUM-EXPORT
增加新型号：WD-VH454D0 EFGFB00224 2015.11.24 张钰 李揆喆 RELATED DRAWING
LGEPN DWG.
规格相关：国标描述，有害物质描述 EFGF800244 2015.09.02 张钰 李揆喆
No. MFL30181550
REV.No. REVISION DESCRIPTION APPROVALEDRER.NO. LG Electronics Inc. MFL30181550
DATE PREPARED
