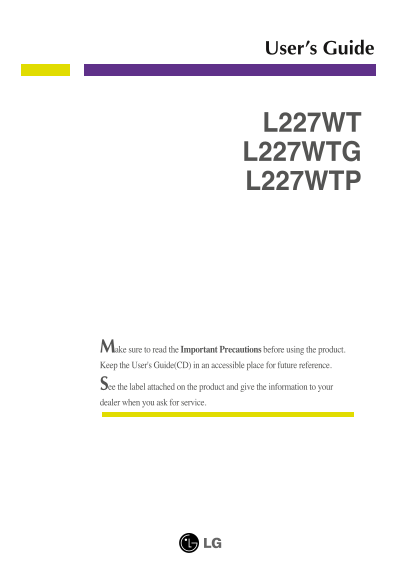

User’s Guide
L227WT L227WTG L227WTP
Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and give the information to your dealer when you ask for service.
Page Summary Contents For LG L227WTP-PF ACN Product Specification English
Page 1
User’s Guide L227WT L227WTG L227WTP Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached ...
Page 2
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow th...
Page 3
Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display ne...
Page 4
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand 1. Place the monitor wit...
Page 5
Connecting the Display Disassembling the stand 1. Put a cushion or soft cloth on a flat 2. Place the monitor face down on surface. the cushion or soft cloth. 3. Slide the Cable Deco Cover out from the...
Page 6
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display 1. Adjust the positi...
Page 7
Connecting the Display Using the Computer 1. Make sure to turn off the computer and product. Connect the cable as below sketch map form to .1 Connect DVI Cable Connect Dsub Cable (PC) Connect Dsub Cab...
Page 8
Control Panel Functions Front Panel Controls Control Function At the current display, Use 'ez Zooming' Key, then the display ZOOMING resolution is transferred to the one step low resolution. Use 'ez Z...
Page 9
Control Panel Functions Control Function Use these buttons to select or adjust functions in the On + Buttons Screen Display. For more information, refer to page A15. Use this button to make D-Sub or D...
Page 10
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control...
Page 11
On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu A D Reference PICTURE BRIGHTNESS To a...
Page 12
On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descripti...
Page 13
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE BRIGHTNESS To adjust the brightness of the screen. CONTRAST To adjust the contrast of the screen. GAMMA Set your ...
Page 14
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description POSITION HORIZONTAL To move image left and right. VERTICAL To move image up and down. MENU : Exit : Decrease : Increase S...
Page 15
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description LANGUAGE To choose the language in which the control names are displayed. SETUP OSD To adjust position of the OSD window ...
Page 16
On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the button on the left side of the monitor. Menu Name Icons Sub-menu Name FLATRON F-ENGINE Screen when applied...
Page 17
Troubleshooting Check the following before calling for service. No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet...
Page 18
Troubleshooting Display image is incorrect Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory...
Page 19
Troubleshooting Display image is incorrect The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video c...
Page 20
Specifications 22 inches (55.8 cm) Flat Panel Active matrix-TFT LCD Display Anti-Glare coating 22 inches viewable 0.282*0.282 mm pixel pitch Sync Input Horizontal Freq. Analog : 30 - 83 k Hz (Automati...
Page 21
Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (k Hz) Vertical Freq. (Hz) *Recommend Mode Indicator LED Color MODE On Mode blue Sleep Mode amber Off Mode Off
Page 22
Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. 1. Place the monitor with its front facing downward on a soft cloth. 2. Sep...
Page 23
