LG 19-inch N1642W-PF ATR Product Specification Manual English
Summary
Experience reliable visual performance with this Network Monitor. This comprehensive guide provides essential instructions for safe installation, proper operation, and maintenance of your unit. It covers safety precautions, technical specifications, recommended resolutions, and setup tips, ensuring that both first-time users and professionals can achieve optimal image quality in any demanding environment.
Page 1 Text Content

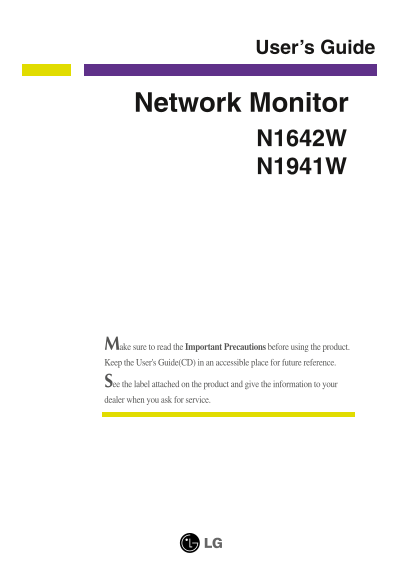

User’s Guide
Network Monitor
Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and give the information to your dealer when you ask for service.
Page Summary Contents For LG 19-inch N1642W-PF ATR Product Specification Manual English
Page 1
User’s Guide Network Monitor Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the ...
Page 2
Accessories !!! Thank for selecting LGE products !!! Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. User's Guide/Cards Power Cord 1...
Page 3
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow th...
Page 4
Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display ne...
Page 5
Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because o...
Page 6
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand 1. Place the monitor wit...
Page 7
Connecting the Display Disassembling the stand 1. Put a cushion or soft cloth on a flat 2. Place the monitor face down on the surface. cushion or soft cloth. 3. Change your lock on the product as it f...
Page 8
Connecting the Display 5. Pushing the PUSH button, take the stand base from stand body. Warning: You can hurt your finger. Good Position Bad Position Before setting up the monitor, ensure that the pow...
Page 9
Connecting the Display Using the Computer NOTE This is a simplified representation of the rear view. This rear view represents a general model; your display may differ from the view as shown. 1. Conne...
Page 10
Connecting the Display Using the Monitor 1. Make sure to turn off the computer and product. Connect the cable as below sketch map form to .1 Connect peripheral devices Connect LAN Cable (X550 port) An...
Page 11
Connecting the Display NOTE LAN Cable -For the LAN cable,it is recommended to use SFTP(recommend : 6m,max : 10m) provided by LG. Image quality and some functionality may be degraded if a different LAN...
Page 12
Connecting the Display Connecting to a X550 port using a LAN cable. Notice Turning the power off while booting the PC may damage the product. Turning the power off while booting the PC may cause it to...
Page 13
Control Panel Functions Front Panel Controls Control Function X-PORT : This menu is available, use this button to MUTE Button switch the sound on or off. <mute off> <mute on> D-sub : This ...
Page 14
Control Panel Functions Control Function Use these buttons to select or adjust functions in the SOURCE On Screen Display. Use this button to make either D-Sub or X-PORT connector active. This feature ...
Page 15
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control...
Page 16
On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. ( : Adjustable A : D-SUB Input X : X-PORT Input ) Main m...
Page 17
On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descripti...
Page 18
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE PICTURE BRIGHTNESS To adjust the brightness of the screen. CONTRAST To adjust the contrast of the screen. GAMMA S...
Page 19
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description POSITION POSITION POSITION HORIZONTAL To move image left and right. VERTICAL To move image up and down. MENU : Exit : Dec...
Page 20
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description LANGUAGE To choose the language in which the SETUPSETUP control names are displayed. OSD To adjust position of the OSD wi...
Page 21
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description MOVIE This feature lets you easily select the best desired INTERNET image condition optimized to the environment USER (am...
Page 22
Troubleshooting Check the following before calling for service. No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet...
Page 23
Troubleshooting Display image is incorrect Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory...
Page 24
Troubleshooting Display image is incorrect The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video c...
Page 25
Specifications N1642W Display 15.6 inches (39.6 cm) Flat Panel Active matrix-TFT LCD, Anti- Glare coating Visible diagonal size: 39.6 cm 0.252*0.252 mm pixel pitch Sync Input Horizontal Freq. 30 - 66 ...
Page 26
Specifications N1941W Display 18.51 inches (47.0 cm) Flat Panel Active matrix-TFT LCD, Anti-Glare coating Visible diagonal size: 47.0 cm 0.30*0.30 mm pixel pitch Sync Input Horizontal Freq. 30 - 66 k ...
Page 27
Specifications D-SUB Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (k Hz) Vertical Freq. (Hz) *Recommend Mode X-PORT Preset Modes (Resolution) Display Modes (Resolution) 800 x ...
Page 28
Installing the Wall mount plate (Only for N1941W) This monitor satisfies the specifications of the Wall mount plate or the interchange device. 1. Place the monitor with its front facing downward on a ...
Page 29
