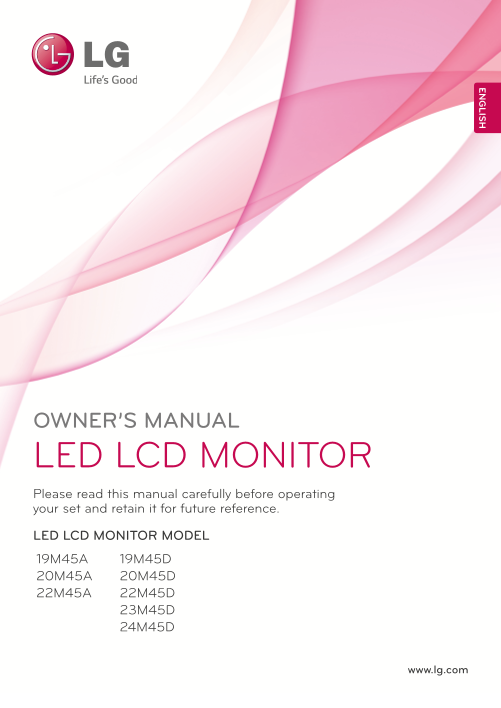

OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODEL 19M45A 19M45D 20M45A 20M45D 22M45A 22M45D
www.lg.com
Page Summary Contents For LG 20" to 29" General Display 20M45A-B ACN Product Specification English
Page 1
EN LIS OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODEL 19M45A 19M45D 20M45A 20M45D 22M45A 22M45D ww...
Page 2
TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPAR- 21 TROUBLESHOOTING ING 3 Unpacking 23 SPECIFICATIONS 4 Parts and buttons 5 Setting up the Monitor set 23 19M45A 5 - Attaching the Stand Base 24 19M4...
Page 3
EN EN LIS ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased...
Page 4
ASSEMBLING AND PREPARING Parts and buttons Power Indicator Lighting On: Turned on Lighting Off: Turned off (Power Button) Button (See p.11) EN EN LIS Connection panel (See p.9)
Page 5
EN EN LIS ASSEMBLING AND PREPARING Setting up the Monitor set Detaching the Stand Base Attaching the Stand Base 1 Place the Monitor set with the screen side down on a flat and cushioned surface. 1 Pla...
Page 6
ASSEMBLING AND PREPARING Mounting on a table 3 Press (Power) button on the bottom switch panel to turn the power on. 1 Lift and tilt the Monitor set into its upright position on a table. Leave a 10 cm...
Page 7
EN EN LIS ASSEMBLING AND PREPARING WARNING Using the Kensington security system The Kensington security system connector is When you adjust the angle, do not hold the bottom of the Monitor set frame a...
Page 8
ASSEMBLING AND PREPARING Mounting on a wall Model 19M45A 22M45A 24M45D For proper ventilation, allow a clearance of 10 cm 19M45D 22M45D on each side and from the wall. Detailed instructions are availa...
Page 9
EN EN LIS USING THE MONITOR SET USING THE MONITOR SET Connecting to a PC When using a D-Sub signal input cable Your Monitor set supports Plug & Play*. connector for Macintosh *Plug & Play: A P...
Page 10
USING THE MONITOR SET Self Image Setting Function CAUTION Press the power button on the bottom panel to turn the power on. When monitor power is turned Connect the signal on, the "Self Image Sett...
Page 11
EN EN LIS CUSTOMIZING SETTINGS CUSTOMIZING SETTINGS 1 Press the desired button on the bottom of the Monitor set. 2 Change the value of the menu item by pressing the buttons on the bottom of the Monito...
Page 12
CUSTOMIZING SETTINGS Customizing Settings Menu Settings 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Set the options by pressing the ◄ or ► or ▼ buttons. 3 Select th...
Page 13
EN EN LIS CUSTOMIZING SETTINGS Picture 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Ente...
Page 14
CUSTOMIZING SETTINGS Color 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Select Color by ...
Page 15
EN EN LIS CUSTOMIZING SETTINGS Display 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Sele...
Page 16
CUSTOMIZING SETTINGS Others 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Select Others b...
Page 17
EN EN LIS CUSTOMIZING SETTINGS READER Setting 1 Press READER button on the bottom of the Monitor set to display the Reader Mode OSD. 2 Set the options by pressing the ◄ buttons. Each option is explain...
Page 18
CUSTOMIZING SETTINGS FUNC. Setting SUPER ENERGY SAVING 1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD. 2 Enter to SUPER ENERGY SAVING by pressing the ▼ button. 3 Set th...
Page 19
EN EN LIS CUSTOMIZING SETTINGS Picture Mode 1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD. 2 Select Picture Mode by pressing the ► button. 3 Enter to Picture Mode by p...
Page 20
CUSTOMIZING SETTINGS * Before using below functions, please install DUAL SMART SOLUTION programme. DUAL DISPLAY 1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD. 2 Select...
Page 21
EN EN LIS TROUBLESHOOTING TROUBLESHOOTING Check the following before calling for service. No image appears Is the power cord of the display Check and see if the power cord is connected properly to the...
Page 22
TROUBLESHOOTING CAUTION Check Control Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution. If the recommende...
Page 23
EN EN LIS SPECIFICATIONS SPECIFICATIONS 19M45A Display Screen Type 47.0 cm (18.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 47.0 cm Pixel Pitch 0.3 mm x 0.3 mm (P...
Page 24
SPECIFICATIONS SPECIFICATIONS 19M45D Display Screen Type 47.0 cm (18.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 47.0 cm Pixel Pitch 0.3 mm x 0.3 mm (Pixel Pitch...
Page 25
EN EN LIS SPECIFICATIONS SPECIFICATIONS 20M45A Display Screen Type 49.5 cm (19.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 49.5 cm Pixel Pitch 0.2712 mm x 0.2626...
Page 26
SPECIFICATIONS SPECIFICATIONS 20M45D Display Screen Type 49.5 cm (19.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 49.5 cm Pixel Pitch 0.2712 mm x 0.2626 mm (Pixel...
Page 27
EN EN LIS SPECIFICATIONS SPECIFICATIONS 22M45A Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 54.6 cm Pixel Pitch 0.248 mm x 0.248 m...
Page 28
SPECIFICATIONS SPECIFICATIONS 22M45D Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 54.6 cm Pixel Pitch 0.247 mm x 0.247 mm (Pixel P...
Page 29
EN EN LIS SPECIFICATIONS SPECIFICATIONS 23M45D Display Screen Type 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 58.4 cm Pixel Pitch 0.265 mm x 0.265 mm ...
Page 30
SPECIFICATIONS SPECIFICATIONS 24M45D Display Screen Type 60.0 cm (23.6 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 60.0 cm Pixel Pitch 0.272 mm x 0.272 mm (Pixel P...
Page 31
EN EN LIS SPECIFICATIONS Preset Modes (Resolution) 19M45A/19M45D Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(k Hz) Frequency(Hz) 720 x 400 31.468 640 x 480 31.469 640 x 480 ...
Page 32
SPECIFICATIONS Indicator Mode LED Color On Mode White Sleep Mode Blinking White Off Mode Off EN EN LIS
Page 33
EN EN LIS PROPER POSTURE PROPER POSTURE Proper posture for using the Monitor set. Adjust the Adjust the location of the Monitor set and Monitor set to avoid it your posture to reflecting light. allow ...
Page 34
Declaration of Conformity Trade Name: LG Model : 19M45AA,19M45DA,20M45ASA, 20M45DSA,22M45AA,22M45DA, 23M45DA,24M45DA Responsible Party: LG Electronics Inc. Address : 1000 Sylvan Ave. Englewood Cliffs ...
