LG 20~29 inch Monitor 24EA53V-P.ACN Product Specification English
Summary
Introducing the professional LED LCD Monitor, designed for reliable high-definition visual performance. This comprehensive manual guides you through every aspect of ownership, from initial unboxing and stand setup to advanced system configuration. You will learn how to connect easily via HDMI or DVI-D, customize picture modes, optimize settings, and ensure proper ergonomic usage for professional or home computing environments.
Page 1 Text Content
EN LIS

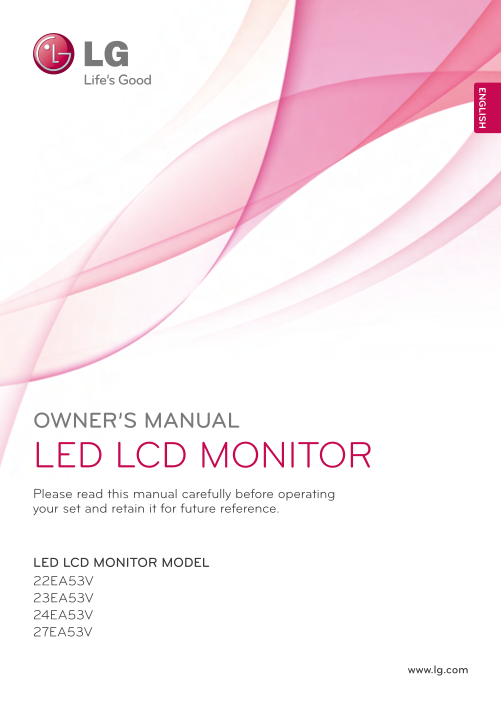

OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference.
LED LCD MONITOR MODEL 22EA53V 23EA53V 24EA53V 27EA53V
www.lg.com
Page Summary Contents For LG 20~29 inch Monitor 24EA53V-P.ACN Product Specification English
Page 1
EN LIS OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODEL 22EA53V 23EA53V 24EA53V 27EA53V www.lg.com
Page 2
TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPAR- 23 TROUBLESHOOTING ING 3 Unpacking 25 SPECIFICATIONS 4 Parts and buttons 25 22EA53V 5 Setting up the Monitor set 26 23EA53V 5 - Attaching the Stand ...
Page 3
EN EN LIS ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased...
Page 4
ASSEMBLING AND PREPARING Parts and buttons Power Indicator Lighting On: Turned on Lighting Off: Turned off (Power Button) Button (See p.12) EN EN LIS DC-IN D-SUBDVI-D Connection panel (See p.10)
Page 5
EN EN LIS ASSEMBLING AND PREPARING Setting up the Monitor set 27EA53V Attach the Stand Body to the monitor set. Attaching the Stand Base Use two screws to fix the Stand Body and monitor set. 1 Place t...
Page 6
ASSEMBLING AND PREPARING Detaching the Stand Base 27EA53V Turn the screw to the left with a coin. 1 Place the Monitor set with the screen side Pull out the Stand Base from the Stand Body. down on a fl...
Page 7
EN EN LIS ASSEMBLING AND PREPARING Mounting on a table 3 Press (Power) button on the bottom switch panel to turn the power on. 1 Lift and tilt the Monitor set into its upright position on a table. Lea...
Page 8
ASSEMBLING AND PREPARING WARNING Using the Kensington security system The Kensington security system connector is When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on...
Page 9
EN EN LIS ASSEMBLING AND PREPARING Mounting on a wall Model 22EA53V 24EA53V 23EA53V 27EA53V For proper ventilation, allow a clearance of 10 cm VESA (A x B) 75 x 75 100 x 100 on each side and from the ...
Page 10
USING THE MONITOR SET USING THE MONITOR SET Connecting to a PC DVI-D connection Transmits a digital video signal from your PC to Your Monitor set supports Plug & Play*. the Monitor set. Connect th...
Page 11
EN EN LIS USING THE MONITOR SET Self Image Setting Function CAUTION Press the power button on the bottom panel to turn the power on. When monitor power is turned Connect the signal on, the "Self ...
Page 12
CUSTOMIZING SETTINGS CUSTOMIZING SETTINGS 1 Press the desired button on the bottom of the Monitor set. 2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set. To ...
Page 13
EN EN LIS CUSTOMIZING SETTINGS Customizing Settings Menu > Next Menu > Color Menu Settings Gamma Gamma 1 2/3 Color Temp Custom 1/4 1 Press MENU button on the bottom of the Monitor set 50Red to d...
Page 14
CUSTOMIZING SETTINGS Picture 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more Menu > Next Menu > Color op...
Page 15
EN EN LIS CUSTOMIZING SETTINGS Color 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. Menu > Next Menu > Color 2 Select the "Next Menu" button to enter the...
Page 16
CUSTOMIZING SETTINGS Display 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. Menu > Next Menu > Color 2 Select the "Next Menu" button to enter the more Ga...
Page 17
EN EN LIS CUSTOMIZING SETTINGS Others 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. Menu > Next Menu > Color 2 Select the "Next Menu" button to enter th...
Page 18
Menu > Next Menu > Color Gamma Gamma 1 2/3 Color Temp Custom 1/4 50Red 50Green 50Blue Menu > Next Menu > Color Gamma Gamma 1 2/3 Color Temp Custom 1/4 FUNC. > DUAL WEB 50Red 50Green 50B...
Page 19
Menu > Next Menu > Color Gamma Gamma 1 2/3 Color Temp Custom 1/4 50Red 50Green 50Blue EN EN LIS CUSTOMIZING SETTINGS FUNC. Setting Menu > Next Menu > Color Picture Mode FUNC. > DUAL WEB...
Page 20
Menu > Next Menu > Color Gamma Gamma 1 2/3 Color Temp Custom 1/4 50Red 50Green CUSTOMIZING SETTINGS 50Blue SUPER ENERGY SAVING 1 Press FUNC. button on the bottom of the Monitor set to display th...
Page 21
Menu > Next Menu > Color Gamma Gamma 1 2/3 Color Temp Custom 1/4 50Red EN 50Green EN LIS 50Blue CUSTOMIZING SETTINGS * Before using below functions, please install DUAL SMART SOLUTION programme....
Page 22
Menu > Next Menu > Color Gamma Gamma 1 2/3 Color Temp Custom 1/4 50Red 50Green 50Blue CUSTOMIZING SETTINGS MY KEY Setting 1 Press FUNC. button on the bottom of the Monitor set to display the FUN...
Page 23
Menu > Next Menu > Color Gamma Gamma 1 2/3 Color Temp Custom 1/4 50Red 50Green EN EN LIS 50Blue TROUBLESHOOTING TROUBLESHOOTING Check the following before calling for service. No image appears F...
Page 24
TROUBLESHOOTING CAUTION Check Control Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution. If the recommende...
Page 25
EN EN LIS SPECIFICATIONS SPECIFICATIONS 22EA53V Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 54.6 cm Pixel Pitch 0.08265 mm x 0.24...
Page 26
SPECIFICATIONS SPECIFICATIONS 23EA53V Display Screen Type 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 58.4 cm Pixel Pitch 0.265 mm x 0.265 mm (Pixel Pi...
Page 27
EN EN LIS SPECIFICATIONS SPECIFICATIONS 24EA53V Display Screen Type 60.4 cm (23.8 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 60.4 cm Pixel Pitch 0.2745 mm x 0.274...
Page 28
SPECIFICATIONS SPECIFICATIONS 27EA53V Display Screen Type 68.5 cm (27 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 68.5 cm Pixel Pitch 0.311 mm x 0.311 mm (Pixel Pi...
Page 29
EN EN LIS SPECIFICATIONS Preset Modes (Resolution) 22EA53V, 23EA53V, 24EA53V, 27EA53V Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(k Hz) Frequency(Hz) 720 x 400 31.468 640 x ...
Page 30
PROPER POSTURE PROPER POSTURE Proper posture for using the Monitor set. Adjust the Adjust the location of the Monitor set and Monitor set to avoid it your posture to reflecting light. allow you to vie...
Page 31
Declaration of Conformity Trade Name: LG Model : 22EA53VA 23EA53VA 24EA53VA 27EA53VA Responsible Party: LG Electronics Inc. Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A TEL: 201-266-2534...
Manual Details
| Brand | LG |
|---|---|
| Pages | 31 |
| File Size | 11.20 MB |
| Published | June 06, 2026 |
41 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I safely set up the monitor on a table?
Power it on, lift and tilt the monitor into an upright position, and ensure there is a minimum 10 cm space from the wall.
Are unapproved accessories safe to use with the monitor?
No, do not use any unapproved accessories as damages or injuries are not covered by the warranty.
What precautions should I take when moving the monitor?
Unplug the power cord before moving it to a different location to prevent electric shock.
Where is the model and serial number located?
The model and serial number are found on the back and one side of the monitor set.
How do I adjust for proper viewing posture?
Adjust the height and position of the monitor to avoid reflecting light, allowing for an optimal viewing angle.
