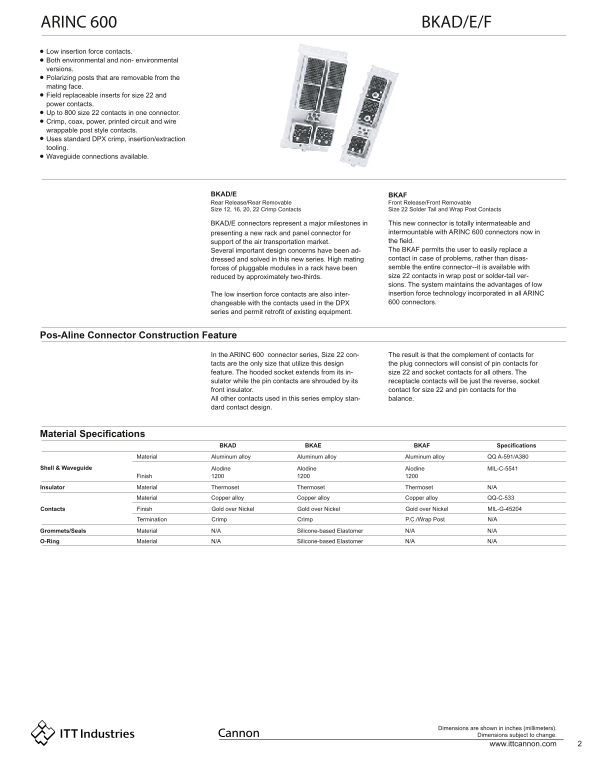

ITT Industries ARINC 600 Quick User Guide
Summary
Discover high-reliability rack and panel connectors designed for modern air transportation markets. This durable ARINC 600 series facilitates seamless upgrades and retrofitting, featuring low insertion force contacts across multiple sizes (12 to 22). The comprehensive manual details technical specifications, robust build quality, material standards (including gold over nickel finishes), and ordering procedures necessary for integrating industry-leading avionic connectivity solutions.
Manual Details
| Brand | ITT |
|---|---|
| Pages | 19 |
| File Size | 866.73 KB |
| Published | May 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What contact sizes and types are supported by the new BKAD/E connectors?
They support size 12, 16, 20, and 22 crimp contacts, as well as coax, power, printed circuit, and wire wrappable post style contacts.
How does this connector series improve upon previous designs in the ARINC 600 family?
The new series reduces high mating forces by approximately two-thirds while maintaining advantages like low insertion force technology.
Can existing equipment be updated or integrated with these connectors?
Yes, they are totally intermateable and intermountable with ARINC 600 connectors, allowing for the retrofit of existing equipment using the DPX series contacts.
What material specifications are provided for the BKAD/E/F shell and insulators?
The shells use Aluminum alloy (QQ A-591/A380) and the insulating materials are Thermoset. Both feature an Alodine MIL-C-5541 finish.
