HITACHI Silicon Schottky Barrier Diode 1SS108 Data Manual for Various Detectors, High-Speed Switching

Q: 1SS108二极管的最大反向电压是多少？

其最大允许的逆向耐压是30V。

Q: 哪个颜色代表阴极和阳极？

白带表示阴极，黑带表示第二条横带。

Q: 这款二极管的基本性能特点是什么？

它具备良好的探测效率、小温度系数以及高可靠性（带有玻璃密封）。

Summary

This high-reliability Schottky Barrier Diode is engineered for optimum performance in sensitive detector applications and high-speed switching circuits, featuring excellent detection efficiency and a stable temperature coefficient. The provided manual offers comprehensive technical specifications, including detailed absolute maximum ratings, precise electrical characteristics (V-I curves), capacitance measurements, and full package dimensions. It is essential documentation for electronics engineers and design technicians needing reliable power components for advanced sensing and signal conversion systems.

📄 Preview ‹ PAGE OF 5 ›

‹

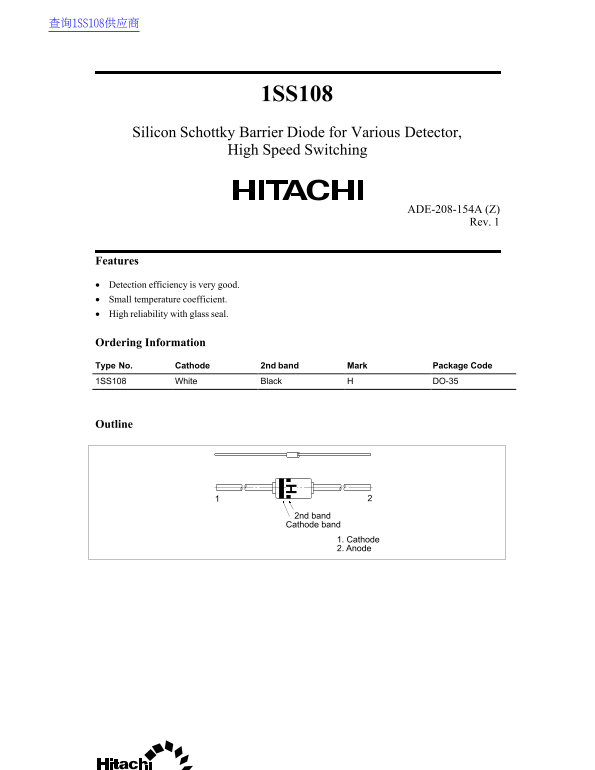

HITACHI Silicon Schottky Barrier Diode 1SS108 Data Manual for Various Detectors, High-Speed Switching - Page 1

›

Page 1 Text Content

查询1SS108供应商

1SS108

Silicon Schottky Barrier Diode for Various Detector,

High Speed Switching

ADE-208-154A (Z)

Rev. 1

Features

• Detection efficiency is very good. • Small temperature coefficient. • High reliability with glass seal.

Ordering Information Type No. Cathode 2nd band Mark Package Code 1SS108 White Black DO-35

Outline

2nd band Cathode band

1. Cathode 2. Anode

Page Summary Contents For HITACHI Silicon Schottky Barrier Diode 1SS108 Data Manual for Various Detectors, High-Speed Switching

Page 1 查询1SS108供应商 1SS108 Silicon Schottky Barrier Diode for Various Detector, High Speed Switching ADE-208-154A (Z) Rev. 1 Features • Detection efficiency is very good. • Small temperature coefficient. • Hi...

Page 2 1SS108 Absolute Maximum Ratings (Ta = 25°C) Item Symbol Value Unit Reverse voltage VR Average rectified current IO m A Junction temperature Tj °C Storage temperature Tstg –55 to +125 °C or ar cu rr en...

Page 3 1SS108 ev er se ur re nt ap ac ita nc p F –4 Reverse voltage V (V)R Fig.2 Reverse current Vs. Reverse voltage f = 1MHz Reverse voltage V (V)R Fig.3 Capacitance Vs. Reverse voltage

Page 4 1SS108 ec tif ie ef fic ie nc 0.5 1.0 1.5 2.0 2.5 3.00 Input voltage Vin (Vrms) Fig.4 Rectifier efficiency Vs. Input voltage

Page 5 1SS108 Package Dimensions Unit: mm 26.0 Min 4.2 Max 26.0 Min Cathode Anode 2nd band (Black) Cathode band (White) HITACHI Code DO-35 JEDEC Code DO-35 2. ax EIAJ Code SC-48 Weight (g) 0.13

Manual Details

Brand	Hitachi
Pages	5
File Size	17.00 KB
Published	June 03, 2026

20 views

Enter the captcha to get the download link:

Frequently Asked Questions

1SS108二极管的最大反向电压是多少？

其最大允许的逆向耐压是30V。

这个型号可以在多高的接地点温度下工作？

最高的工作结温（Tj）为125°C，存储温度范围是-55到+125°C。

哪个颜色代表阴极和阳极？
