Hasselblad Flextight Slidefeeder User Manual
Summary
Enhance your digitization workflow with this optional Slide Feeder accessory for Flextight 949 and X5 Scanners. Designed to efficiently process large volumes of physical media, it allows users to load individual slides or perform high-capacity batch scans up to 50 images using a removable magazine system. This comprehensive guide directs professionals and enthusiasts through every step: from safe mounting and loading techniques to executing seamless batch scanning and proper maintenance procedures, ensuring optimal scanner performance for archival quality results.
Page 1 Text Content

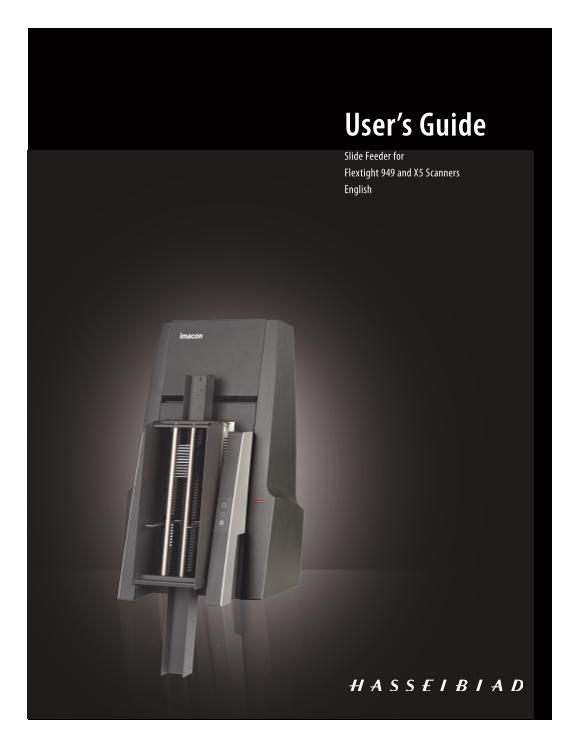

User’s Guide Slide Feeder for Flextight 949 and X5 Scanners English
Page Summary Contents For Hasselblad Flextight Slidefeeder User Manual
Page 1
User’s Guide Slide Feeder for Flextight 949 and X5 Scanners English
Page 2
Table of contents Introduction Wa s a d R s 3 Sy m R s 3 MountingandUnmountingtheSlideFeeder LoadingSlides ScanningwiththeSlideFeeder Troubleshooting AligningtheFeeder PreparingtheFeeder...
Page 3
Introduction The Slide Feeder is an optional accessory for Flextight 949 and X5 Scanners. It enables you to use your scanner to load individual slides and to batch scan up to 50 slides at a time. It f...
Page 4
Feeder Diagram Slide Original Holder Diagram Figure 2: Slide original holder features Figure 1: Features of the Slide Feeder A Magazine drawer clasp A Loading tab holds the drawer closed; to open the ...
Page 5
Mounting and Unmounting the Slide Feeder The procedures for both mounting and unmounting the Feeder to/from your scanner require that you use the software-guided procedure described below, which ensur...
Page 6
7. The scanner then positions itself to accept the Feeder and shuts itself down. The Mount feeder window updates with new instructions. 8. Get the Slide Feeder and study its back panel. Locate the con...
Page 7
12. Flex Color detects that the scanner has been turned back on. The Mount feeder window updates with new instructions. Click on Continue in the Mount feeder window. 13. The scanner repositions its dr...
Page 8
Figure 6: Inserting the Slide original holder. 16. Position the Slide holder on the two supports extending from the front of the Slide Feeder and slide the holder into the scanner. A magnet inside the...
Page 9
Unmounting the Slide Feeder To unmount the feeder, you must always use the software-guided procedure below to ensure that the scanner drum and the magazine drawer are positioned correctly before detac...
Page 10
6. When you have removed the holder, click Continue in the Mount feeder window. The scanner then shuts down. 7. The Mount feeder window updates with new instructions. Close the magazine drawer by rota...
Page 11
Using a Second Magazine 1. Load your extra magazine with slides. Start at the front of the magazine (the side the slots lean towards) and load new slides in the order in which you would like to scan t...
Page 12
7. Take the drawer back to the scanner. As when you removed the drawer, hold the drawer with one hand and stabilize the Feeder with the other. Insert the two pins at the bot- tom of the drawer into th...
Page 13
4. Make the various 3f settings as described in the Flex Color User’s Guide. Note the fol- lowing: • Use the Destination setting to select a parent folder in which to save your 3f files. If you would ...
Page 14
Scanning Individual Slides As mentioned above, we usually recommend that you use the 3f workflow when working with the Slide Feeder to scan large numbers of slides for general use. However, when you j...
Page 15
Troubleshooting Below are a few common problems and how to solve them. Problem: I am not able to mount the Feeder to my scanner. Solution: First, make sure you are using the latest version of Flex Col...
Page 16
holder as described in “Mounting the Feeder” on page 5. Then inspect the slide original holder to see if it sits perfectly centered within the Feeder. If it is too far to the left or right, then the F...
Page 17
2. Retrieve the box in which your Feeder was originally delivered. This box is made of sturdy cardboard and includes a foam lining custom cut to hold the Feeder safely and securely. 3. Lay the box dow...
Page 18
Technical Information Specifications Scanner supported Flextight 949 and X5 Scanner footprint with feeder 36 x 42 cm Weight 3.1 kg Maximum batch 50 slides Original types 35 mm slides Scan software Fle...
Page 19
CE Declaration © 2007 Hasselblad A/S. All rights reserved. Slide Feeder for Flextight 949 and X5 Scanners, Part No 75020088, revision C. The information in this manual is furnished for informational u...
Manual Details
| Brand | Hasselblad |
|---|---|
| Pages | 19 |
| File Size | 1.74 MB |
| Published | May 21, 2026 |
63 views
Enter the captcha to get the download link:
Frequently Asked Questions
Which scanners is this Slide Feeder accessory designed for?
It is compatible with Flextight 949 and X5 Scanners.
How can I efficiently scan a large number of slides without interruptions?
The removable magazine allows operations to load one second magazine while scanning from the first.
What are the required software specifications for operation?
FlexColor 4.0.2 or later is required, along with Mac OS X 10.2.1 (or later) or Windows 2000 (or later).
When storing or shipping the Slide Feeder unit, what precautions must be taken?
You must always store it in its original box because it includes a custom foam lining for safe transport.
