Gigabyte Motherboard GA-B85N Phoenix-WIFI (rev.1.1) User Manual in English (Version 2001)
Summary
This comprehensive user manual provides everything needed to set up and optimize your GA-B85N Phoenix-WIFI motherboard. It is designed for PC builders and advanced users, guiding you through detailed hardware installation (CPU, memory, expansion cards), initial BIOS configuration, power management settings, and driver setup. Use this guide to ensure proper function and performance of your system's wireless and core components.
Page 1 Text Content
GA-B85N Phoenix-WIFI
User's Manual Rev. 2002 12ME-B85NPHW-2002R
Page Summary Contents For Gigabyte Motherboard GA-B85N Phoenix-WIFI (rev.1.1) User Manual in English (Version 2001)

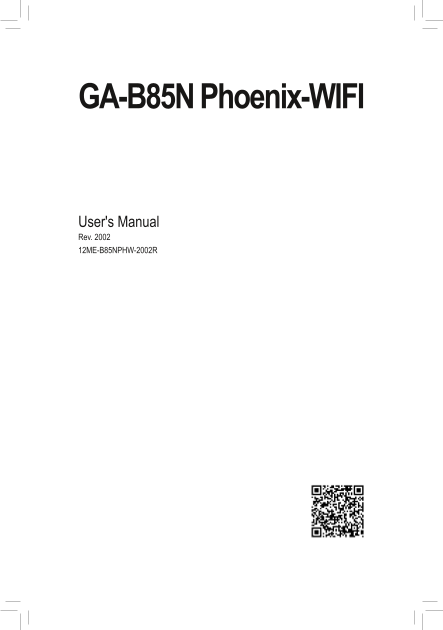

Page 1
GA-B85N Phoenix-WIFI User's Manual Rev. 2002 12ME-B85NPHW-2002R
Page 2
Motherboard GA-B85N Phoenix-WIFI Motherboard GA-B85N Phoenix-WIFI Jan. 3, 2014 Jun. 12, 2014 Copyright © 2016 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manua...
Page 3
Wireless Module Country Approvals: See the latest safety and regulatory documents at GIGABYTE's website.
Page 4
Table of Contents GA-B85N Phoenix-WIFI Motherboard Layout .................................................................5 GA-B85N Phoenix-WIFI Motherboard Block Diagram ...............................
Page 5
GA-B85N Phoenix-WIFI Motherboard Layout F_PANELCOM KB_MS_USB CPU_FANSYS_FAN CLR_CMOS ATX_12V MS AT IF I M od ule LGA1150 DVI ANTENNA_ BRACKET USB_HDMI USB30_LAN Intel® Gb E LAN SA TA USB_DAC GA -B Ph ...
Page 6
GA-B85N Phoenix-WIFI Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1150 DVI-I CPU DDR3 1600/1333 MHz Dual Channel Memory PCIe CLK Ce nte r/S ub wo ofe (100 MHz) Sp ea ke r O ut R...
Page 7
Chapter 1 Hardware Installation 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 8
1-2 Product Specifications CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 packa...
Page 9
Internal 1 x m SATA 6Gb/s connector Connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1...
Page 10
Bundled Norton® Internet Security (OEM version) Software Intel® Rapid Start Technology Intel® Smart Connect Technology Intel® Small Business Advantage c Fos Speed * To use c Fos Speed in Windows 8.1, ...
Page 11
1-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 12
DVI-I Port The DVI-I port conforms to the DVI-I specification and supports a maximum resolution of 1920x1200 (the actual resolutions supported depend on the monitor being used). Connect a monitor that...
Page 13
1-7 Internal Connectors 1) ATX_12V 9) F_AUDIO 2) ATX 10) SPDIF_O 3) CPU_FAN 11) F_USB30 4) SYS_FAN 12) F_USB 5) BAT 13) COM 6) SATA3 0/1/2 14) CLR_CMOS 7) SATA2 15) CI 8) F_PANEL Read the following gu...
Page 14
DEBUG PORT DEBUG DEBUG PORT PORT 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all th...
Page 15
5) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the batte...
Page 16
8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative...
Page 17
10) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certai...
Page 18
14) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch...
Page 19
2-1 Startup Screen The following startup Logo screen will appear when the computer boots. (Sample BIOS Version: F1a) Function Keys On the main menu of the BIOS Setup program, press arrow keys to move ...
Page 20
M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. Advanced Frequency Settings Processor Graphics Clock Allows you to set the onboard graphics clock. The adju...
Page 21
Hyper-Threading Technology (Note 1) Allows you to determine whether to enable multi-threading technology when using an Intel® CPU that supports this function. This feature only works for operating sys...
Page 22
Memory Boot Mode Provides memory detection and training methods. Auto Lets the BIOS automatically configure this setting. (Default) Enable Fast Boot Skip memory detection and training in some specific...
Page 23
CPU Vcore/CPU VRIN/Dram Voltage/+3.3V/+5V/+12V/CPU VAXG Displays the current system voltages. CPU/System Temperature Displays current CPU/system temperature. CPU/System Fan Speed Displays current CPU/...
Page 24
2-3 System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. System ...
Page 25
2-4 BIOS Features Boot Option Priorities Specifies the overall boot order from the available devices. For example, you can set hard drive as the first priority (Boot Option #1) and DVD ROM drive as th...
Page 26
Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed. (Default: Disabled) VGA Support Allows you to select which type of operating syste...
Page 27
CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. Always Enables UEFI CSM. (Default) Never Disables UEFI CSM and supports UEFI BIOS boot proc...
Page 28
2-5 Peripherals Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGFX Sets the onboard graphics as the...
Page 29
Audio Controller Enables or disables the onboard audio function. (Default: Auto) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. USB...
Page 30
External SATA Enables or disables support for external SATA devices. (Default: Disabled) Super IO Configuration This section provides information on the super I/O chip and allows you to configure the ...
Page 31
Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Instant-Off Press the power button and then the system will be turned off instantly. (Default) D...
Page 32
2-7 Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return...
Page 33
Chapter 3 Appendix Drivers Installation Before installing the drivers, first install the operating system. (The following instructions use Windows 8.1 as the example operating system.) After installin...
Page 34
Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthoriz...
Page 35
FCC Notice (U.S.A. Only) This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to ra...
Page 36
European Community Directive R&TTE Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Directive 1999/5/EC of the European Parliament...
Page 40
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Market...
Manual Details
| Brand | GIGABYTE |
|---|---|
| Pages | 40 |
| File Size | 13.72 MB |
| Published | May 30, 2026 |
98 views
Enter the captcha to get the download link:
Frequently Asked Questions
Before updating the BIOS or drivers, what should I check?
Always check your motherboard revision number using the 'REV: X.X.' format.
Where can I find product-related information and support?
Visit GIGABYTE's official website at http://www.gigabyte.com.
What must I do if my WIFI signal is causing interference to licensed communications?
If interference is observed, you must immediately power down the device and only resume use when the disturbance has been eliminated.
What are the components included in the box for this motherboard?
The box generally includes the GA-B85N Phoenix-WIFI motherboard, wireless module driver disk, two SATA cables, a motherboard driver disk, an I/O Shield, and one antenna.
