GIGABYTE 8S661FXMP-ROZ User's Manual
Summary
Essential technical guide for assembling and configuring the Pentium 4 motherboard system. This manual provides comprehensive instructions for computer enthusiasts, system builders, and technicians. It covers critical setup procedures, including static electricity precautions, hardware installation steps (CPU, memory modules, expansion cards), and detailed guidance through BIOS configuration and advanced power management settings, ensuring safe integration and optimal performance of your PC build.
Page 1 Text Content
8S661FXMP-RZ Intel® Pentium® 4 Processor Motherboard
User's Manual Rev. 1002 12ME-661FXMPRZ-1002

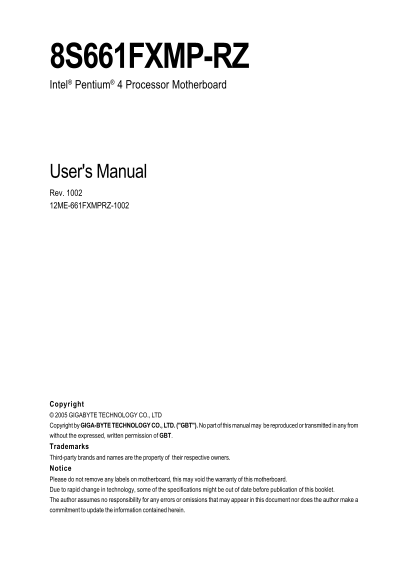

Copyright © 2005 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from without the expressed, written permission of GBT. Trademarks Third-party brands and names are the property of their respective owners. Notice Please do not remove any labels on motherboard, this may void the warranty of this motherboard. Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
Page Summary Contents For GIGABYTE 8S661FXMP-ROZ User's Manual
Page 1
8S661FXMP-RZ Intel® Pentium® 4 Processor Motherboard User's Manual Rev. 1002 12ME-661FXMPRZ-1002 Copyright © 2005 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT&qu...
Page 2
other Board 8S661FXM P-RZ otherboard 8S661FX P-R ct. 22 ,2004 Oct. 22, 2004
Page 3
Preparing Your Computer Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some pr...
Page 4
En gl is Table of Content Chapter 1 Introduction Features Summary 8S661FXMP-RZ Motherboard Layout Block Diagram Hardware Installation Process Step 1: Install the Central Processing Unit (CPU) Step 1-1...
Page 5
English Chapter 1 Introduction Features Summary CPU Socket 478 for Intel® Pentium® 4 (Northwood, Prescott) processor with HT Technology Supports 800/533/400MHz FSB L2 cache varies with processors Chip...
Page 6
En gl is I/O Control IT8705AF Onboard SATA RAID Onboard Si S964 chipset supports data striping (RAID 0) or mirroring (RAID 1) function supports JBOD function supports data transfer rate of up to 150 M...
Page 7
English 8S661FXMP-RZ Motherboard Layout US VG CO MA LA LP KB_MS CPU_FAN CO MB ATX FDD Socket 478 ATX_12V Si S 661FX 8S 1F XM P- RZ F_AUDIO AUDIO DD R1 AGP DD R2 IDE2 IDE1 ICS1883 IT8705AF PCI1 SYS _FA...
Page 8
En gl is Block Diagram Socket 478 CPUCLK+/- (100/133/200MHz) Processor AGP 4X/8X LI NE -IN AC in AGPCLK Host VGA Port LI NE -O UT 266/333/400MHz (66MHz) Interface DDR RAM Si S 661FX HCLK+/- (100/133/2...
Page 9
English Hardware Installation Process To set up your computer, you must complete the following steps: Step 1- Install the Central Processing Unit (CPU) Step 2- Install memory modules Step 3- Install e...
Page 10
En gl is Step 1-1: CPU Installation Figure 1. Socket Pull the rod to the 90-degree directly. Actuation Lever Figure 2. Locate Pin 1 in the socket and look for a (golden) cut edge on the CPU upper corn...
Page 11
English Step 2: Install memory modules Before installing the memory modules, please comply with the following conditions: 1. Please make sure that the memory used is supported by the motherboard. It i...
Page 12
En gl is Step 3: Install expansion cards 1. Read the related expansion card's instruction document before installing the expansion card into the computer. 2. Please make sure your AGP card is AGP 4X/8...
Page 13
English LAN Port The LAN port provides Internet connection. Line In Devices like CD-ROM, walkman etc. can be connected to Line In jack. Line Out (Front Speaker Out) Connect the stereo speakers, earpho...
Page 14
En gl is 1/2) ATX_12V/ATX (Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power c...
Page 15
English 4) SYS_FAN (System FAN Connector) This connector allows you to link with the cooling fan on the system case to lower the system temperature. Pin No. Definition GND +12V Sense 5) FDD (Floppy Co...
Page 16
En gl is 7) SATA0/SATA1 (Serial ATA Connector, Controlled by Si S964) Serial ATA can provide 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA and install the proper driver in...
Page 17
English 9) BAT (Battery) CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries accord...
Page 18
En gl is 11) CD_IN (CD In Connector) Connect CD-ROM or DVD-ROM audio out to the connector. Pin No. Definition CD-L GND GND CD-R 12) SPDIF_IO (SPDIF In/Out) The SPDIF output is capable of providing dig...
Page 19
English 14) F_ USB1 / F_USB2 (Front USB Connectors) Be careful with the polarity of the F_USB connector. Check the pin assignment carefully while you connect the F_USB cable, incorrect connection betw...
Page 20
En gl is 17) CLR_CMOS (Clear CMOS) You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily short pins 1-2. Default doesn't include a jumper on pins 1-2 to prevent ...
Page 21
English Chapter 2 BIOS Setup Chapter 2 provides an overview of the BIOS Setup Program, which allows users to modify the basic system configurations. This type of information is stored in battery-backe...
Page 22
En gl is If you can't find the settings you want, press Ctrl and F1 in BIOS main menu to access the hidden advanced options. Standard CMOS Features This setup page includes all the items in standard c...
Page 23
English Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Date (mm:dd:yy) Fri, Jan 9 2004 Item Help Time (hh:mm:ss) 22:31:24 Menu Level Change the...
Page 24
En gl is Drive A / Drive B The category identifies the types of floppy disk (drive A and drive B) installed in the computer. None No floppy disk is installed 360K, 5.25" 5.25 inch PC-type standar...
Page 25
English Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Advanced BIOS Features Hard Disk Boot Priority [Press Enter] ardk sik Item Help Menu Level First Boot Device [F...
Page 26
En gl is Password Check Setup The system will boot but will not access to Setup page if the correct password is not entered at the prompt. (Default value) System The system will not boot and will not ...
Page 27
English Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Integrated Peripherals IDE1 Conductor Cable [Auto] Item Help IDE2 Conductor Cable [Auto] Menu Level On-Chip Pri...
Page 28
En gl is Onboard LAN device Enabled Enable Onboard LAN function. (Default value) Disabled Disable this function. USB Controller Enabled Enable USB Controller. (Default value) Disabled Disable USB Cont...
Page 29
English Parallel Port Mode This option is available when Onboard Parallel port is not set to Disabled. SPP Use Parallel port as Standard Parallel Port. EPP Use Parallel port as Enhanced Parallel Port....
Page 30
En gl is System After AC Back Off When AC-power back to the system, the system will be in "Off" state. (Default Value) On When AC-power back to the system, the system will be in "On&quo...
Page 31
English Pn P/PCI Configurations CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Pn P/PCI Configurations PCI 1 IRQ Assignment [Auto] Item Help PCI 2 IRQ Assignment [Auto] Menu Level PCI 3 IRQ...
Page 32
En gl is PC Health Status CMOS Setup Utility-Copyright (C) 1984-2004 Award Software PC Health Status Reset Case Open Status [Disabled] Item Help Case Opened No Menu Level Vcore OK [Disabled] DDR 2.5V ...
Page 33
English MB Intelligent Tweaker (M.I.T.) CMOS Setup Utility-Copyright (C) 1984-2004 Award Software MB Intelligent Tweaker (M.I.T.) Configure DRAM Timing [Auto] Item Help x Cas Latency Setting 3T x DRAM...
Page 34
En gl is CPU Clock (MHz) This option is available only when Linear Frequency Control is enabled. 100~355 Select CPU Clock to 100MHz~355MHz. If you use a FSB400 Pentium 4 processor, please set "CP...
Page 35
English Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated Perip...
Page 36
En gl is Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> ...
Page 37
English Revision History Chapter 3 Install Drivers Install Drivers Pictures below are shown in Windows XP Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver ...
Page 38
En gl is You have completed drivers installation. Item Description SIS AGP Driver AGP interface driver for Si S series chipset. Si S VGA Driver VGA driver for VGA integrated Si S 661FX chipset. USB Pa...
Page 39
English Taiwan (Headquarters) Contact Us Japan GIGA-BYTE TECHNOLOGY CO., LTD. NIPPON GIGA-BYTE CORPORATION Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, WEB address : http://www.gigabyte.co...
Page 40
En gl is China Australia NINGBO G.B.T. TECH. TRADING CO., LTD. GIGABYTE TECHNOLOGY PTY. LTD. Tech. Support : Tech. Support : http://cn.giga-byte.com/Tech Support/Service Center.htm http://www.giga-byt...
