Fujitsu fi-434PR Imprinter User's Guide
Summary
This comprehensive user guide details the operation of the fi-434PR imprinter unit, a reliable data marking tool utilizing thermal inkjet technology. It is designed for office settings that require accurate document printing of alphanumeric characters and symbols. The manual provides full specifications, best practices for clear print results, and detailed troubleshooting procedures to help users resolve common errors such as printer alarms or cartridge issues quickly and efficiently.
Page 1 Text Content
P3PC-E862-02XA
fi-434PR Imprinter User's Guide: Option
English User's Guide
Japanese
Page Summary Contents For Fujitsu fi-434PR Imprinter User's Guide

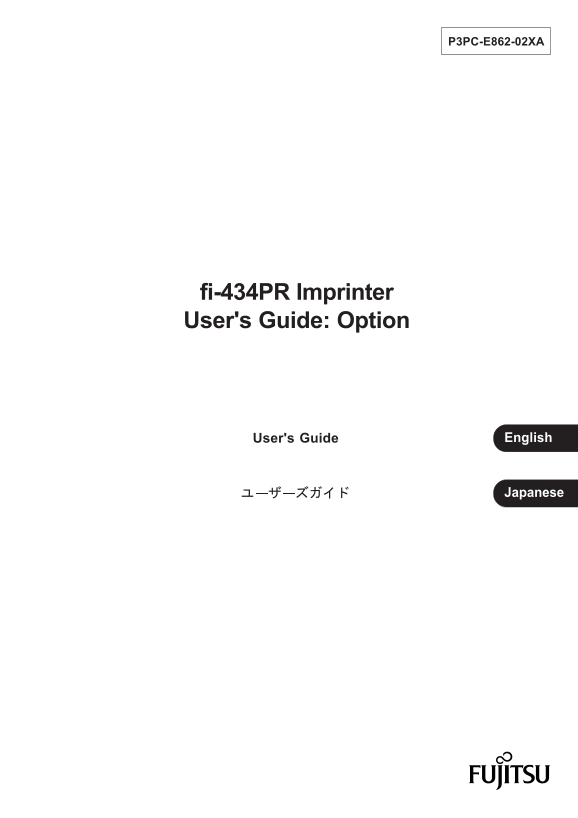

Page 1
P3PC-E862-02XA fi-434PR Imprinter User's Guide: Option English User's Guide Japanese
Page 2
Revision Record Date published Edition Revised contents December 2001 First edition Manual code: P3PC-E862-01XA
Page 3
fi-434PR Imprinter User's Guide: Option English
Page 4
FCC Declaration: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable ...
Page 5
FUJITSU Group Offices Please send your comments on this manual or on PFU products to the following addresses: PFU LIMITED FUJITSU ICL ESPAÑA, S.A. Computer Products Business Group Camino Cerro de los ...
Page 6
Table of Contents Introduction Conventions 1. Components of the Imprinter 2. Installation..................................................................................................................
Page 7
Introduction Thank you very much for purchasing the fi-434PR Imprinter Option. This guide explains how to install and use the imprinter. This guide also contains important information such as procedur...
Page 8
1. Components of the Imprinter Table 1.1 shows the imprinter components. Table 1.1 Imprinter Components Component External View Quantity Imprinter Unit Print Cartridge Operator's Guide Imprinter Cable...
Page 9
2. Installation (1) Installing the Imprinter Install the imprinter as follows: Prepare a Phillips screw driver. Turn off the scanner and disconnect the power cable. (1) While pushing the lower part of...
Page 10
(2) Mounting the Clamps and Connecting the Imprinter cable Two types of clamps are used for securing the imprinter cable. Mount the clamps as follows: Note: The imprinter cable should be connected aft...
Page 11
(3) Mounting the Print Cartridge Mount the print cartridge as follows: Turn off the scanner and disconnect the power cable. Hold and raise the knob of the imprinter cover in the direction of the arrow...
Page 12
(4) Operation Test After installing the imprinter, check if the printing operation can be done by using the Offline Print Test mode of the scanner. ■ Print test mode This mode tests the printing perfo...
Page 13
3. Operation (1) Replacing the Print Cartridge Replace the print cartridge as follows: Turn off the scanner and disconnect the power cable. Hold and raise the knob of the imprinter cover in the direct...
Page 14
(2) Reset of the Ink Remain Counter You must reset the ink remain counter whenever you replace the print cartridge. When you install the print cartridge, the ink remain counter will automatically coun...
Page 15
(3) Clearing Paper Jam If paper jams, clear the jammed paper as follows: Remove all the documents on the stacker except the jamed paper. Open the ADF cover. The imprinter automatically moves as shown ...
Page 16
(4) Cleaning the Nozzle Surface of the Print Cartridge Ink or stains stuck to the nozzle surface of the print cartridge or leaving the imprinter unused for a while cause poor printing of characters be...
Page 17
(5) Cleaning the Imprinter Base With increased use of the imprinter, dirt such as ink sticks to the imprinter base, causing dirt on the paper. As part of daily maintenance, clean the imprinter base by...
Page 18
Shutter part As shown in the above figures, press a cloth against the edge and base of the shutter part and wipe out dirt. Check that the dirt is wiped out and gently return the imprinter to its origi...
Page 19
4. Precautions 1. When installing or replacing the print cartridge, be careful not to insert out of position. 2. When printing near the edge of paper, note that printing may go across the edge dependi...
Page 20
5. Error Messages When the following error messages are displayed on the operator panel, the imprinter is malfunctioning. Recover the imprinter according to the means following the cause. Possible cau...
Page 21
6. Specifications Table 1.1 presents the imprinter specifications. . . . . . . . . . . . . . . . . . Table 1.1 Imprinter Specifications enter of D ocum ent Item Specification Printing Method Thermal i...
Page 22
