Fisher & Paykel oven, 60cm, 9 functions, High Temperature Self-Cleaning (Model OB60SD9PX1) Data Sheet
Summary
Comprehensive technical dimensions and installation planning guide for the OB60SD series ovens. This data sheet provides detailed measurements—including heights, widths, and depths across front, plan, and profile views—for all components such as the chassis, door, and control panel. It is essential documentation for professional designers, architects, and installers who require precise specifications to ensure proper cabinet integration and clearance fitting.
Page 1 Text Content

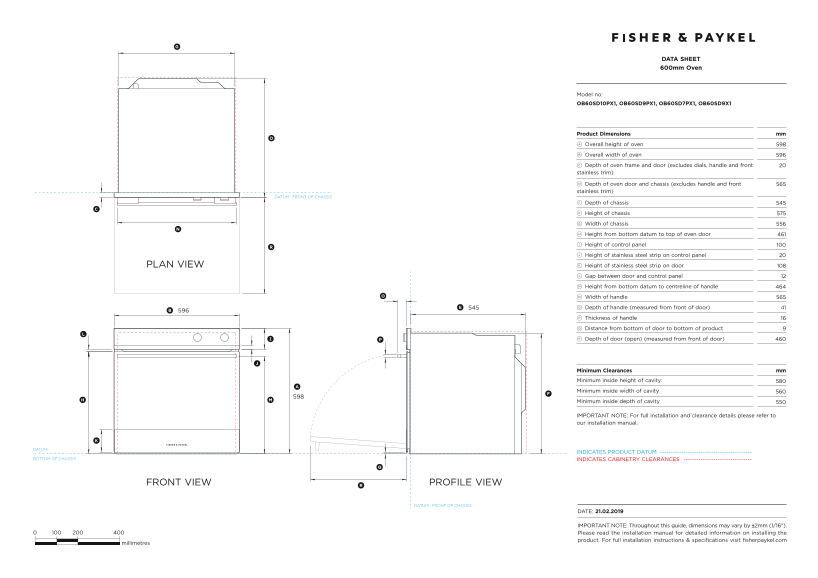

DATA SHEET 600mm Oven
Model no: OB60SD10PX1, OB60SD9PX1, OB60SD7PX1, OB60SD9X1
Product Dimensions mm
a Overall height of oven
B Overall width of oven
c Depth of oven frame and door (excludes dials, handle and front stainless trim)
d Depth of oven door and chassis (excludes handle and front stainless trim)
DATUM : FRONT OF CHASSIS
E Depth of chassis
F Height of chassis
G Width of chassis
H Height from bottom datum to top of oven door
I Height of control panel
J Height of stainless steel strip on control panel 20
PLAN VIEW K Height of stainless steel strip on door L Gap between door and control panel M Height from bottom datum to centreline of handle N Width of handle o Depth of handle (measured from front of door)
p Thickness of handle
Q Distance from bottom of door to bottom of product
R Depth of door (open) (measured from front of door)
Minimum Clearances mm
Minimum inside height of cavity:
Minimum inside width of cavity
Minimum inside depth of cavity
IMPORTANT NOTE: For full installation and clearance details please refer to our installation manual.
DATUM :
INDICATES PRODUCT DATUM -------------------------------------------
BOTTOM OF CHASSIS INDICATES CABINETRY CLEARANCES --------------------------------
FRONT VIEW PROFILE VIEW
DATUM : FRONT OF CHASSIS
DATE: 21.02.2019
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
0 100 200 400 Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
millimetres
Page Summary Contents For Fisher & Paykel oven, 60cm, 9 functions, High Temperature Self-Cleaning (Model OB60SD9PX1) Data Sheet
Manual Details
| Brand | Fisher & Paykel |
|---|---|
| Pages | 1 |
| File Size | 71.47 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the minimum required dimensions for the oven cavity?
The minimum inside height is 580 mm, width is 560 mm, and depth is 550 mm.
What are the overall external dimensions of the unit?
The product has an overall height of 598 mm and a total width of 596 mm.
Where can I get full installation details and specifications?
Users must consult the dedicated installation manual or visit fisherpaykel.com for detailed instructions.
