Fisher & Paykel Oven, 60cm, 11 Functions, Auto Clean (Model OB60SD11PB1) Data Sheet
Summary
This comprehensive technical data sheet provides exact dimensions and detailed measurements for the built-in oven model, ensuring precise planning and seamless integration into your kitchen design. The manual covers crucial physical specifications, including overall height, width, depth, handle placement, and minimum cavity clearances. Ideal for professional installers, cabinetmakers, and designers who require accurate installation parameters for custom cabinetry, guaranteeing proper fitment and adherence to required safety standards.
Page 1 Text Content

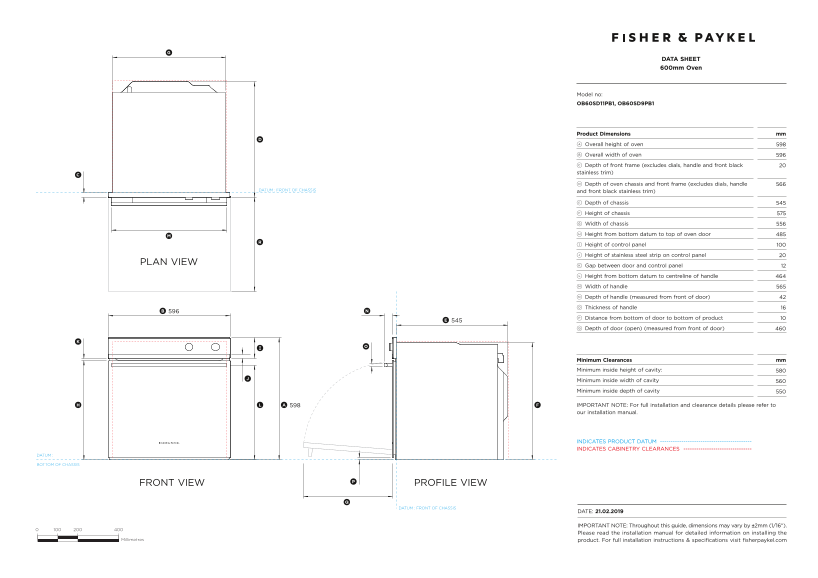

DATA SHEET 600mm Oven
Model no: OB60SD11PB1, OB60SD9PB1
Product Dimensions mm
a Overall height of oven
B Overall width of oven
c Depth of front frame (excludes dials, handle and front black stainless trim)
d Depth of oven chassis and front frame (excludes dials, handle
DATUM : FRONT OF CHASSIS and front black stainless trim)
E Depth of chassis
F Height of chassis
G Width of chassis
H Height from bottom datum to top of oven door
I Height of control panel
J Height of stainless steel strip on control panel 20
PLAN VIEW
k Gap between door and control panel
l Height from bottom datum to centreline of handle
m Width of handle
n Depth of handle (measured from front of door)
o Thickness of handle
p Distance from bottom of door to bottom of product
q Depth of door (open) (measured from front of door)
Minimum Clearances mm
Minimum inside height of cavity:
Minimum inside width of cavity
Minimum inside depth of cavity
IMPORTANT NOTE: For full installation and clearance details please refer to our installation manual.
INDICATES PRODUCT DATUM ------------------------------------------- INDICATES CABINETRY CLEARANCES --------------------------------
DATUM :
BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM : FRONT OF CHASSIS
DATE: 21.02.2019
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read the installation manual for detailed information on installing the product. For full installation instructions & specifications visit fisherpaykel.com
Page Summary Contents For Fisher & Paykel Oven, 60cm, 11 Functions, Auto Clean (Model OB60SD11PB1) Data Sheet
Manual Details
| Brand | Fisher & Paykel |
|---|---|
| Pages | 1 |
| File Size | 90.98 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the minimum clearance requirements for the oven cavity?
The minimum inside height is 580mm, width is 560mm, and depth is 550mm.
How do I determine key dimensions like chassis depth or control panel height?
Use the provided datum points: FRONT OF CHASSIS for general measurements (A-G) and BOTTOM OF CHASSIS for other references. The overall height of the oven is 598mm.
Are there specific clearances to consider during installation?
Yes, while this guide offers dimensions, you must refer to the dedicated installation manual for precise full clearance details.
What are the approximate dimensions of the door and handle?
The door depth when open (q) is 460mm. The handle width (m) is 565mm and its height from bottom datum (l) is 464mm.
