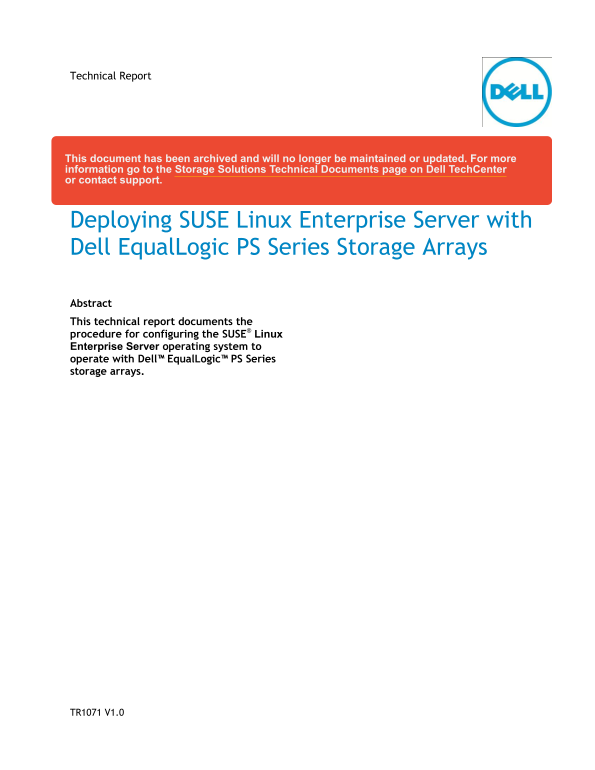

Technical Report
Deploying SUSE Linux Enterprise Server with Dell Equal Logic PS Series Storage Arrays
Abstract This technical report documents the procedure for configuring the SUSE® Linux Enterprise Server operating system to operate with Dell™ Equal Logic™ PS Series storage arrays.
TR1071 V1.0
Page Summary Contents For Deploying SUSE Linux Enterprise Server with Dell EqualLogic PS Series Storage Arrays User Guide
Page 1
Technical Report Deploying SUSE Linux Enterprise Server with Dell Equal Logic PS Series Storage Arrays Abstract This technical report documents the procedure for configuring the SUSE® Linux Enterprise...
Page 2
Copyright © 2011 Dell Inc. All Rights Reserved. Dell Equal Logic is a trademark of Dell Inc. All trademarks and registered trademarks mentioned herein are the property of their respective owners. Poss...
Page 3
Current Customers Please Note: You may not be running the latest versions of the tools and software listed below. If you are under valid warranty or support agreements for your PS Series array, you ar...
Page 4
Preface Thank you for your interest in Dell™ Equal Logic™ PS Series storage products. We hope you will find them intuitive and simple to configure and manage. PS Series arrays optimize resources by au...
Page 5
Host Software for VMware – Host Integration Tools for VMware® - Auto-Snapshot Manager/VMware Edition (ASM/VE): Integrates with VMware Virtual Center and PS Series snapshots to allow administrators to ...
Page 7
Table of Contents Revision information ............................................................................................................................ iii Introduction ......................
Page 8
Revision information The following table describes the release history of this Technical Report. Report Date Document Revision 1.0 August 2011 Initial Release The following table shows the software an...
Page 10
Introduction This technical report documents the configuration procedures for a server running SUSE Linux Enterprise Server (SLES 11 SP1) with a Dell™ Equal Logic™ PS Series storage array. The report ...
Page 11
iscsiadm: Open-i SCSI administration utility, included in the SLES software distribution. Command line tool which allows: discovery of i SCSI targets; login/logout of i SCSI targets; and management ...
Page 12
SUSE Linux Enterprise Server 11 SP1, also known as SLES 11 SP1 PS Series firmware version 5.0.2 Deployment scenarios PS Series arrays connect to servers through physical Ethernet connections, eith...
Page 13
high availability and performance load balancing across multiple network ports, allowing the i SCSI Initiator software on the server to utilize multiple network interfaces with a single i SCSI target....
Page 14
Server setup – pre-requisite steps This section of the document discusses the basic server setup requirements and describes how to configure the server to meet them. The areas of consideration are: Et...
Page 15
4) In this test configuration the i SCSI service was already enabled to execute on boot. If the system displays “off” for runlevels 3 and 5 - then use the following command to enable the service for b...
Page 16
http://www.java.com/en/download/manual.jsp In this configuration, the file downloaded was ‘jre-6u20-linux-x64.bin’ 2) Shutdown all instances of the web browser 3) Make the java installer file executab...
Page 17
Task #1 - Add a volume 1) Login to the PS Series storage array using the PS Group Manager GUI and create a new volume: Example settings: Volume name = sles1 Volume size = 40G i SCSI Access = 10....
Page 18
Negotiated i SCSI params: Header Digest: None Data Digest: None Max Recv Data Segment Length: 262144 Max Xmit Data Segment Length: 65536 First Burst Length: 65536 Max Burst Length: 262144 Immediate Da...
Page 19
This filesystem will be automatically checked every 28 mounts or 180 days, whichever comes first. Use tune2fs -c or -i to override. 6) Create the mount point and mount the filesystem: # mkdir /mnt/sle...
Page 20
Rescanning session [sid: 1, target: iqn.2001-05.com.equallogic: 0-8a0906-beee66602-27e79218c634bfec-sles1, portal: 10.10.5.7,3260] 4) Confirm the modified volume size was recognized: # dmesg | tail sd...
Page 21
Logging in to [iface: default, target: iqn.2001- 05.com.equallogic:0-8a0906-ae2e66602-b156e11d6b04c0e7-sles1- 2010-06-08-13:16:18.6512, portal: 10.10.5.7,3260] Login to [iface: default, target: iqn.20...
Page 22
/dev/sda1 101086 12538 83329 14% /boot tmpfs 8216020 0 8216020 0% /dev/shm /dev/sdb 51615928 184268 478816132 1% /mnt/sles1 /dev/sdc 51615928 184268 478816132 1% /mnt/slessnap Task #4 - Delete the vol...
Page 23
Enabling Multipath I/O functionality on SLES 11 involves the i SCSI initiator, the multipath subsystem and device mapper. This configuration procedure details the steps required to utilize multiple Et...
Page 24
iface.ipaddress = <empty> iface.hwaddress = <empty> iface.transport_name = tcp iface.initiatorname = <empty> # END RECORD 4) Acquire the i SCSI initiator name for your SLES server: #...
Page 25
8) In order to allow multipath I/O access from the SLES server, the multipath software on the server needs to be configured. Check the installation status of the multipath package and install (if need...
Page 26
Note: Edit the blacklist section for your server, using either a regular expression or WWID to exclude the appropriate devices. Refer to the “SUSE Linux Enterprise Server 11 SP1 Storage Administration...
Page 27
Note: the string highlighted in RED text is the WWID, a unique identifier and persistent name for this volume, 14) Edit the ‘multipaths’ section of the /etc/multipath.conf file to associate this WWID ...
Page 28
crw------- 1 root root 10, 63 Jun 4 14:21 controlif brw-rw---- 1 root disk 253, 3 Jun 10 15:31 mpio brw------- 1 root root 253, 0 Jun 4 14:22 Vol Group00-Log Vol00 brw------- 1 root root 253, 1 Jun 4 ...
Page 29
# mke2fs –j –L mpio –v /dev/mapper/mpio mke2fs 1.39 (29-May-2006) Filesystem label=mpio OS type: Linux Block size=4096 (log=2) Fragment size=4096 (log=2) 6557152 inodes, 13109760 blocks 655488 blocks ...
Page 30
Technical Support and Customer Service Dell's support service is available to answer your questions about PS Series SAN arrays. If you have an Express Service Code, have it ready when you call. The co...
