Dell Equal Logic Best Practices Series
Enhancing SQL Server Protection using Dell Equal Logic Smart Copy Snapshots A Dell Technical Whitepaper
Storage Infrastructure and Solutions Engineering Dell Product Group July 2011
Page Summary Contents For Enhancing SQL Server Protection with Dell EqualLogic Smart Copy Snapshots User Guide
Page 1

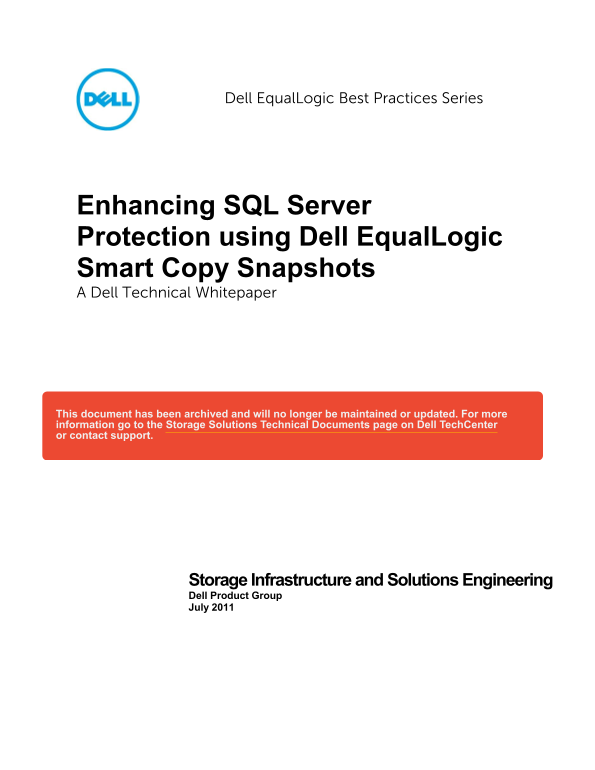

Dell Equal Logic Best Practices Series Enhancing SQL Server Protection using Dell Equal Logic Smart Copy Snapshots A Dell Technical Whitepaper Storage Infrastructure and Solutions Engineering Dell Pro...
Page 2
THIS WHITE PAPER IS FOR INFORMATIONAL PURPOSES ONLY, AND MAY CONTAIN TYPOGRAPHICAL ERRORS AND TECHNICAL INACCURACIES. THE CONTENT IS PROVIDED AS IS, WITHOUT EXPRESS OR IMPLIED WARRANTIES OF ANY KIND. ...
Page 3
Table of Contents 1 Introduction ....................................................................................................................................................... 4 1.1 Audience ...
Page 4
Acknowledgements This whitepaper was produced by the PG Storage Infrastructure and Solutions team between January 2011 and April 2011 at the Dell Labs facility in Round Rock, Texas. The team that crea...
Page 5
1 Introduction Backup and recovery operations are the focus of business continuity and data protection plans and often the main source of anxiety for IT departments. Few businesses are fully satisfied...
Page 6
2 SQL Server backup considerations A copy of data that can be used to restore and recover the data is called a backup. Backups let you restore data after a failure. Microsoft® SQL Server® enables you ...
Page 7
Restoration Tools and Processes The tools and processes your enterprise has in place to restore data ultimately determine what kind RTOs you are able to support. Some tools may require multiple manual...
Page 8
Eliminate Backup Window using off-host backups A good snapshot implementation should provide near instantaneous and non-disruptive consistent copy of the database. If the snapshots are transportable o...
Page 9
3 Test system configuration To conduct the system testing detailed in this paper we created the SQL Server® test system as shown in Figure 1. Figure 1 – Test System Configuration Some key design detai...
Page 10
The MGMT server was a Dell Power Edge R710 server running Windows 2008 R2 natively. It was used to host the following management and monitoring tools: Equal Logic SAN Headquarters (SANHQ), VMware v ...
Page 11
3.1 Storage volume layout A single pool was created from each array. Table 1 lists the volumes and Figure 2 shows the volume layout. Table 1 – Storage volumes Volume Size Purpose Data Pool (PS6000XV R...
Page 12
3.2 Testing SQL Server backup processing impact In this test we measured the impact on server and database performance when running the SQL Server® native backup utility to create a full database back...
Page 13
In Figure 4 we show the impact on CPU utilization during the backup process. Figure 4 – CPU utilization impact when creating SQL Server backup using native backup utility 3.2.1 Analysis and conclusion...
Page 14
snapshot is transactionally consistent with the source database at the time the snapshot is created. A snapshot will persist until it is dropped. 3.3.1 Time to create a SQL Server snapshot as a functi...
Page 15
snapshot creation, while retaining multiple snapshots. Differences between this test and the previous one: During creation of all snapshots in the series we ran a constant TPC-C style workload on th...
Page 16
Figure 7 – System and database performance impact when creating SQL Server snapshot In the next section, we now look at how snapshots at Equal Logic SAN layer perform under similar test conditions. 3....
Page 17
3.4.1 Time to create Equal Logic Smart Copy snapshots Test details: As in the previous tests, we used Quest Benchmark Factory to simulate a TPC-C style workload. A constant 4000 user workload was si...
Page 18
3.4.2 Impact on system and database performance while creating Smart Copy snapshots We also measured system and database performance impact while creating a series of Smart Copy snapshots. Figure 9 sh...
Page 19
Figure 10 – Comparing response times during creation of SQL Server snapshots and ASM/ME Smart Copies In section 3.4, we illustrated the non-disruptive nature of Equal Logic Smart Copy Snapshots on SQL...
Page 20
Test 2 o We performed a system recovery to the same point in time as in test #1. o In this test case we restored using the most recent Auto-Snapshot Manager snapshot Smart Copy (using Auto-Snapshot ...
Page 21
Recovery Task Time to complete (seconds) Restore full database (130 GB) to T0 900 Replay of 13 transaction Logs 1560 Recover database 29 Total 2489 (41:29) 3.5.2 Test 2 results: In-place restore from ...
Page 22
Figure 12 – Results of recovery time comparison Conclusions from the results presented in Figure 12: The ASM Smart copy based recovery process was approximately 7.5 times faster than the recovery pr...
Page 23
Figure 13 – Restore and recovery data flow path using native SQL Server backup utility BP1014 Enhancing SQL Server Protection using Dell Equal Logic Snapshot Smart Copies 22
Page 24
Figure 14– Restore and recovery data flow path using Equal Logic Smart Copy in-place restore BP1014 Enhancing SQL Server Protection using Dell Equal Logic Snapshot Smart Copies 23
Page 25
4 Best practice recommendations In the following sections we summarize best practices to follow for using Auto-Snapshot Manager and for SQL backup strategies in general. 4.1 Including Equal Logic Smar...
Page 26
Carefully assess your RPO goals: Depending on your target RPO goals, you should ascertain whether you can fulfill them with just Smart Copies alone or would need a combination of backup sets in conjun...
Page 27
Database Layout As a best practice, make sure that SQL Server® databases and associated transactions logs should each reside in dedicated volumes. This will prevent creation of “torn” Smart Copies d...
Page 28
Careful scheduling is necessary when you have different backup and snapshot schedules running against the same database. It is very important that backup destinations reside on storage devices tha...
Page 29
host i SCSI connection path between the SQL database server and the PS6500E backup pool array. Per Microsoft® SQL Server® storage requirements, SQL Server® guest operating system images must be depl...
Page 30
Appendix A Auto Snapshot Manager / Microsoft Edition This appendix provides a brief introduction to Equal Logic Auto-Snapshot Manager/Microsoft® Edition. For more in depth information, please see the ...
Page 31
Auto-Snapshot Manager manages the interaction with SQL Server® to prepare the database for the Smart Copy operation. When you create an ASM Smart Copy, SQL Server® first places the database in a consi...
Page 32
Appendix B Test system component details This section contains an overview of both the hardware and software configurations used throughout the testing described in this document. Table 4 – Test Confi...
Page 33
Table 5 – Test Configuration Software Components Test Configuration – Software Components Database Server VM Windows Server 2008 R2 Enterprise Edition Equal Logic Host Integration Toolkit (HIT) v3.4...
Page 34
Related publications The following Dell publications are referenced in this document or are recommended sources for additional information. Microsoft SQL Server Database Protection Using Equal Logic...
Page 35
