Delta Industrial Automation Inverter VFD1600CP43A-00, VFD1850CP43B-00, VFD1600CP63A-00, VFD2000CP63A-00F1 Dimension Drawing
Summary
Detailed technical specification resource for Variable Frequency Drive (VFD) hardware, focusing specifically on Frame F1 dimensions. This manual provides essential mechanical schematics, including comprehensive measurements for width, height, depth, and flange mounting points (D1*). It is designed for engineers, system integrators, and industrial professionals who require precise physical data to plan the installation, panel integration, or dimensioning of Delta Electronics VFD units like the 1600CP43A-00 and 1850CP43A-00.
Page 1 Text Content

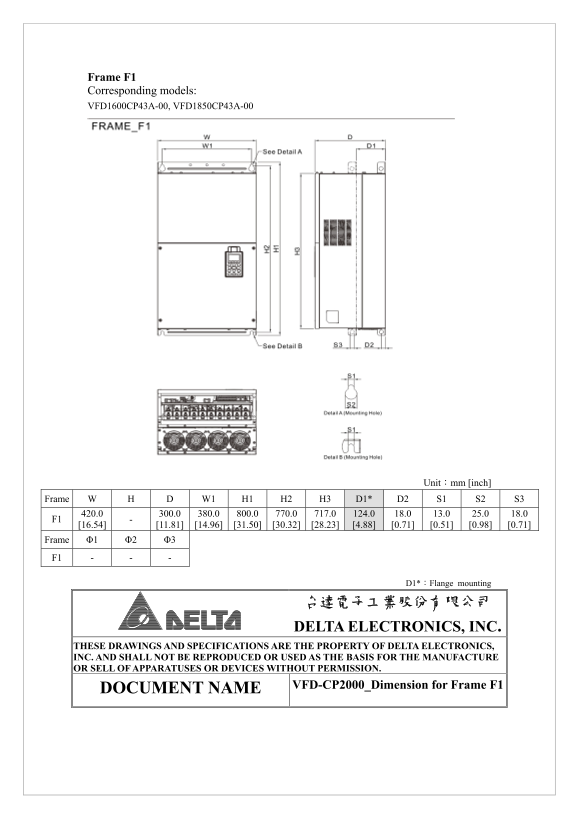

Frame F1 Corresponding models: VFD1600CP43A-00, VFD1850CP43A-00
Unit：mm [inch]
Frame W H D W1 H1 H2 H3 D1* D2 S1 S2 S3 420.0 300.0 380.0 800.0 770.0 717.0 124.0 18.0 13.0 25.0 18.0 F1 [16.54] [11.81] [14.96] [31.50] [30.32] [28.23] [4.88] [0.71] [0.51] [0.98] [0.71] Frame Φ1 Φ2 Φ3 F1 - - -
D1*：Flange mounting
台達電子工業股份有限公司 DELTA ELECTRONICS, INC.
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA ELECTRONICS, INC. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION.
DOCUMENT NAME VFD-CP2000_Dimension for Frame F1
Page Summary Contents For Delta Industrial Automation Inverter VFD1600CP43A-00, VFD1850CP43B-00, VFD1600CP63A-00, VFD2000CP63A-00F1 Dimension Drawing
Manual Details
| Brand | Delta |
|---|---|
| Pages | 1 |
| File Size | 215.06 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the dimensions of the main frame (F1)?
The overall dimensions are 420.0mm wide, 300.0mm high, and 380.0mm deep.
How are mounting flanges measured?
The manual provides specific measurements for flange mounts including the D1* dimension (Flange mounting area).
