Dell UP2516D Statement of Volatility
Summary
Statement of volatility for the Dell UP2516D professional monitor documenting all volatile and non-volatile memory components on the system board. Non-volatile items include Serial Flash ROM U602 (MX25L3233FM21, 32Mbit firmware storage with hardware/software write protection), 2Kbit EEPROM U503/U507 (24C02 for HDMI EDID), 128Kbit EEPROM U1404 (24C128 for ISP function), and 16Kbit EEPROM U601 (24C16 for HDCP and user adjustment data). DDR3 SDRAM U801 (1Gb, NT5CB64M16FP-DH) is volatile and stores
Page 1 Text Content

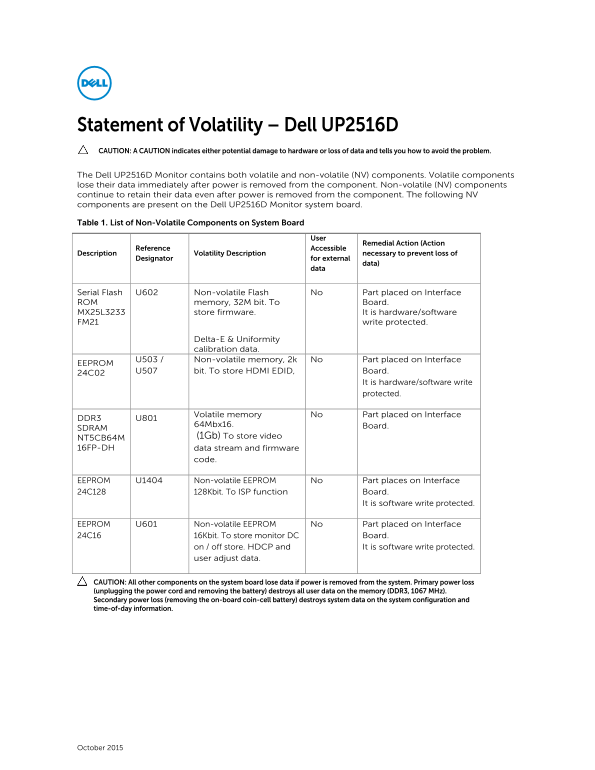

Statement of Volatility – Dell UP2516D CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell UP2516D Monitor contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell UP2516D Monitor system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference Accessible
Description Volatility Description necessary to prevent loss of
Designator for external
data)
Serial Flash U602 Non-volatile Flash No Part placed on Interface
ROM memory, 32M bit. To Board. MX25L3233 store firmware. It is hardware/software FM21 write protected.
Delta-E & Uniformity calibration data.
U503 / Non-volatile memory, 2k No Part placed on Interface
EEPROM
24C02 U507 bit. To store HDMI EDID, Board.
It is hardware/software write protected.
No Part placed on Interface
DDR3 U801 Volatile memory
64Mbx16. Board.
SDRAM
NT5CB64M (1Gb) To store video
16FP-DH data stream and firmware
code.
EEPROM U1404 Non-volatile EEPROM No Part places on Interface
24C128 128Kbit. To ISP function Board. It is software write protected.
EEPROM U601 Non-volatile EEPROM No Part placed on Interface 24C16 16Kbit. To store monitor DC Board.
on / off store. HDCP and It is software write protected. user adjust data.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
