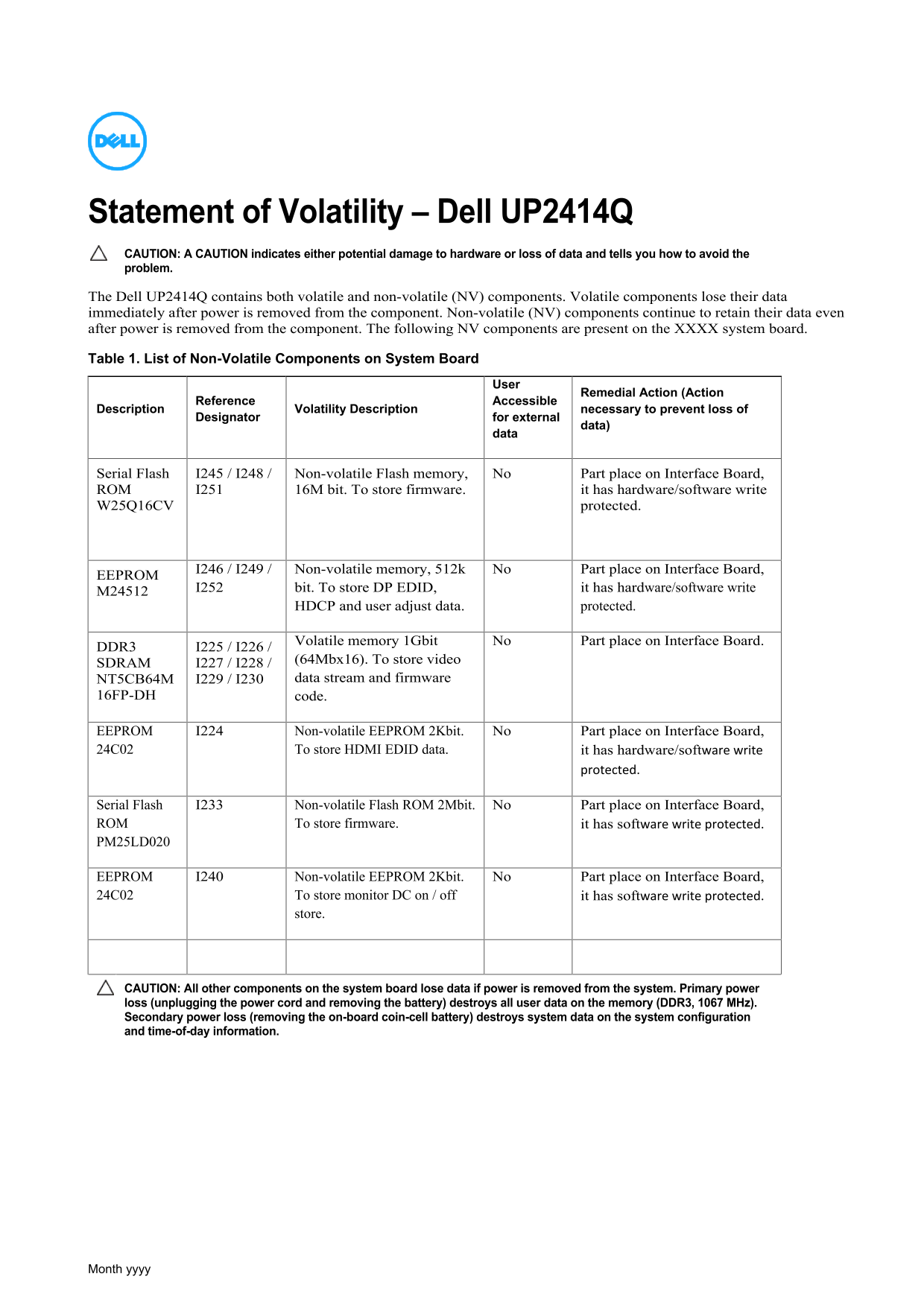

Dell UP2414Q Statement of Volatility
Summary
The Statement of Volatility for Dell UP2414Q monitor details all memory components and their data retention characteristics. The document identifies non-volatile components including Serial Flash ROM for firmware, EEPROM for EDID and HDCP data, and volatile DDR3 SDRAM for video data streaming. It confirms that all user data in volatile memory is destroyed when power is removed, and specifies write protection mechanisms for non-volatile storage. Intended for security professionals, compliance officers, and organizations requiring documentation of monitor data handling for security certification purposes.
Page 1 Text Content
Statement of Volatility – Dell UP2414Q CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell UP2414Q contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the XXXX system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Accessible
Description Reference necessary to prevent loss of
Designator Volatility Description for external
data)
Serial Flash I245 / I248 / Non-volatile Flash memory, No Part place on Interface Board, ROM I251 16M bit. To store firmware. it has hardware/software write W25Q16CV protected.
I246 / I249 / Non-volatile memory, 512k No Part place on Interface Board,
EEPROM
I252 bit. To store DP EDID, it has hardware/software write
HDCP and user adjust data. protected.
Volatile memory 1Gbit No Part place on Interface Board.
DDR3 I225 / I226 /
(64Mbx16). To store video
SDRAM I227 / I228 /
NT5CB64M I229 / I230 data stream and firmware
16FP-DH code.
EEPROM I224 Non-volatile EEPROM 2Kbit. No Part place on Interface Board, 24C02 To store HDMI EDID data. it has hardware/software write
protected.
Serial Flash I233 Non-volatile Flash ROM 2Mbit. No Part place on Interface Board, ROM To store firmware. it has software write protected. PM25LD020
EEPROM I240 Non-volatile EEPROM 2Kbit. No Part place on Interface Board, 24C02 To store monitor DC on / off it has software write protected.
store.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
Month yyyy
