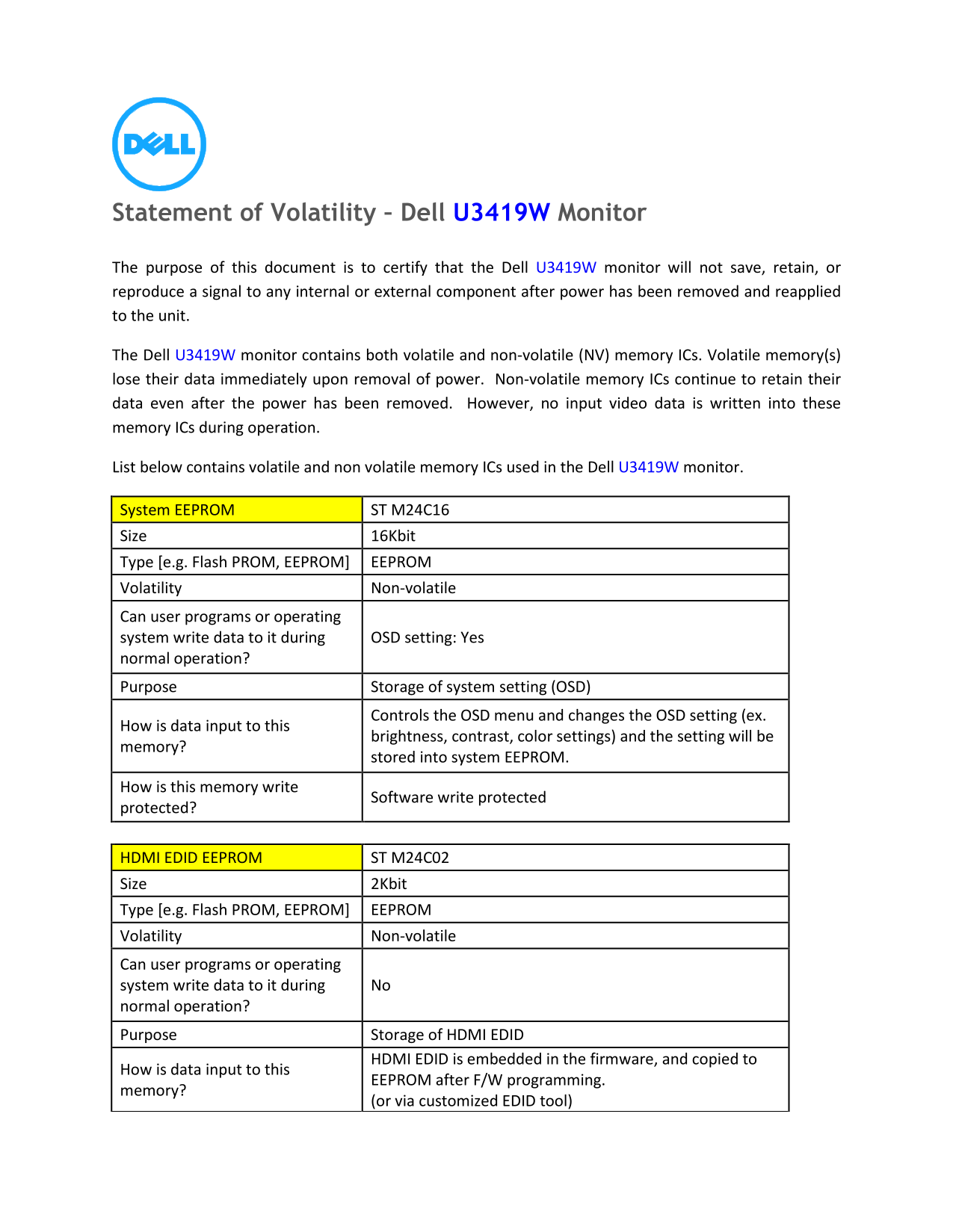

Statement of Volatility – Dell U3419W Monitor
The purpose of this document is to certify that the Dell U3419W monitor will not save, retain, or reproduce a signal to any internal or external component after power has been removed and reapplied to the unit.
The Dell U3419W monitor contains both volatile and non-volatile (NV) memory ICs. Volatile memory(s) lose their data immediately upon removal of power. Non-volatile memory ICs continue to retain their data even after the power has been removed. However, no input video data is written into these memory ICs during operation.
List below contains volatile and non volatile memory ICs used in the Dell U3419W monitor.
System EEPROM ST M24C16 Size 16Kbit Type [e.g. Flash PROM, EEPROM] EEPROM Volatility Non-volatile Can user programs or operating system write data to it during OSD setting: Yes normal operation? Purpose Storage of system setting (OSD)
Controls the OSD menu and changes the OSD setting (ex.
How is data input to this
brightness, contrast, color settings) and the setting will be
memory?
stored into system EEPROM.
How is this memory write protected? Software write protected
HDMI EDID EEPROM ST M24C02 Size 2Kbit Type [e.g. Flash PROM, EEPROM] EEPROM Volatility Non-volatile Can user programs or operating system write data to it during No normal operation? Purpose Storage of HDMI EDID
HDMI EDID is embedded in the firmware, and copied to
How is data input to this
EEPROM after F/W programming.
memory?
(or via customized EDID tool)
Page Summary Contents For Dell U3419W Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 97.71 KB |
| Published | June 23, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does the monitor save video data after power is cut?
No, the monitor will not save, retain, or reproduce a signal to any internal or external component after power is removed.
How does the monitor retain settings like brightness?
Settings are stored in the volatile memory and saved to the System EEPROM (ST M24C16) where they persist even after power loss.
What is the purpose of the HDMI EDID EEPROM?
It stores the HDMI EDID, which is embedded in the firmware and copied to the EEPROM after firmware programming.
Is the firmware stored in non-volatile memory?
Yes, the firmware is stored in the System Flash ROM (MXIC MX25L3206EM2I-12G), which is a non-volatile memory.
Is the USB Hub setting stored permanently?
Yes, the USB Hub setting is stored in the USB Hub EEPROM (ST M24C32), which is non-volatile.
