Dell U3223QZ Monitor Outline Dimensions
Summary

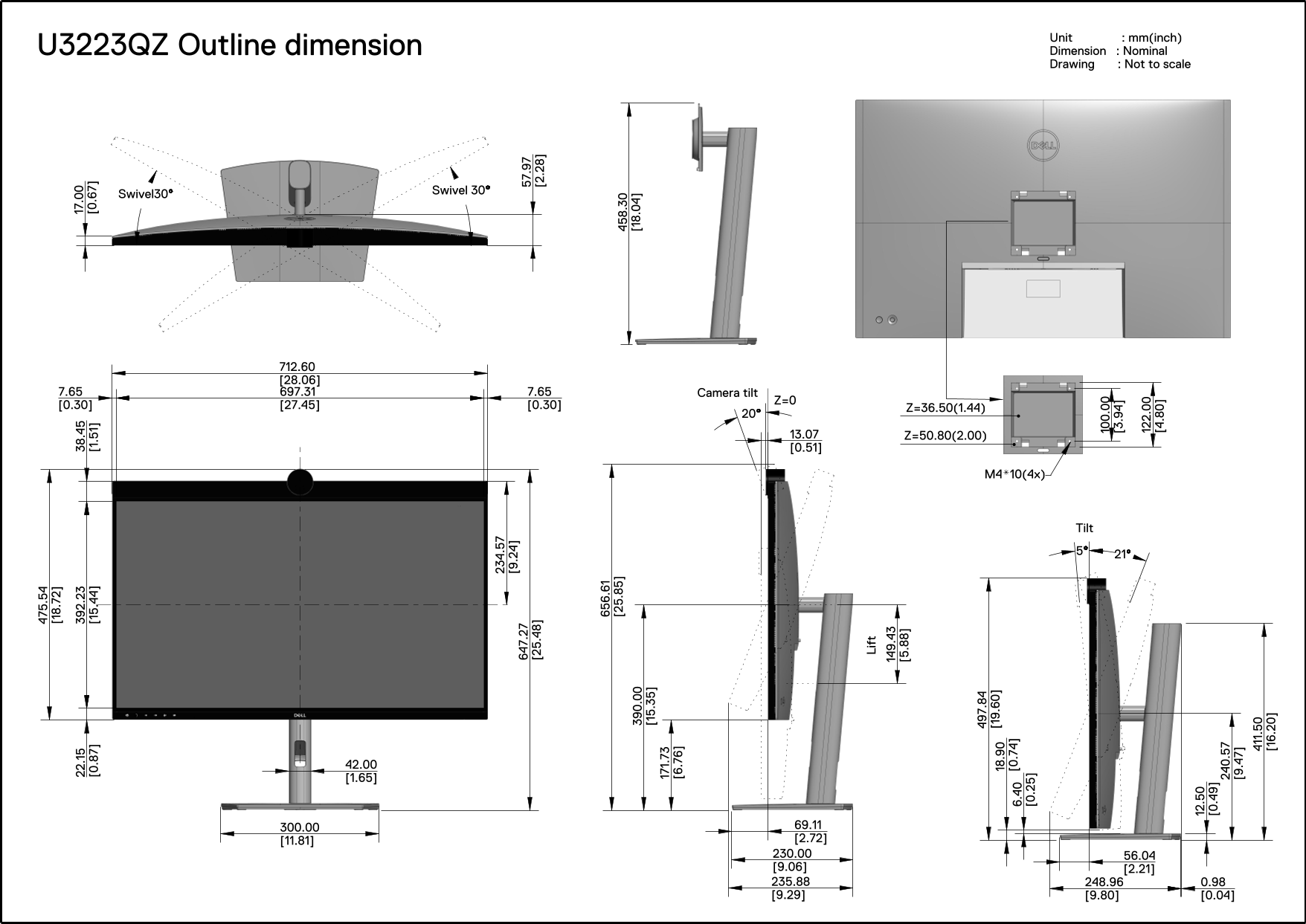

This dimension drawing provides detailed physical specifications for the Dell U3223QZ monitor, including overall dimensions, swivel range of 30 degrees in each direction, tilt adjustment from -5 to +21 degrees, and mounting hole pattern of M4 x 10mm with four mounting points. It shows the monitor stand lift range, camera assembly position and tilt, and complete dimensional measurements in both millimeters and inches for installation planning and ergonomic setup.
Page 1 Text Content
Unit : mm(inch)
U3223QZ Outline dimension Dimension : Nominal
Drawing : Not to scale
Swivel 30
Swivel30
7.65 697.31 7.65 Camera tilt
7. Tilt
Li ft
