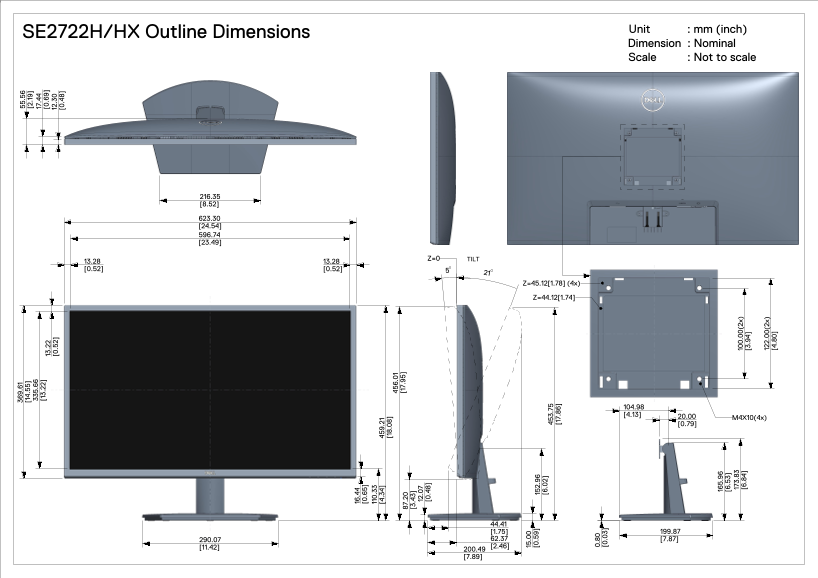

Dell SE2722H Monitor Outline Dimensions
Summary
Outline dimension specification sheet for the Dell SE2722H and SE2722HX monitors, providing nominal physical measurements in millimeters and inches. Documents the back view without stand including VESA mounting pattern (M4x10, four positions), overall chassis dimensions, tilt angle specification, and mounting hole locations. Intended for installation planning in home and office display deployments requiring precise physical envelope and wall-mounting specifications.
Page 1 Text Content
[1 4. Unit : mm (inch) Unit :mm(inch)
SE2722H/HX Outline Dimensions .6
.4 Dimension :Nominal
[1 3. Dimension : Nominal
.3 Scale :Not to Scale
Scale : Not to scale
Z=0 TILT
Page Summary Contents For Dell SE2722H Monitor Outline Dimensions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 1.08 MB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall dimensions of the SE2722H/HX unit?
The nominal outline dimensions are 216.35 mm (8.52 in) by 623.30 mm (24.54 in) and 596.74 mm (23.49 in).
How can I adjust the unit's tilt angle?
The manual specifies attachment points for multiple tilt angles: Z=0, TILT 13.28 degrees, Z=45.12 degrees, and Z=44.12 degrees.
What hardware is needed for mounting?
Mounting requires two sets of hardware: 20.00 M4X10(4x) fasteners and two pairs of brackets specified by their dimensions.
