Dell P2418HT Monitor Outline Dimensions
Summary
This document provides technical dimensional drawings and specifications for the Dell P2418HT monitor. It includes detailed outline dimensions in millimeters and inches, showing the monitor's physical size, mounting hole patterns (M4x10 screw specifications), swivel range (60 degrees left and right), tilt angles, and lift mechanism measurements. The drawing specifies nominal dimensions with tolerances and includes front, side, and top views for proper mounting and installation planning. Target users are system integrators, mounting solution providers, and IT professionals who need precise physical specifications for installing or mounting the Dell P2418HT touchscreen monitor.
Page 1 Text Content
1. (1 .6 Unit : mm (inch)

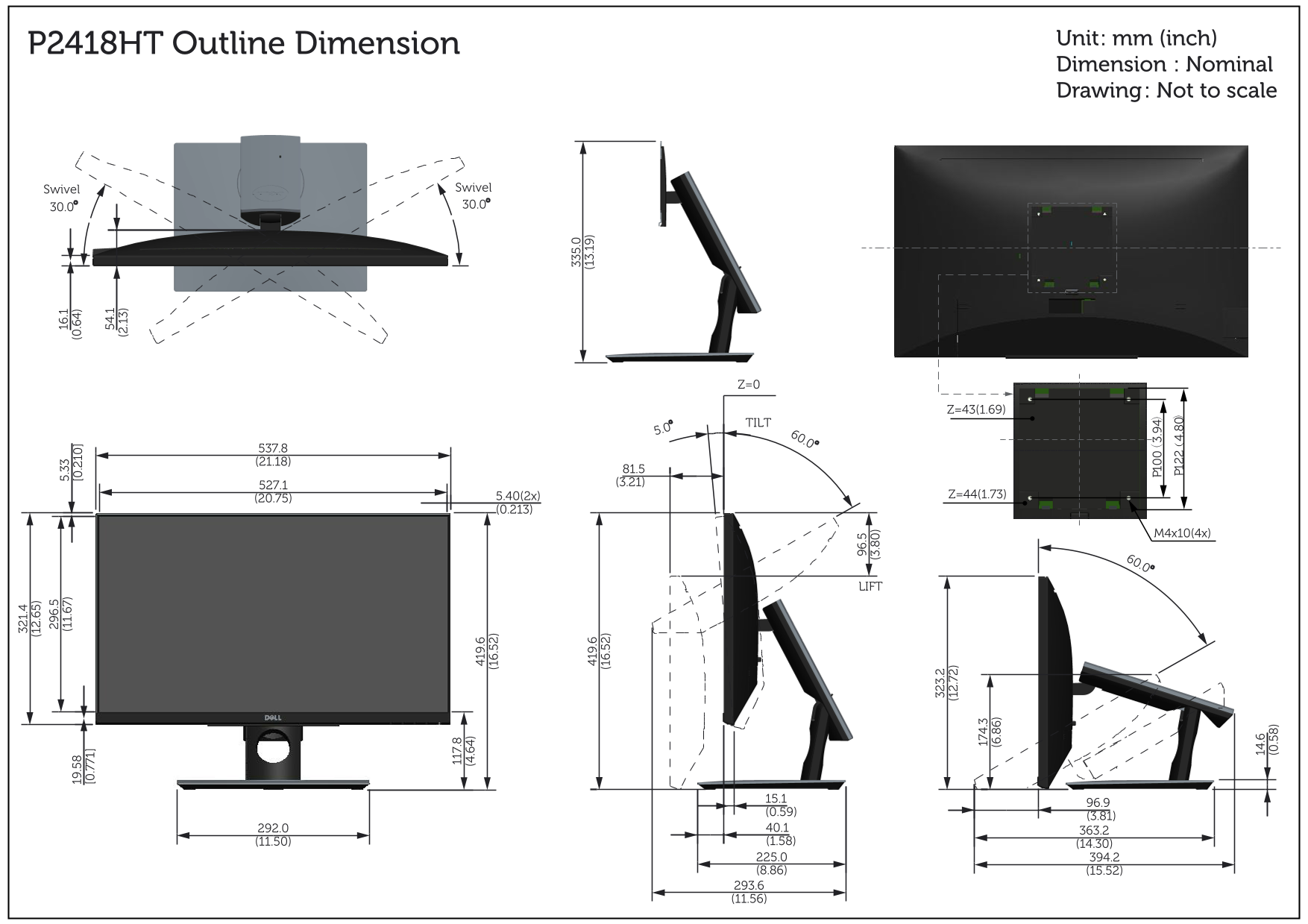

P2418HT Outline Dimension
.3 .1 Dimension : Nominal
.7 Drawing : Not to scale
Swivel Swivel 30.0 30.0
(1 3. LIFT
Page Summary Contents For Dell P2418HT Monitor Outline Dimensions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 3.73 MB |
| Published | June 26, 2026 |
