Dell U3223QE Monitor Teardown Instructions
Summary
This service manual provides detailed disassembly and assembly procedures for the Dell U3223QE monitor. It includes step-by-step instructions for removing the rear cover, disconnecting internal cables, removing the USB board, key board, and bracket chassis module. The manual covers screw specifications, torque requirements, and safety precautions for servicing the 32-inch UltraSharp monitor. Designed for certified technicians and repair professionals who need to perform hardware maintenance, component replacement, or troubleshooting on this display.
Page 1 Text Content

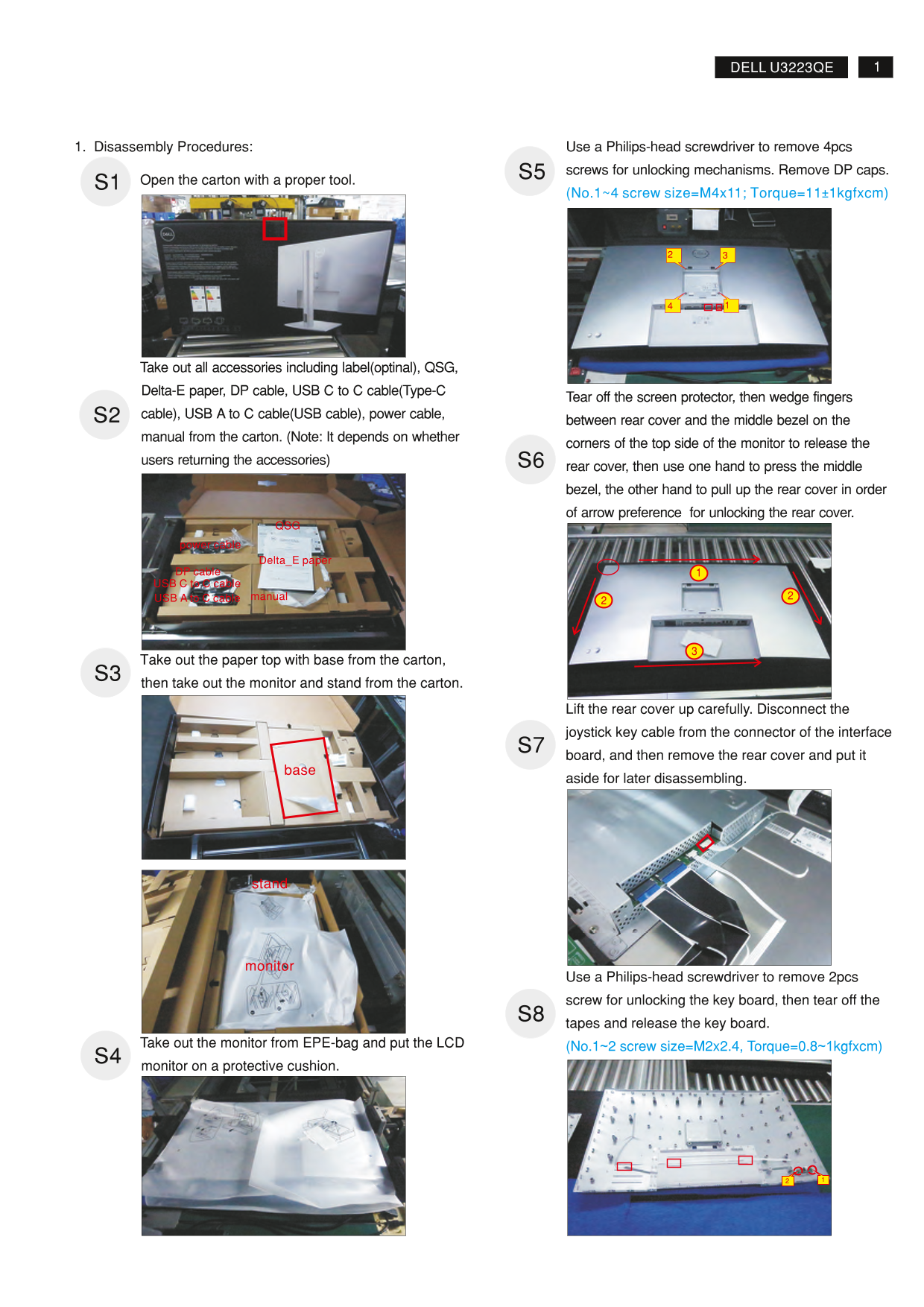

1DELL U3223QE
1. Disassembly Procedures: Use a Philips-head screwdriver to remove 4pcs
S5 screws for unlocking mechanisms. Remove DP caps.
Open the carton with a proper tool. S1
(No.1~4 screw size=M4x11; Torque=11±1kgfxcm)
Take out all accessories including label(optinal), QSG,
Delta-E paper, DP cable, USB C to C cable(Type-C
Tear off the screen protector, then wedge fingers
S2 cable), USB A to C cable(USB cable), power cable,
between rear cover and the middle bezel on the
manual from the carton. (Note: It depends on whether
corners of the top side of the monitor to release the
users returning the accessories) S6
rear cover, then use one hand to press the middle bezel, the other hand to pull up the rear cover in order of arrow preference for unlocking the rear cover.
power cable
Delta_E paper
DP cable USB C to C cable
USB A to C cable manual
Take out the paper top with base from the carton, S3 then take out the monitor and stand from the carton.
Lift the rear cover up carefully. Disconnect the joystick key cable from the connector of the interface S7 board, and then remove the rear cover and put it aside for later disassembling.
stand
monitor
Use a Philips-head screwdriver to remove 2pcs screw for unlocking the key board, then tear off the S8 tapes and release the key board.
Take out the monitor from EPE-bag and put the LCD (No.1~2 screw size=M2x2.4, Torque=0.8~1kgfxcm) S4
monitor on a protective cushion.
Page Summary Contents For Dell U3223QE Monitor Teardown Instructions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 5 |
| File Size | 1.55 MB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What tools are required for disassembly?
A Philips-head screwdriver (#1 and #2), a penknife, and a soldering iron with absorber.
How do I remove the rear cover?
Remove the DP caps and 4 M4x11 screws, then wedge fingers between the rear cover and bezel to lift it up.
What materials need separate disposal?
Electrolyte capacitors (height > 25mm), printed circuit boards (> 10 sq cm), and the LCD display (> 100 cm2).
How do I remove the panel module?
Remove 18 screws (13 of M3x5 and 5 of M3x4.5) from the middle bezel, disconnect the lamp cables, and lift the bracket chassis.
