Dell S2721HSX Monitor Teardown Instructions
Summary
Dell S2721HS/HSX monitor disassembly guide providing step-by-step teardown procedures for service technicians. Documents the complete mechanical disassembly sequence: opening the pizza-style carton and removing accessories (HDMI cable, power cable, CD, user manual, stand base, stand riser, EEI label), releasing the rear cover by wedging between rear cover and middle bezel, disconnecting panel lamp and function key cables after removing acetate tape and aluminum foils, removing 18 screws from the

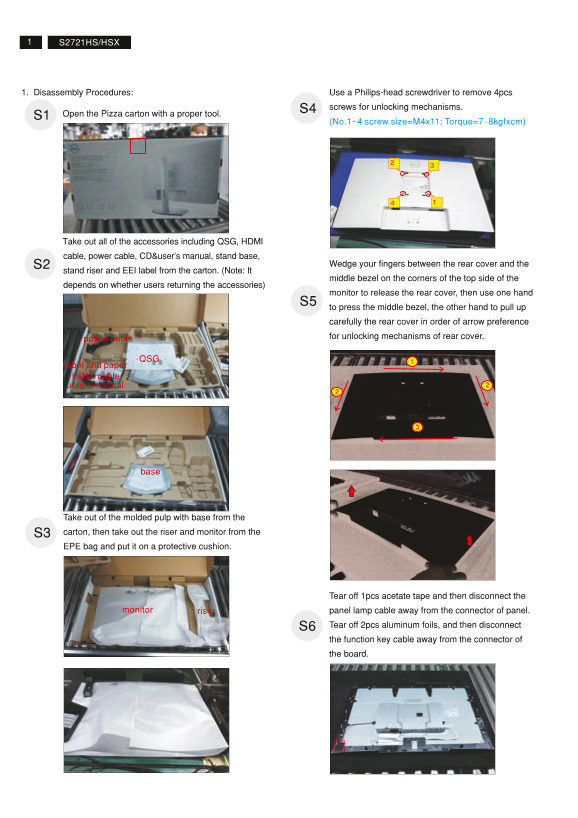

Page 1 Text Content
S2721HS/HSX
1. Disassembly Procedures: Use a Philips-head screwdriver to remove 4pcs S4S1 screws for unlocking mechanisms.
Open the Pizza carton with a proper tool.
(No.1~4 screw size=M4x11; Torque=7 8kgfxcm)~
Take out all of the QSG,accessories including HDMI
cable, power cable, CD&user’s manual, stand base,
S2 Wedge your fingers between the rear cover and the
stand riser and EEI label from the carton. (Note: It
middle bezel on the corners of the top side of the
depends on whether users returning the accessories)
monitor to release the rear cover, then use one hand S5 to press the middle bezel, the other hand to pull up carefully the rear cover in order of arrow preference for unlocking mechanisms of rear cover..
power cable
label and paper HDMI cable user’s manual
Take out of the from the molded pulp with base
S3 carton, then take out the riser and monitor from the EPE bag and put it on a protective cushion.
Tear off 1pcs acetate tape and then disconnect the
monitor riser panel lamp cable away from the connector of panel.
S6 Tear off 2pcs aluminum foils, and then disconnect the function key cable away from the connector of the board.
Page Summary Contents For Dell S2721HSX Monitor Teardown Instructions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 5 |
| File Size | 1.75 MB |
| Published | May 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I release the rear cover of the monitor?
Wedge fingers between the rear cover and middle bezel on the corners of the top side, press the middle bezel, and pull up carefully following the arrow preference.
What tools are needed for disassembly?
A Philips-head screwdriver (#1 and #2), a penknife, and a soldering iron with absorber are required.
How must electronic components be disposed of?
Used items like PCBs, capacitors, toner/ink components, and external cables must be disposed of separately according to EU directives (WEEE).
What caution should I take when removing caps?
When removing bulk capacitors, ensure the cutting path is within the glue and do not touch the capacitor or PCB. Electrolyte capacitors are also mentioned for special handling.
