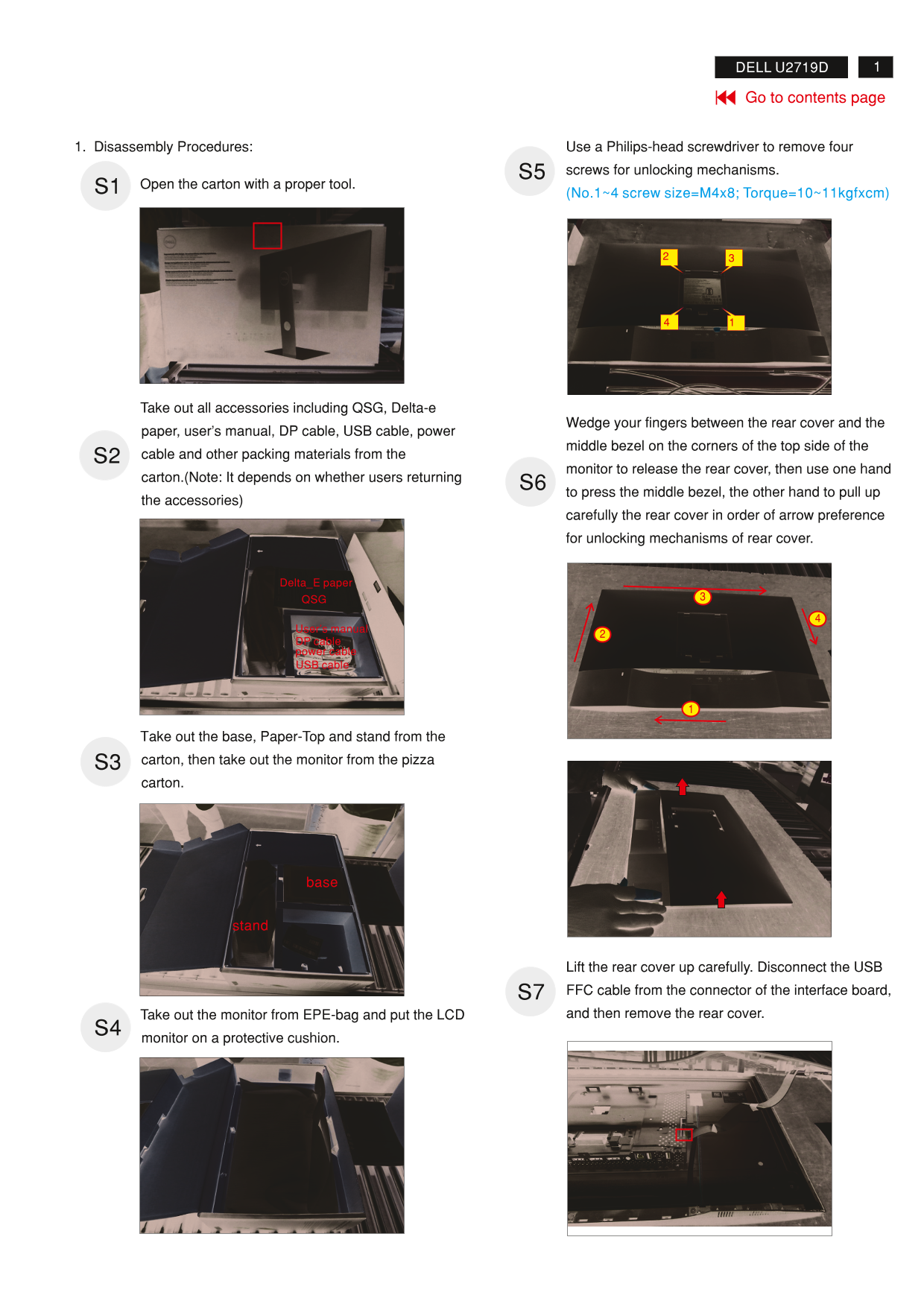

DELL U2719D
Go to contents page
1. Disassembly Procedures: Use a Philips-head screwdriver to remove four S5 screws for unlocking mechanisms.
Open the carton with a proper tool. S1
(No.1~4 screw size=M4x8; Torque=10~11kgfxcm)
Take out all accessories including QSG, Delta-e
Wedge your fingers between the rear cover and the
paper, user’s manual, DP cable, USB cable, power
middle bezel on the corners of the top side of the
S2 cable and other packing materials from the
monitor to release the rear cover, then use one hand
carton.(Note: It depends on whether users returning
S6 to press the middle bezel, the other hand to pull up
the accessories)
carefully the rear cover in order of arrow preference for unlocking mechanisms of rear cover.
Delta_E paper QSG
User’s manual DP cable power cable USB cable
Take out the base, Paper-Top and stand from the S3 carton, then take out the monitor from the pizza carton.
stand
Lift the rear cover up carefully. Disconnect the USB S7 FFC cable from the connector of the interface board, Take out the monitor from EPE-bag and put the LCD and then remove the rear cover.
S4 monitor on a protective cushion.
