Dell U2422H Statement of Volatility
Summary
The Statement of Volatility for Dell U2422H Monitor certifies that no input video data is saved, retained, or reproduced after power removal. The monitor contains non-volatile memory ICs including system EEPROM (256Kbit for OSD settings), HDMI EDID EEPROM (2Kbit), system flash (32Mbit for firmware), and USB hub flash (4Mbit). Volatile components like DDR4 2667MHz memory lose data immediately upon power loss, while secondary power loss from coin-cell battery removal affects system configuration a
Page 1 Text Content

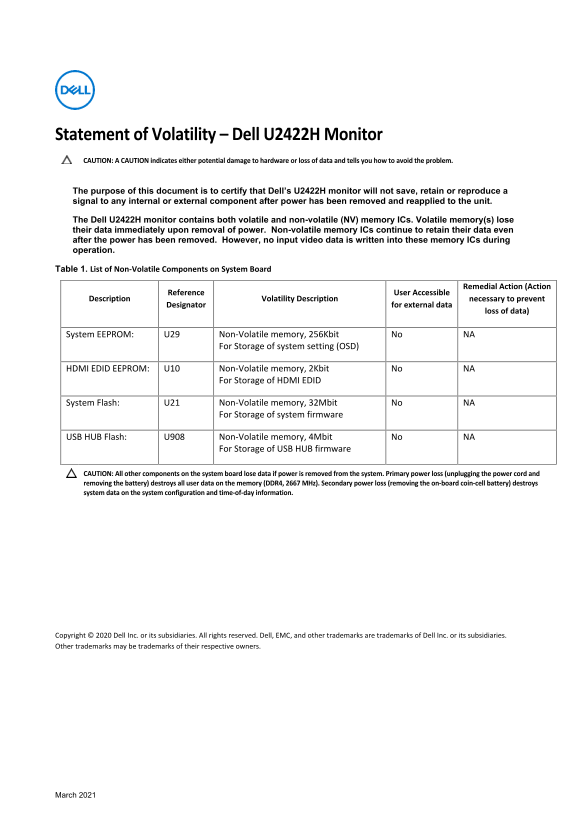

Statement of Volatility – Dell U2422H Monitor CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
The purpose of this document is to certify that Dell’s U2422H monitor will not save, retain or reproduce a signal to any internal or external component after power has been removed and reapplied to the unit.
The Dell U2422H monitor contains both volatile and non-volatile (NV) memory ICs. Volatile memory(s) lose their data immediately upon removal of power. Non-volatile memory ICs continue to retain their data even after the power has been removed. However, no input video data is written into these memory ICs during operation.
Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference User Accessible
Description Volatility Description necessary to prevent
Designator for external data
loss of data)
System EEPROM: U29 Non-Volatile memory, 256Kbit No NA
For Storage of system setting (OSD)
HDMI EDID EEPROM: U10 Non-Volatile memory, 2Kbit No NA
For Storage of HDMI EDID
System Flash: U21 Non-Volatile memory, 32Mbit No NA
For Storage of system firmware
USB HUB Flash: U908 Non-Volatile memory, 4Mbit No NA
For Storage of USB HUB firmware
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR4, 2667 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
Copyright © 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
March 2021
Page Summary Contents For Dell U2422H Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 167.00 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of volatile memory in this monitor?
Volatile memory loses its data immediately when power is removed.
Which type of memory retains data after power loss?
Non-volatile (NV) memory ICs retain their data even after power has been removed.
What happens if I unplug the power cord from the monitor?
Primary power loss destroys all user data on the system memory (DDR4, 2667 MHz).
Which component stores the On-Screen Display settings?
The System EEPROM (U29) stores system setting data for the OSD.
