Dell U2421HE Monitor Teardown Instructions
Summary
This technical service manual details step-by-step disassembly instructions for the Dell U2421HE monitor, including screw specifications, torque values, and component removal sequences. It covers rear cover removal, panel disassembly, and internal component access procedures. Target users are certified repair technicians and service engineers performing hardware maintenance and repairs on Dell U2421HE displays.
Page 1 Text Content

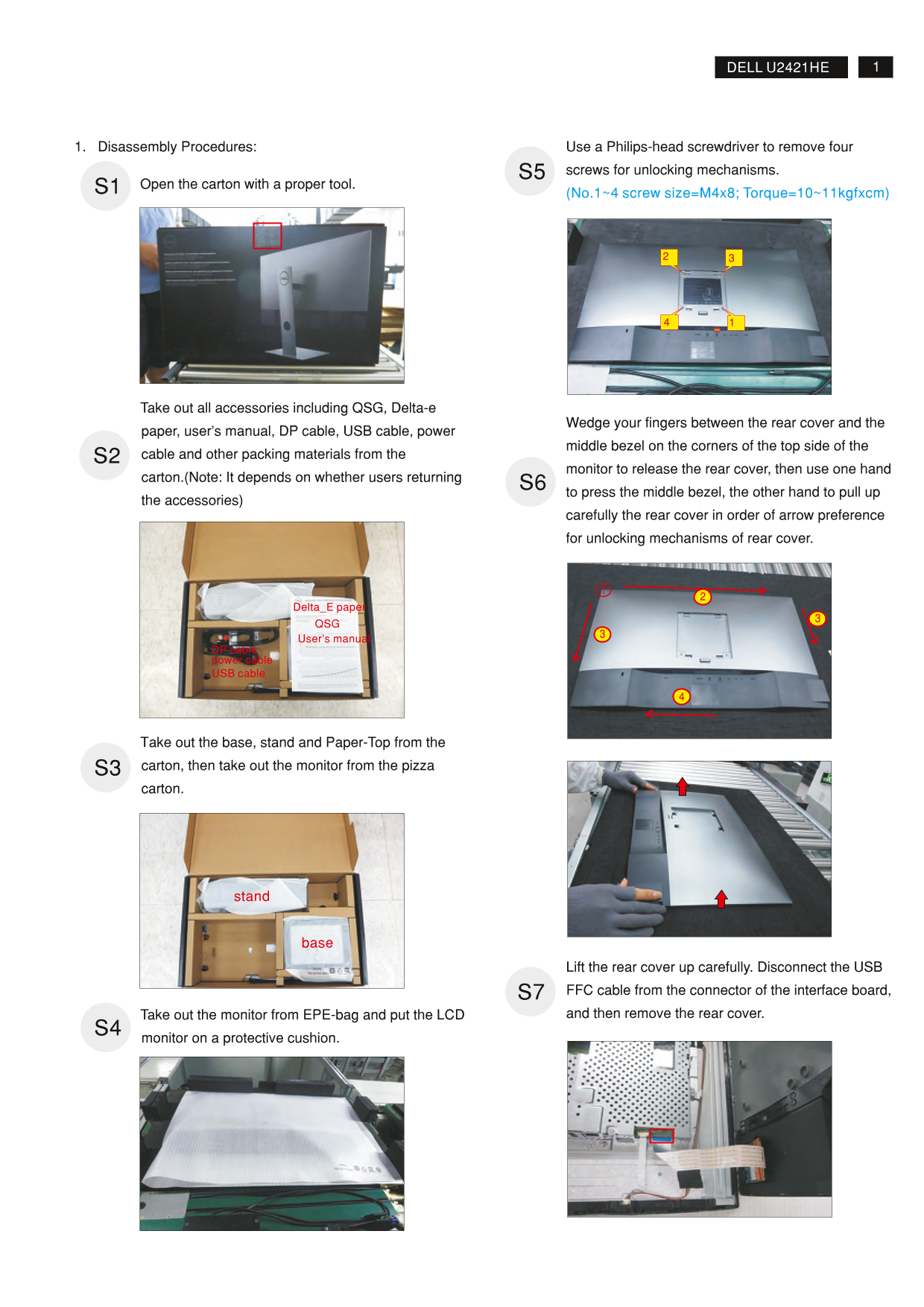

1DELL U2421HE
1. Disassembly Procedures: Use a Philips-head screwdriver to remove four S5 screws for unlocking mechanisms.
Open the carton with a proper tool. S1
(No.1~4 screw size=M4x8; Torque=10~11kgfxcm)
Take out all accessories including QSG, Delta-e
Wedge your fingers between the rear cover and the
paper, user’s manual, DP cable, USB cable, power
middle bezel on the corners of the top side of the
S2 cable and other packing materials from the
monitor to release the rear cover, then use one hand
carton.(Note: It depends on whether users returning
S6 to press the middle bezel, the other hand to pull up
the accessories)
carefully the rear cover in order of arrow preference for unlocking mechanisms of rear cover.
Delta_E paper QSG User’s manual
DP cable power cable USB cable
Take out the base, stand and from the Paper-Top
S3 carton, then take out the monitor from the pizza carton.
stand
Lift the rear cover up carefully. Disconnect the USB S7 FFC cable from the connector of the interface board, Take out the monitor from EPE-bag and put the LCD and then remove the rear cover.
S4 monitor on a protective cushion.
Page Summary Contents For Dell U2421HE Monitor Teardown Instructions
Manual Details
| Brand | Dell |
|---|---|
| Pages | 5 |
| File Size | 1.39 MB |
| Published | June 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What tools are needed for disassembly?
You will need a Phillips-head screwdriver (#1 and #2), a penknife, and soldering iron with an absorber.
How do I remove the rear cover of the monitor?
Use proper tools to release corner material between the rear cover and the paper/user's manual, then carefully pull up following the indicated arrow sequence.
Can I dismantle the function key board?
Yes. Tear off the mylar tape on the function key board, and use a Phillips-head screwdriver to tighten three screws for locking it with the front bezel.
